UGC DOR5984976
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$120.00 CAD - $120.00 CAD
$120.00 CAD
$120.00 CAD - $120.00 CAD
$120.00 CAD

Vendu en lots de : 1

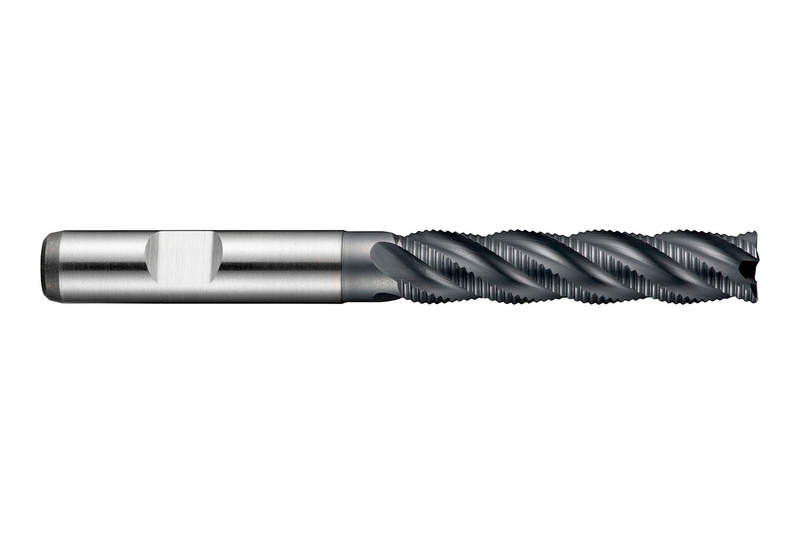

Fraise trois tailles à grande longueur à ébaucher avec profil à pas fin asymétrique HRA, diamètre 8mm avec longueur de coupe 38mm et longueur totale 88mm, selon la norme DIN 844 L avec queue Weldon 10mm, en HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 35° et angle de dépouille 12° pour surfaçage-dressage et rainurage dans les aciers non alliés, alliés et à outils, aciers inoxydables, fontes, cuivre ou alliages de cuivre et superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C4928.0
GradeALCRONA
Product Number5984976
Product FamilyC492

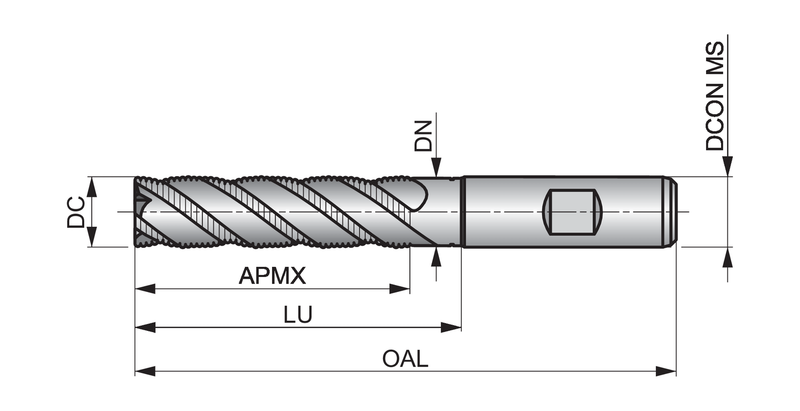

Insert Geometry
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)35.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number388891
EAN7320760388891
File Type Download
C4928.0 — Line Drawing PDF Download
