UGC DOR5984989
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$58.14 CAD - $58.14 CAD
$58.14 CAD
$58.14 CAD - $58.14 CAD
$58.14 CAD

Vendu en lots de : 1

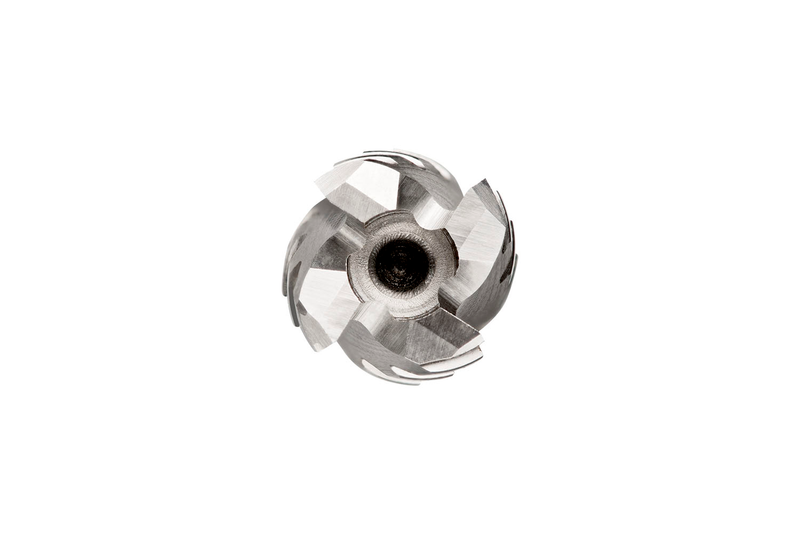

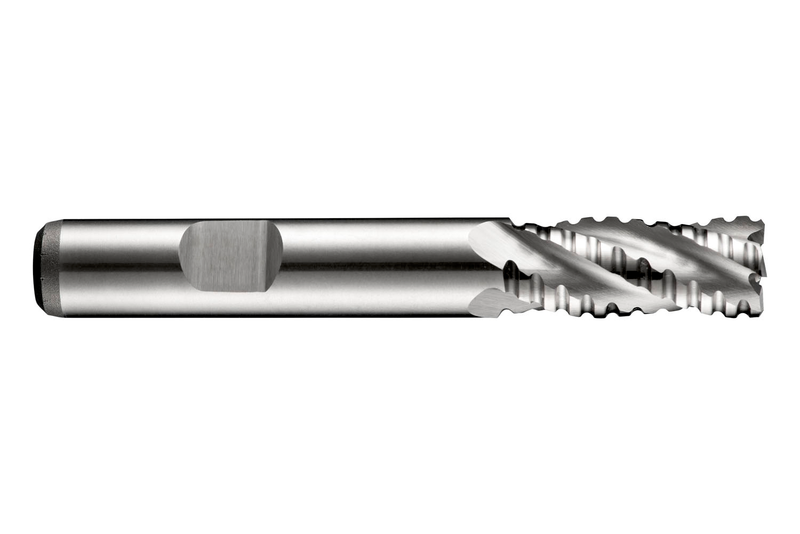

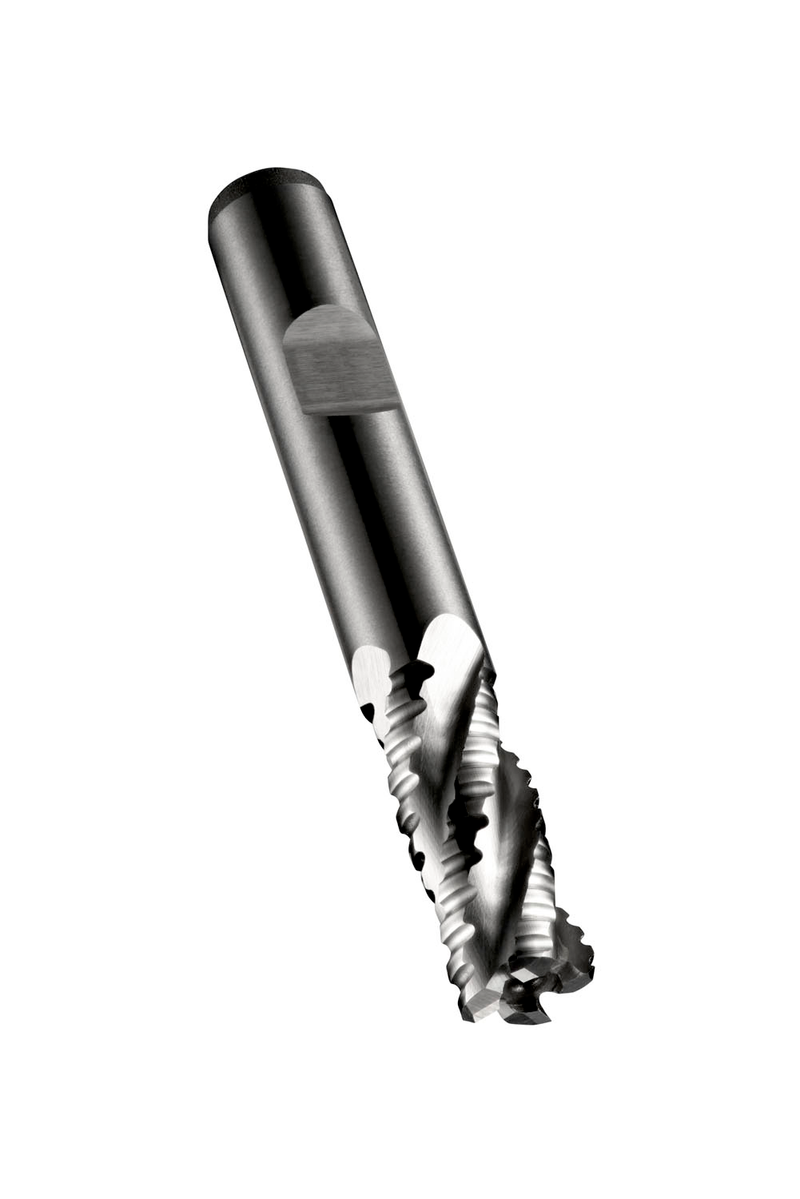

Fraise d'ébauche courte à 4 dents avec profil grossier plat NF, diamètre 8 mm, longueur de coupe 19 mm et longueur totale 69 mm, selon la norme DIN 844 K, avec une queue Weldon de 10 mm, en HSS-E au cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage d'épaulement, le fraisage de rainure et le fraisage en plongée dans l'acier de décolletage, l'acier au carbone et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C4008.0
GradeLumineux
Product Number5984989
Product FamilyC400
Insert Geometry

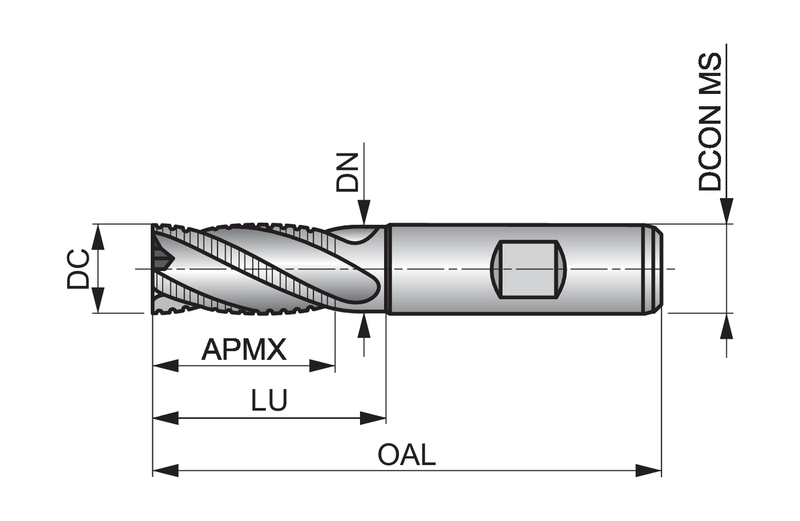

Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.7165"
Overall Length — mm (OAL)69.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)30.0°
Tool Information
ShankQueue à attachement Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number68106
EAN7320760068106
File Type Download
C4008.0 — Line Drawing PDF Download
