UGC DOR5984992
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.41 CAD - $72.41 CAD
$72.41 CAD
$72.41 CAD - $72.41 CAD
$72.41 CAD

Vendu en lots de : 1

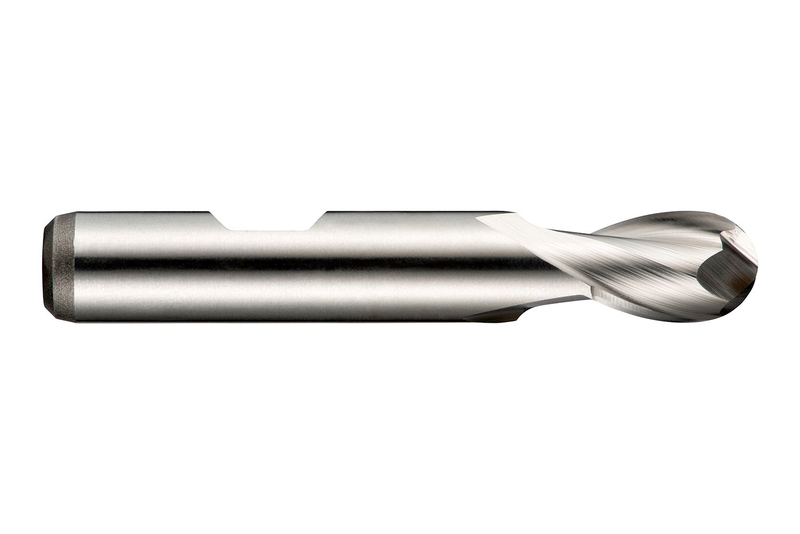

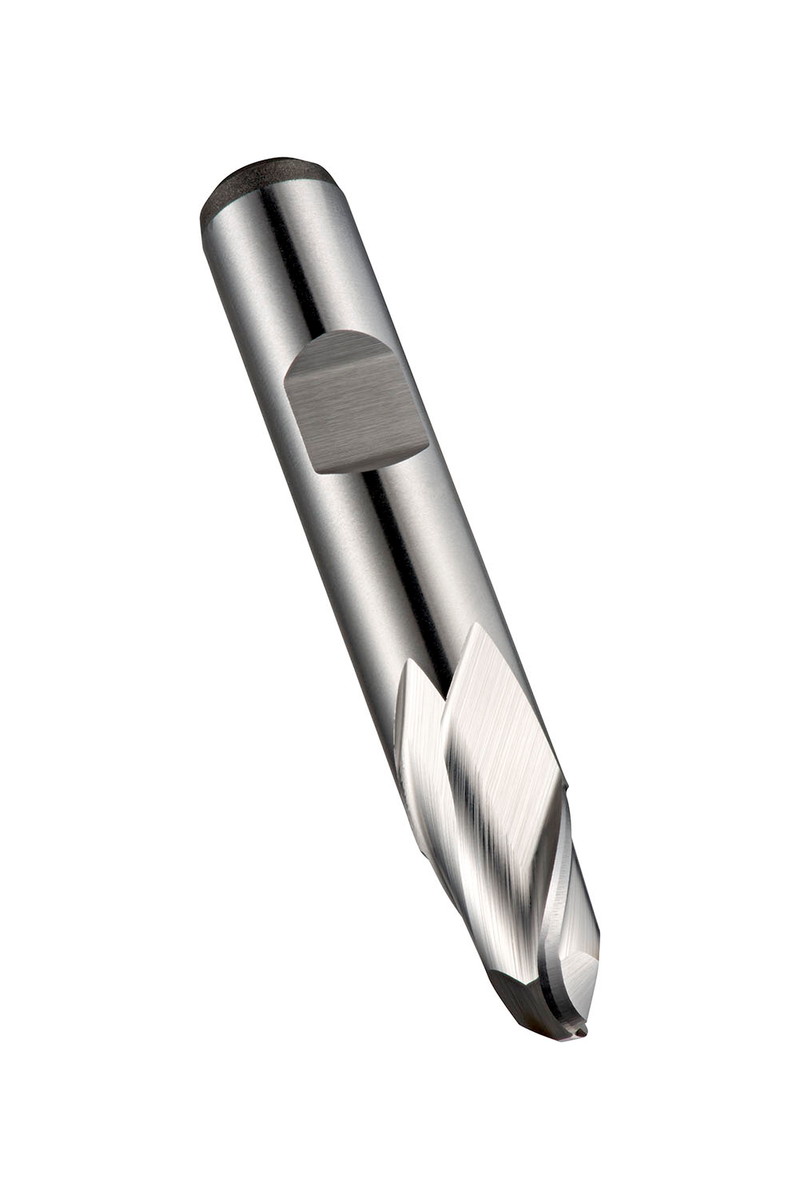

Fraise à surfacer-dresser en bout à queue sphérique, série extra courte avec 2 dents, diamètre 10mm avec 13mm de longueur de coupe, 63mm de longueur totale et rayon de profil complet de 5mm, selon la norme DIN 327 D avec une queue Weldon de 10mm, en HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de reproduction dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50010.0
GradeLumineux
Product Number5984992
Product FamilyC500
Insert Geometry
Corner Radius — in (RE)0.1969"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.4803"
Overall Length — mm (OAL)63.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue cylindrique Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73148
EAN7320760073148
File Type Download

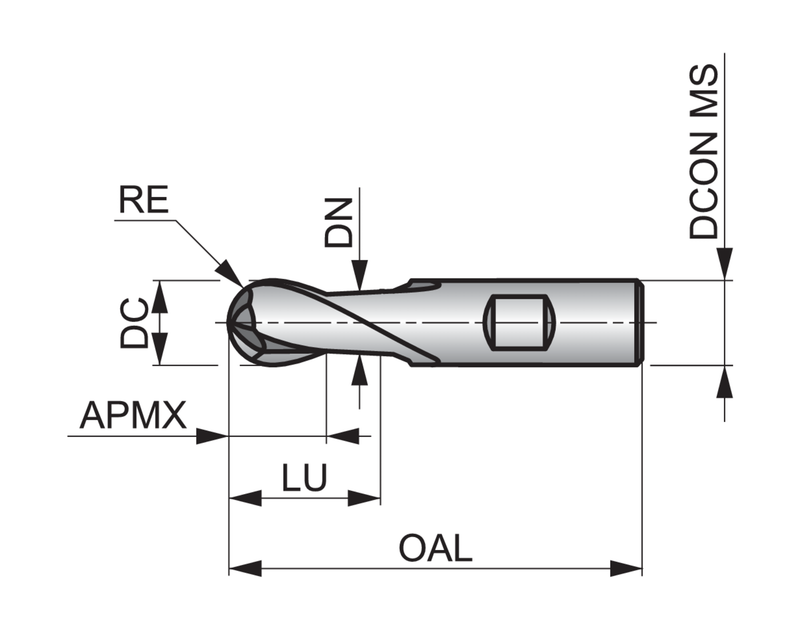

C50010.0 — Line Drawing PDF Download
