UGC DOR5985013
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$125.27 CAD - $125.27 CAD
$125.27 CAD
$125.27 CAD - $125.27 CAD
$125.27 CAD

Vendu en lots de : 1

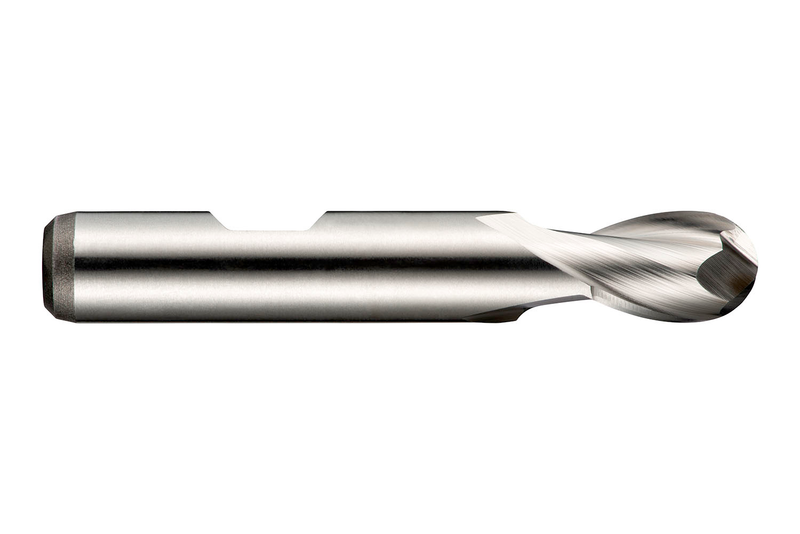

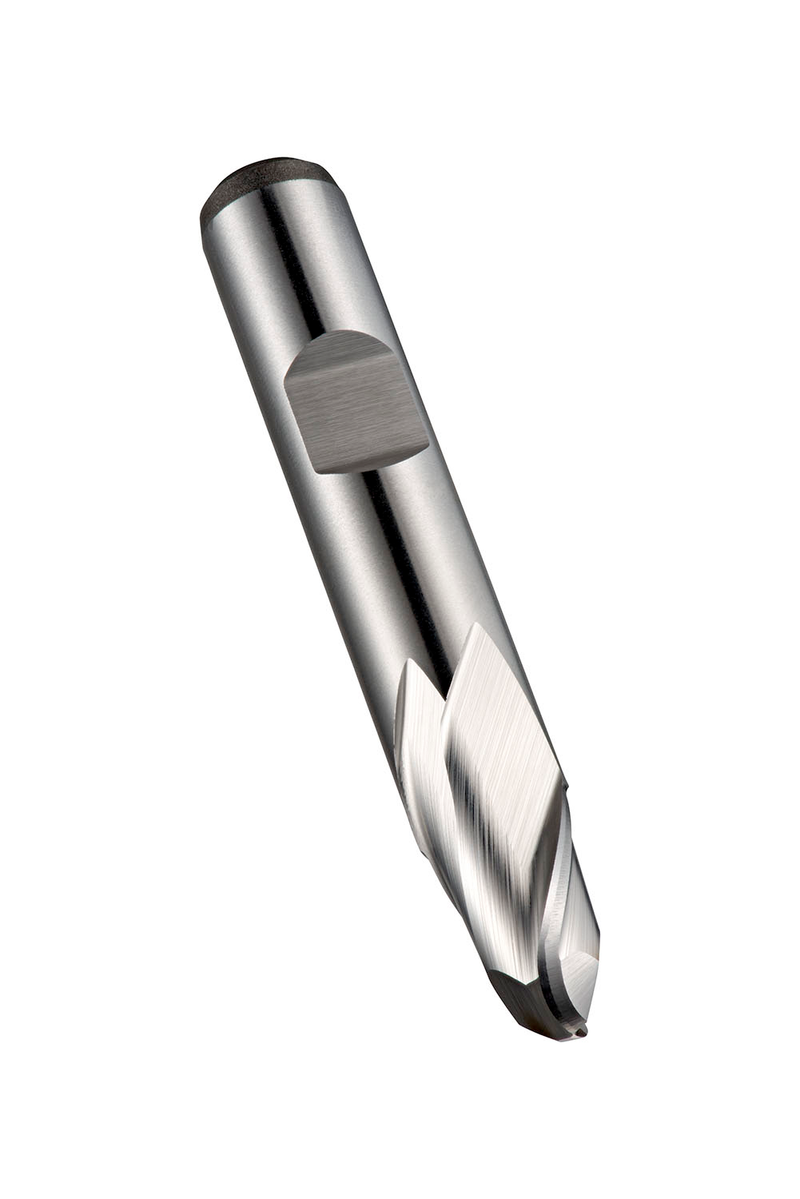

Fraise boule extra courte à 2 dents, diamètre 14 mm avec une longueur de coupe de 16 mm, une longueur totale de 73 mm, un dégagement de 27,5 mm avec un rayon de profil complet de 7 mm, conforme à la norme DIN 327 D avec une queue Weldon de 12 mm, en HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de coupe de 12° pour le fraisage de reproduction dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50014.0
GradeLumineux
Product Number5985013
Product FamilyC500

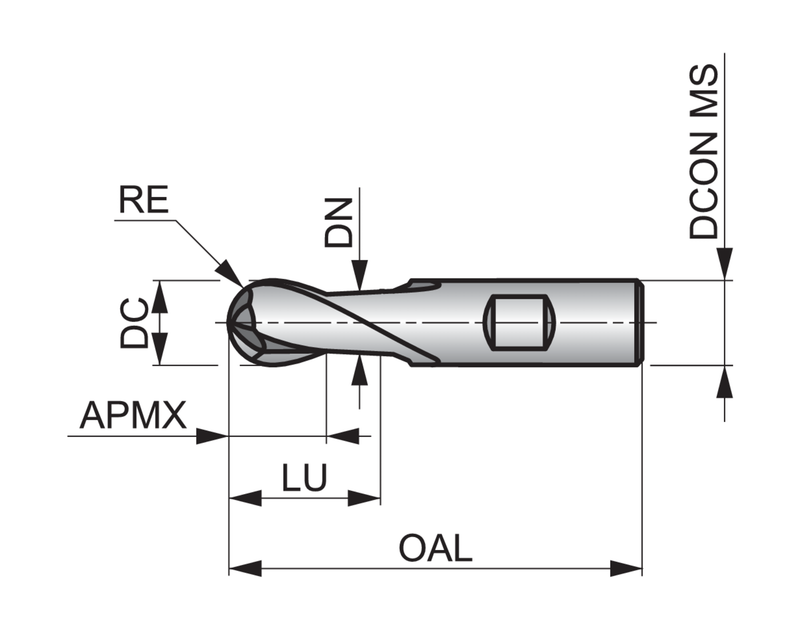

Insert Geometry
Corner Radius — in (RE)0.2756"
Corner Radius — mm (RE)7 mm
Depth of Cut Max — in (APMX)0.6299"
Depth of Cut Max — mm (APMX)16.0 mm
Dimensions
Cutting Diameter — in (DC)0.5512"
Cutting Diameter — mm (DC)14.0 mm
Overall Length — in (OAL)2.874"
Overall Length — mm (OAL)73.0 mm
Usable Length — mm (LU)27.5 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73162
EAN7320760073162
File Type Download
C50014.0 — Line Drawing PDF Download
