UGC DOR5985028
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$151.17 CAD - $151.17 CAD
$151.17 CAD
$151.17 CAD - $151.17 CAD
$151.17 CAD

Vendu en lots de : 1

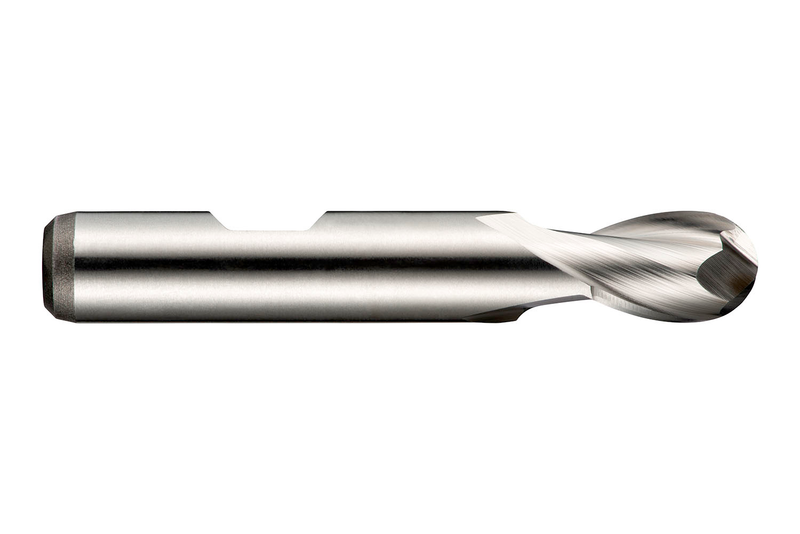

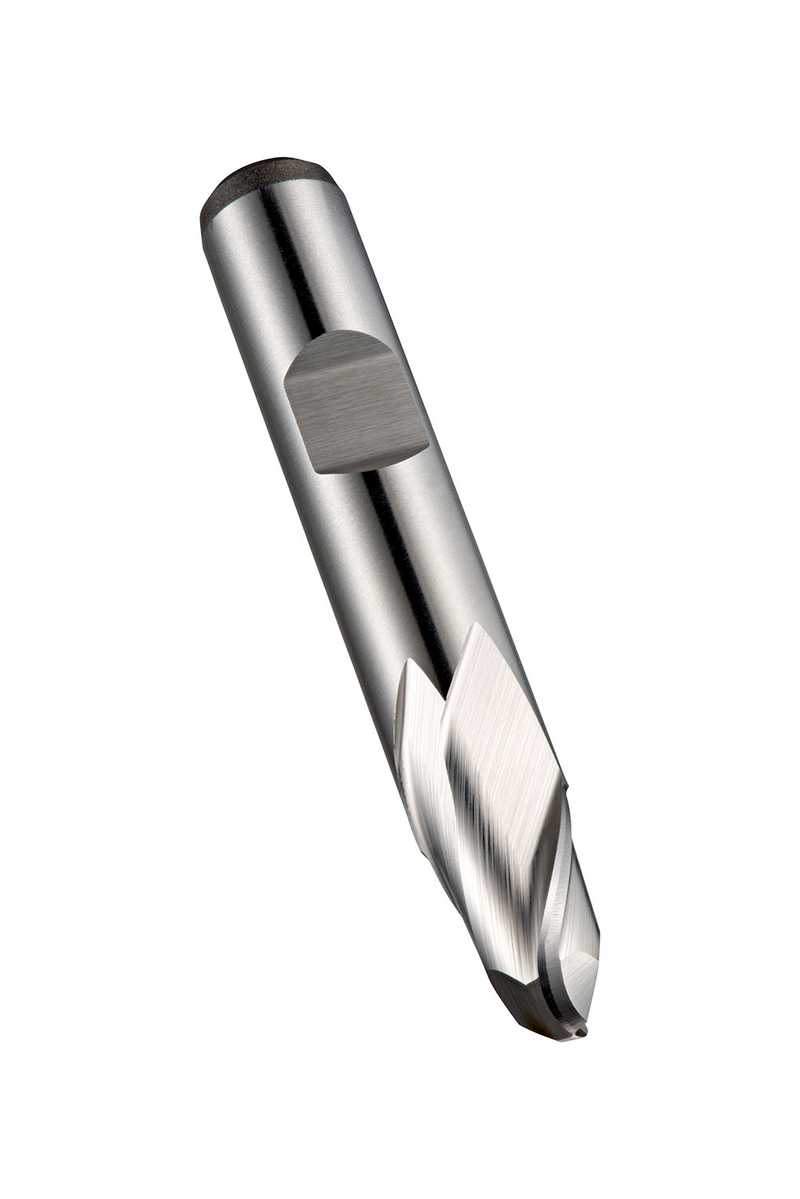

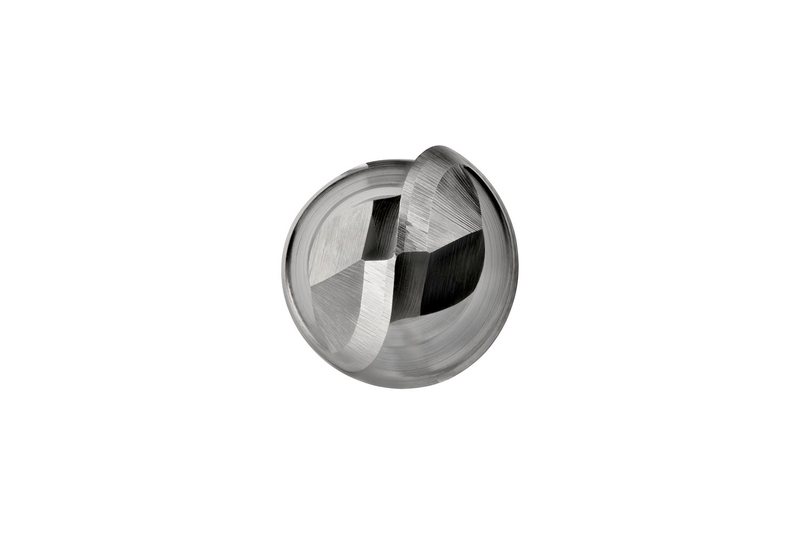

Fraise à rayon en bout à queue courte et à 2 dents, diamètre 16mm avec 19mm de longueur de coupe, 79mm de longueur totale, 30.5mm d'allongement avec dégagement de col et rayon de profil complet de 8mm, selon la norme DIN 327 D avec une queue Weldon de 16mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de coupe de 12° pour le fraisage de copie dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50016.0
GradeLumineux
Product Number5985028
Product FamilyC500
Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm

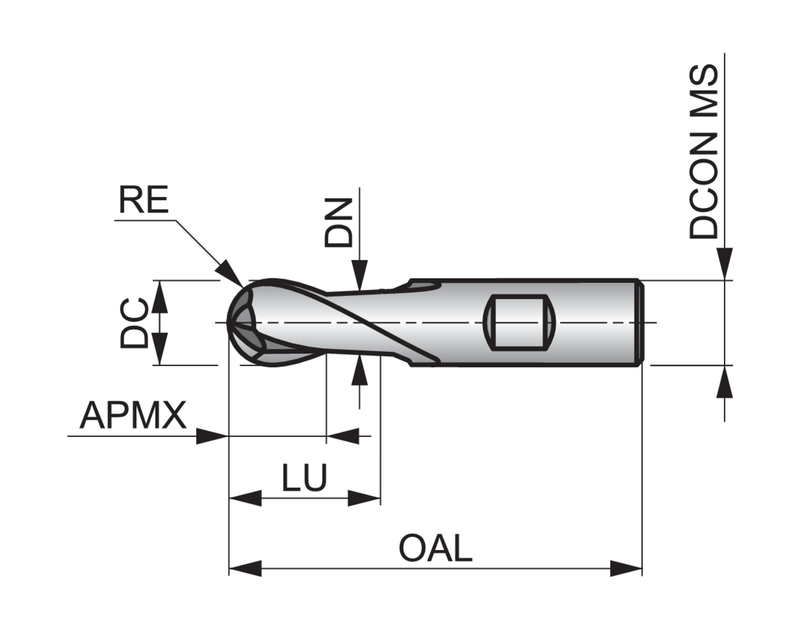

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Usable Length — mm (LU)30.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73179
EAN7320760073179
File Type Download
C50016.0 — Line Drawing PDF Download
