UGC DOR5985033
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$170.20 CAD - $170.20 CAD
$170.20 CAD
$170.20 CAD - $170.20 CAD
$170.20 CAD

Vendu en lots de : 1

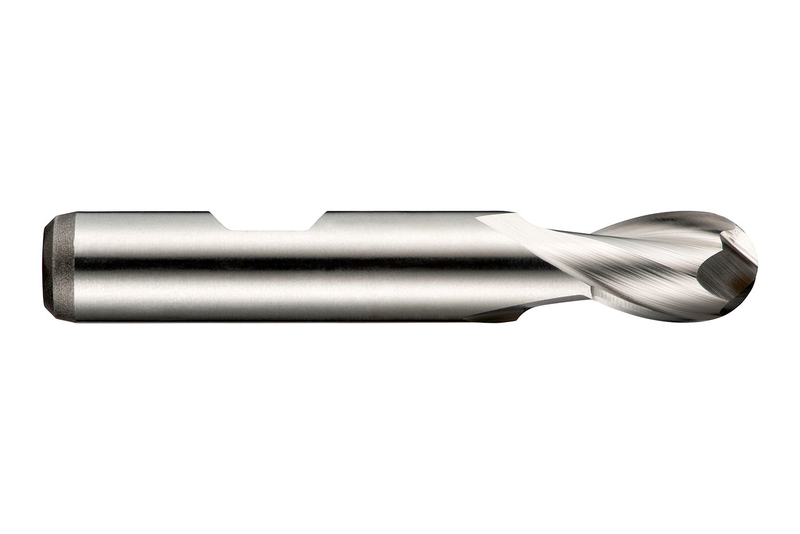

Fraise boule extra-courte à 2 dents, diamètre 18mm, longueur de coupe 19mm, longueur totale 79mm, portée 30.5mm avec dégagement de col et rayon de profil plein de 9mm, selon la norme DIN 327 D avec une queue Weldon de 16mm, en HSS-E à base de cobalt avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage en plongée dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50018.0
GradeLumineux
Product Number5985033
Product FamilyC500

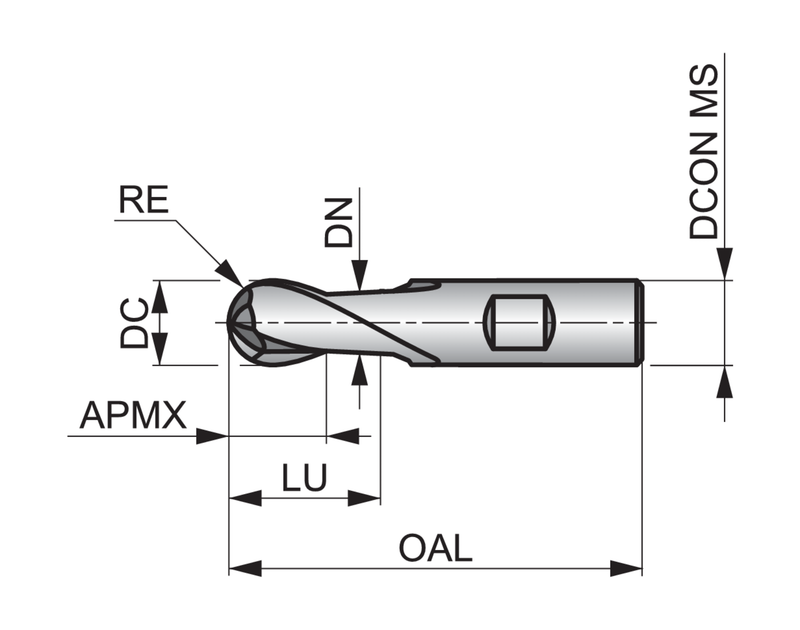

Insert Geometry
Corner Radius — in (RE)0.3543"
Corner Radius — mm (RE)9 mm
Depth of Cut Max — in (APMX)0.748"
Depth of Cut Max — mm (APMX)19.0 mm
Dimensions
Cutting Diameter — in (DC)0.7087"
Cutting Diameter — mm (DC)18.0 mm
Overall Length — in (OAL)3.1102"
Overall Length — mm (OAL)79.0 mm
Usable Length — mm (LU)30.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73186
EAN7320760073186
File Type Download
C50018.0 — Line Drawing PDF Download
