UGC DOR5985037
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$64.49 CAD - $64.49 CAD
$64.49 CAD
$64.49 CAD - $64.49 CAD
$64.49 CAD

Vendu en lots de : 1

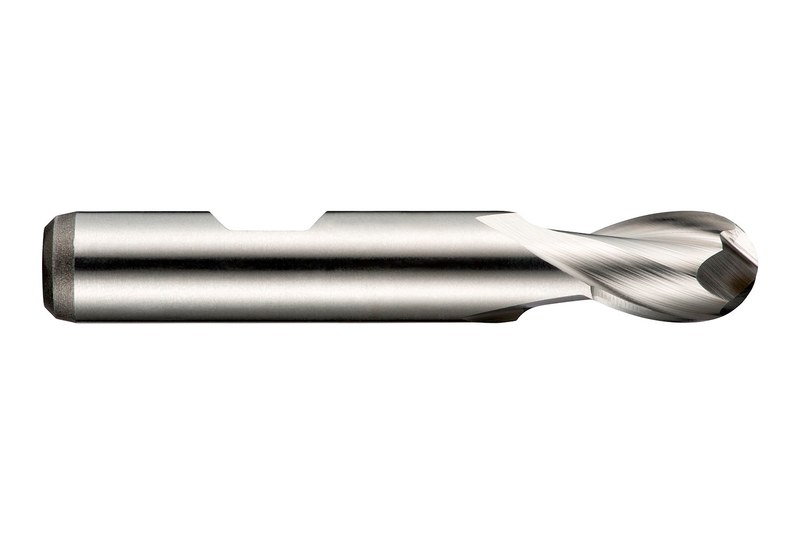

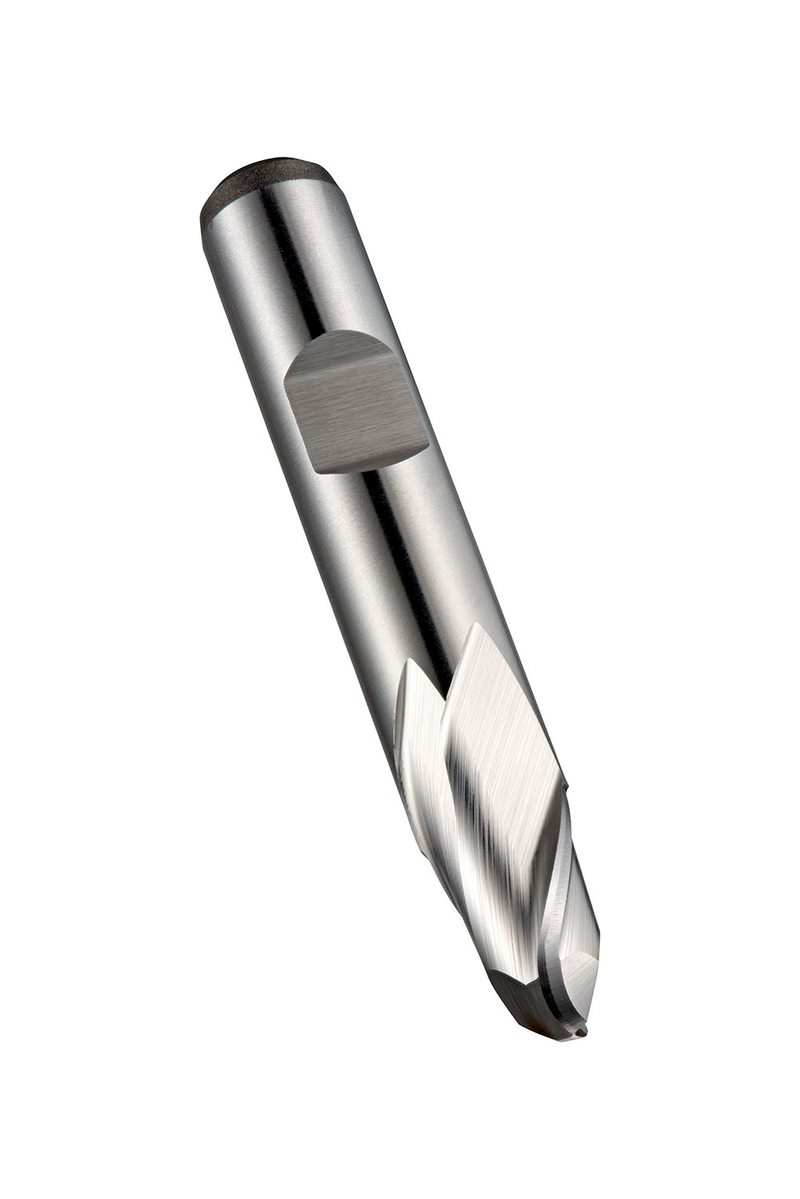

Fraise boule extra-courte 2 dents, diamètre 2 mm, longueur de coupe 4 mm, longueur totale 48 mm et rayon de profil complet 1 mm, conforme à la norme DIN 327 D avec queue Weldon 6 mm, en HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12° pour copiage dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5002.0
GradeLumineux
Product Number5985037
Product FamilyC500
Insert Geometry
Corner Radius — in (RE)0.0394"
Corner Radius — mm (RE)1 mm
Depth of Cut Max — in (APMX)0.1575"
Depth of Cut Max — mm (APMX)4.0 mm

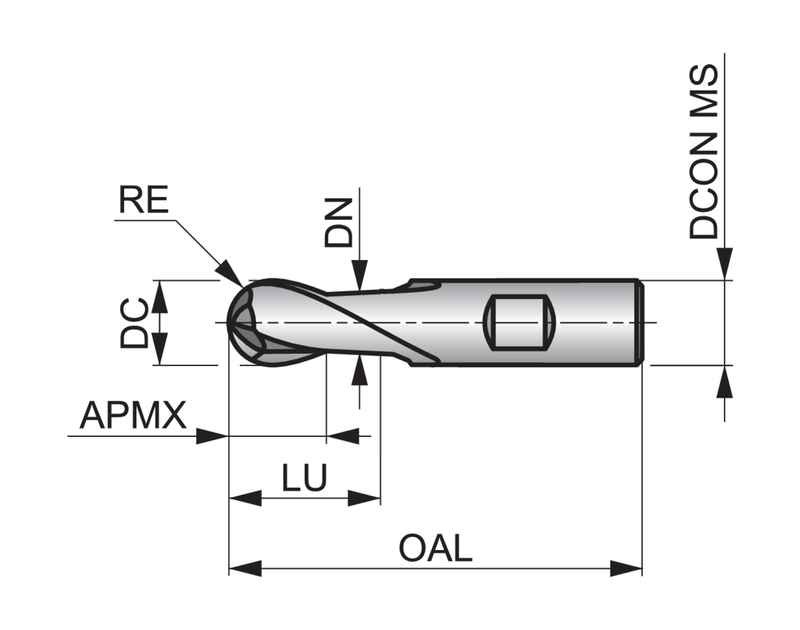

Dimensions
Cutting Diameter — in (DC)0.0787"
Cutting Diameter — mm (DC)2.0 mm
Overall Length — in (OAL)1.8898"
Overall Length — mm (OAL)48.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73193
EAN7320760073193
File Type Download
C5002.0 — Line Drawing PDF Download
