UGC DOR5985042
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$197.69 CAD - $197.69 CAD
$197.69 CAD
$197.69 CAD - $197.69 CAD
$197.69 CAD

Vendu en lots de : 1

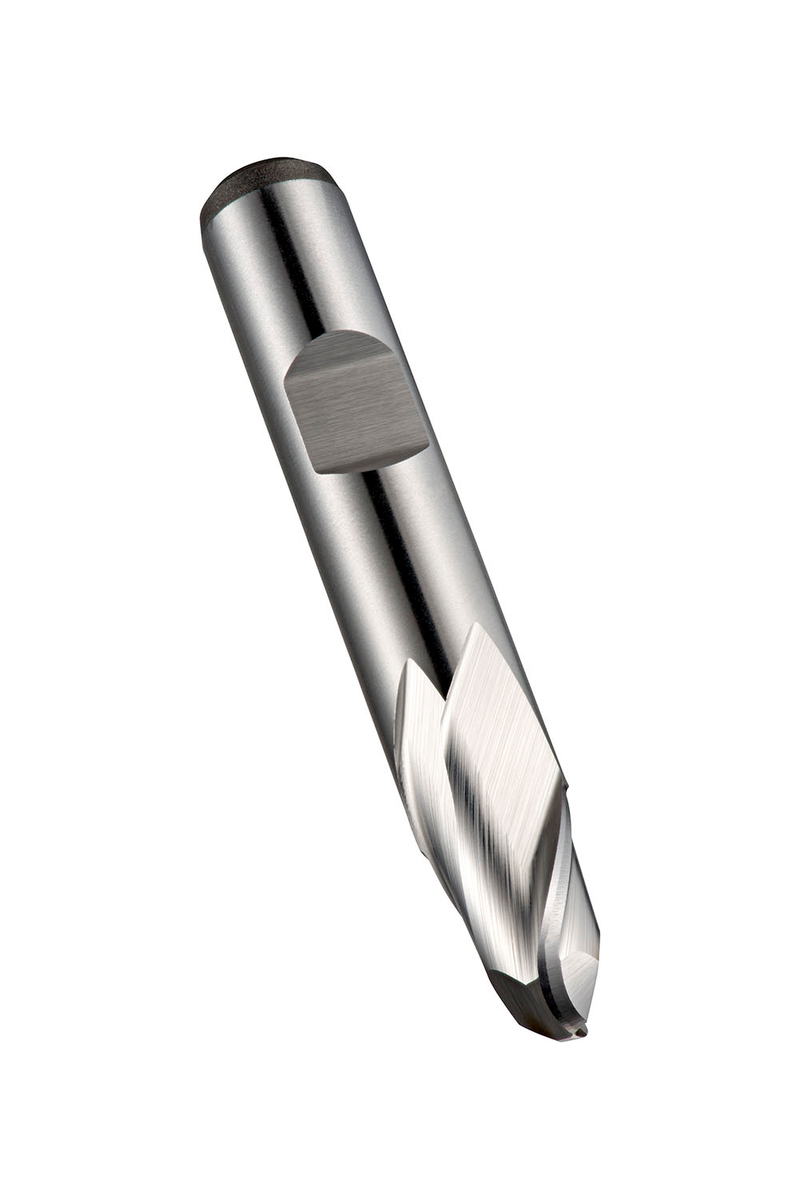

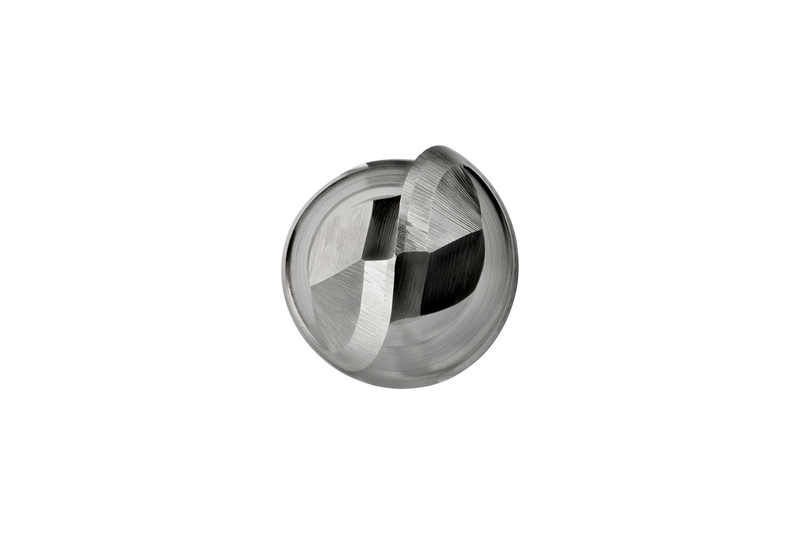

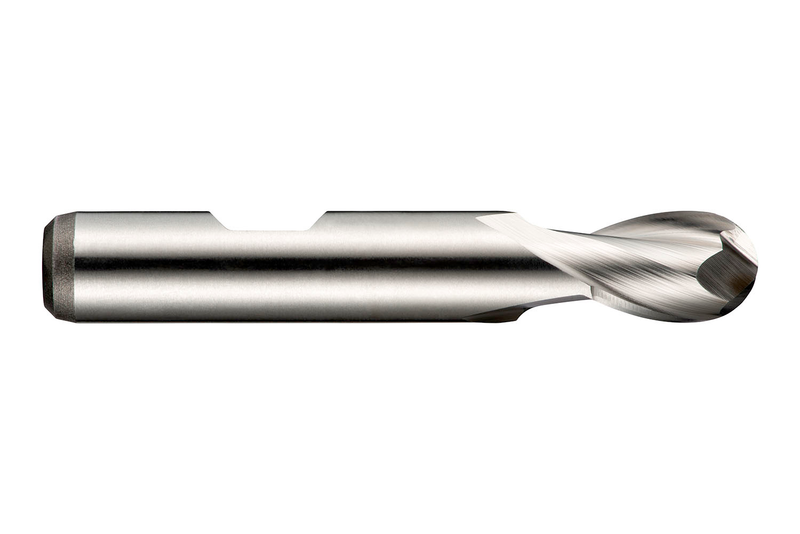

Fraise boule extra-courte à 2 dents, diamètre 20mm, longueur de coupe 22mm, longueur totale 88mm, portée 37,5mm avec dégagement de col et rayon de profil complet de 10mm, selon la norme DIN 327 D avec queue Weldon 20mm, en HSS-E à base de cobalt avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage de copie dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50020.0
GradeLumineux
Product Number5985042
Product FamilyC500

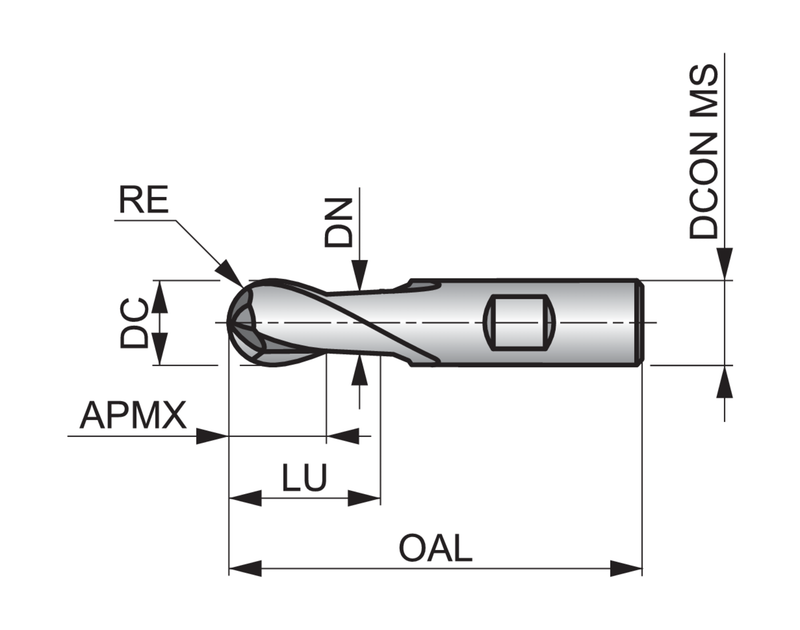

Insert Geometry
Corner Radius — in (RE)0.3937"
Corner Radius — mm (RE)10 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)3.4646"
Overall Length — mm (OAL)88.0 mm
Usable Length — mm (LU)37.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73209
EAN7320760073209
File Type Download
C50020.0 — Line Drawing PDF Download
