UGC DOR5985057
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.39 CAD - $52.39 CAD
$52.39 CAD
$52.39 CAD - $52.39 CAD
$52.39 CAD

Vendu en lots de : 1

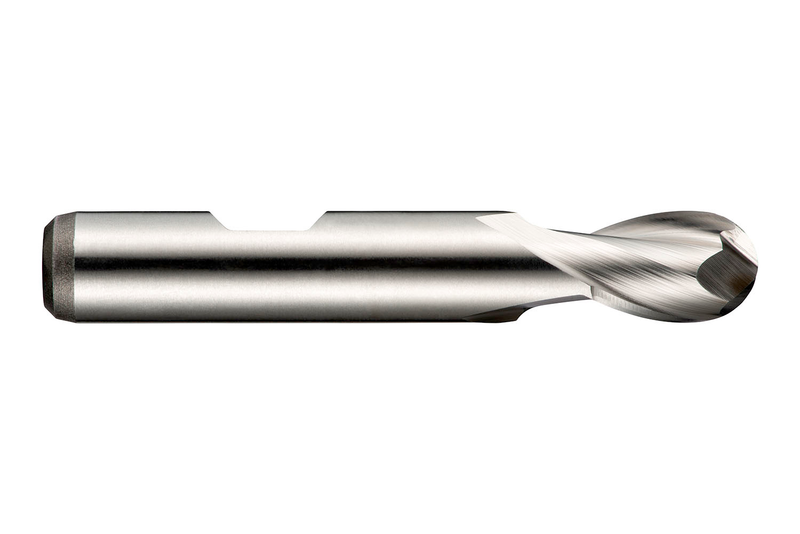

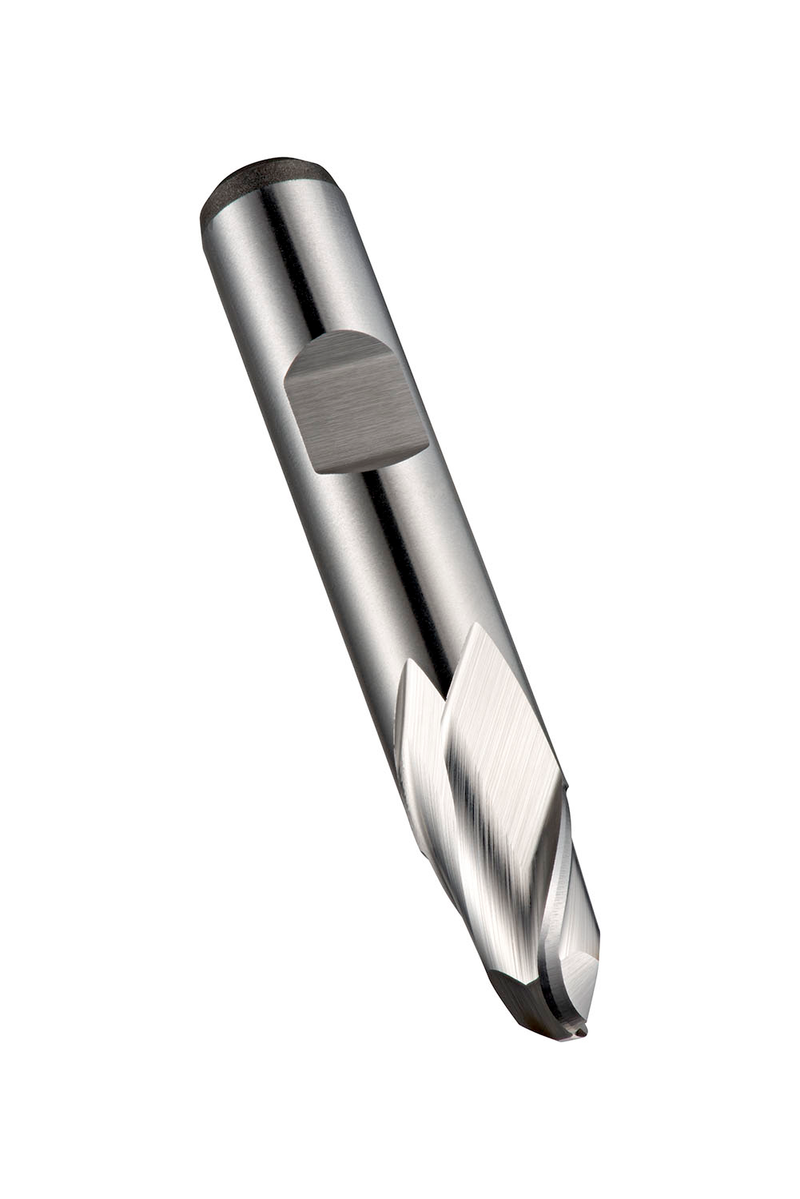

Fraise à l'extrémité sphérique extra-courte à 2 dents, diamètre 4mm avec 7mm de longueur de coupe, 51mm de longueur totale et 2mm de rayon de profil complet, selon la norme DIN 327 D avec une queue Weldon de 6mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage par copiage dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5004.0
GradeLumineux
Product Number5985057
Product FamilyC500

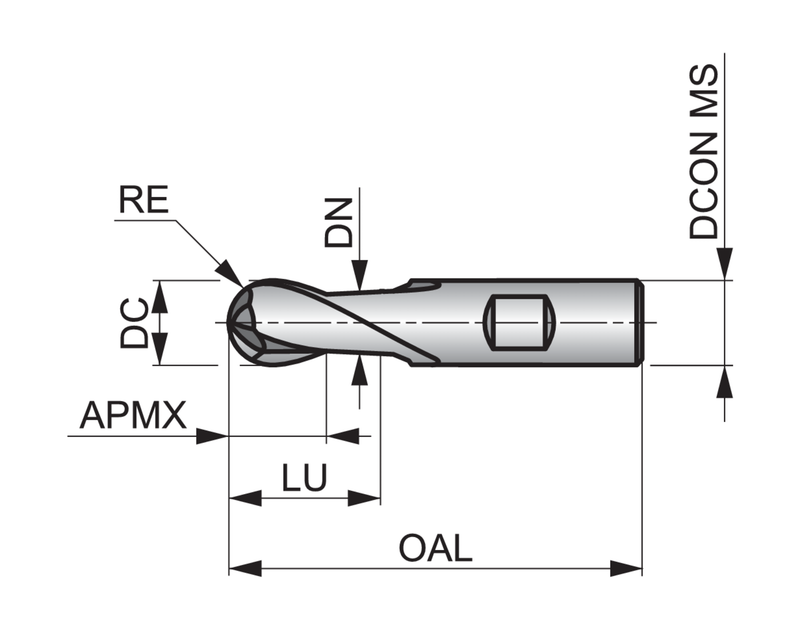

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.2756"
Depth of Cut Max — mm (APMX)7.0 mm
Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.0079"
Overall Length — mm (OAL)51.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73230
EAN7320760073230
File Type Download
C5004.0 — Line Drawing PDF Download
