UGC DOR5985062
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.54 CAD - $51.54 CAD
$51.54 CAD
$51.54 CAD - $51.54 CAD
$51.54 CAD

Vendu en lots de : 1

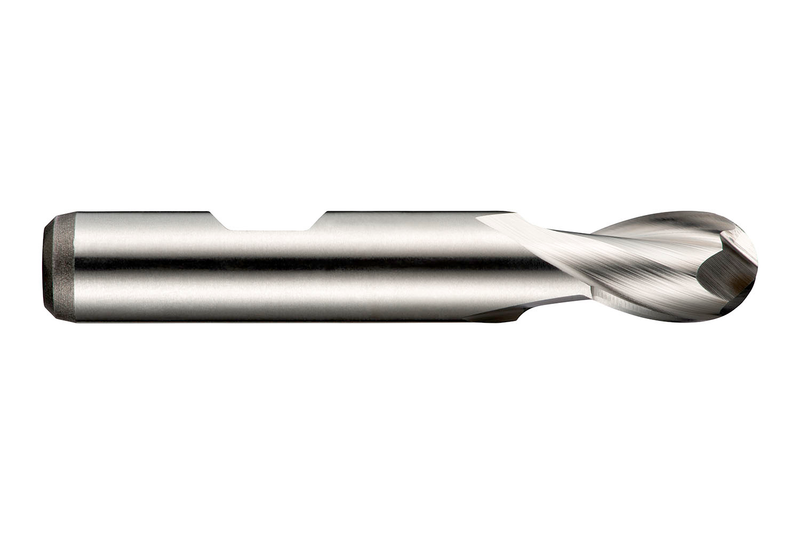

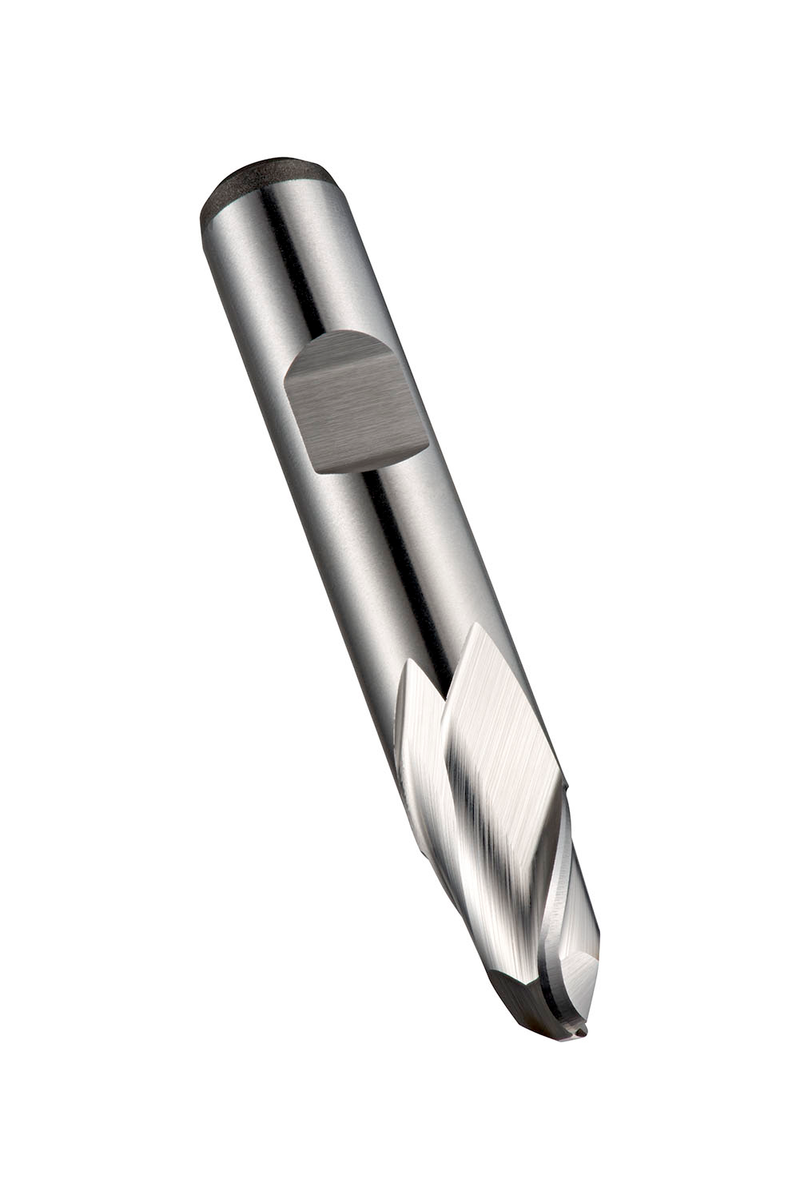

Fraise à l'hélice à bout sphérique série extra courte à 2 dents, diamètre 5mm avec une longueur de coupe de 8mm, longueur totale 52mm et un rayon de profil complet de 2.5mm, selon la norme DIN 327 D avec une queue Weldon de 6mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de coupe de 12° pour le fraisage en copie dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5005.0
GradeLumineux
Product Number5985062
Product FamilyC500

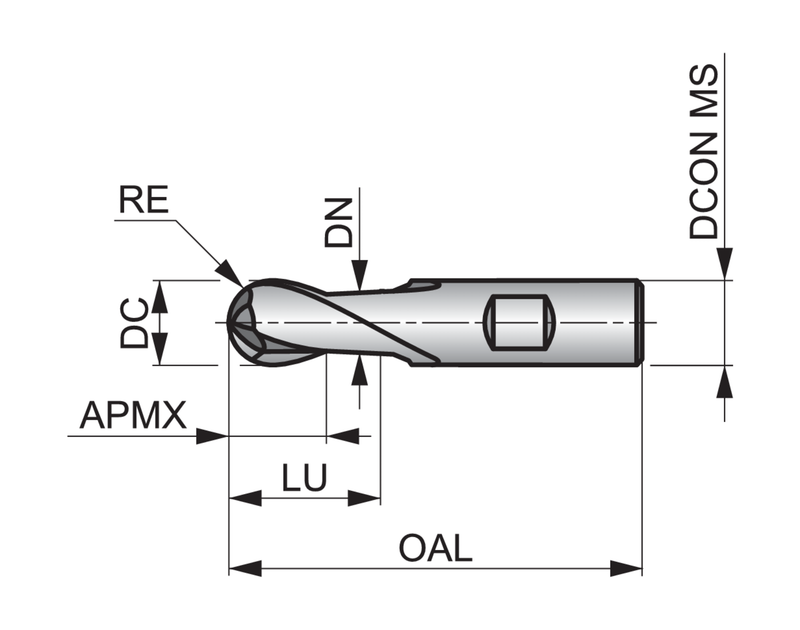

Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73247
EAN7320760073247
File Type Download
C5005.0 — Line Drawing PDF Download
