UGC DOR5985067
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.11 CAD - $52.11 CAD
$52.11 CAD
$52.11 CAD - $52.11 CAD
$52.11 CAD

Vendu en lots de : 1

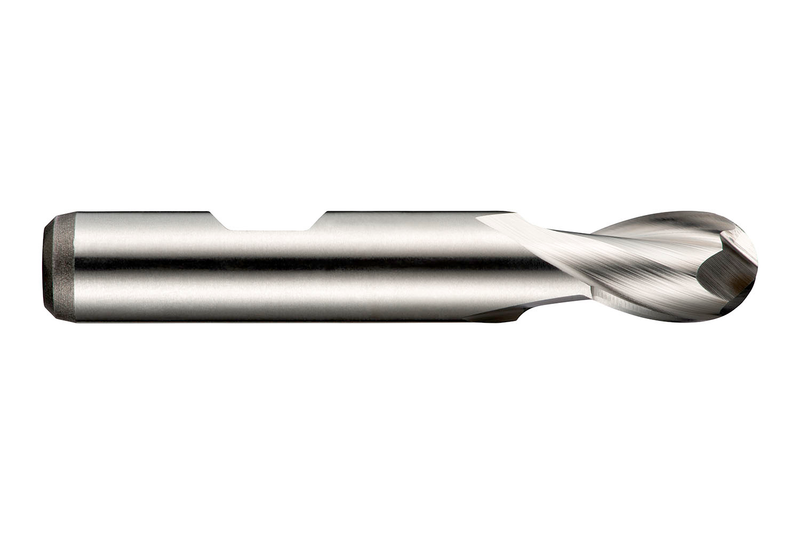

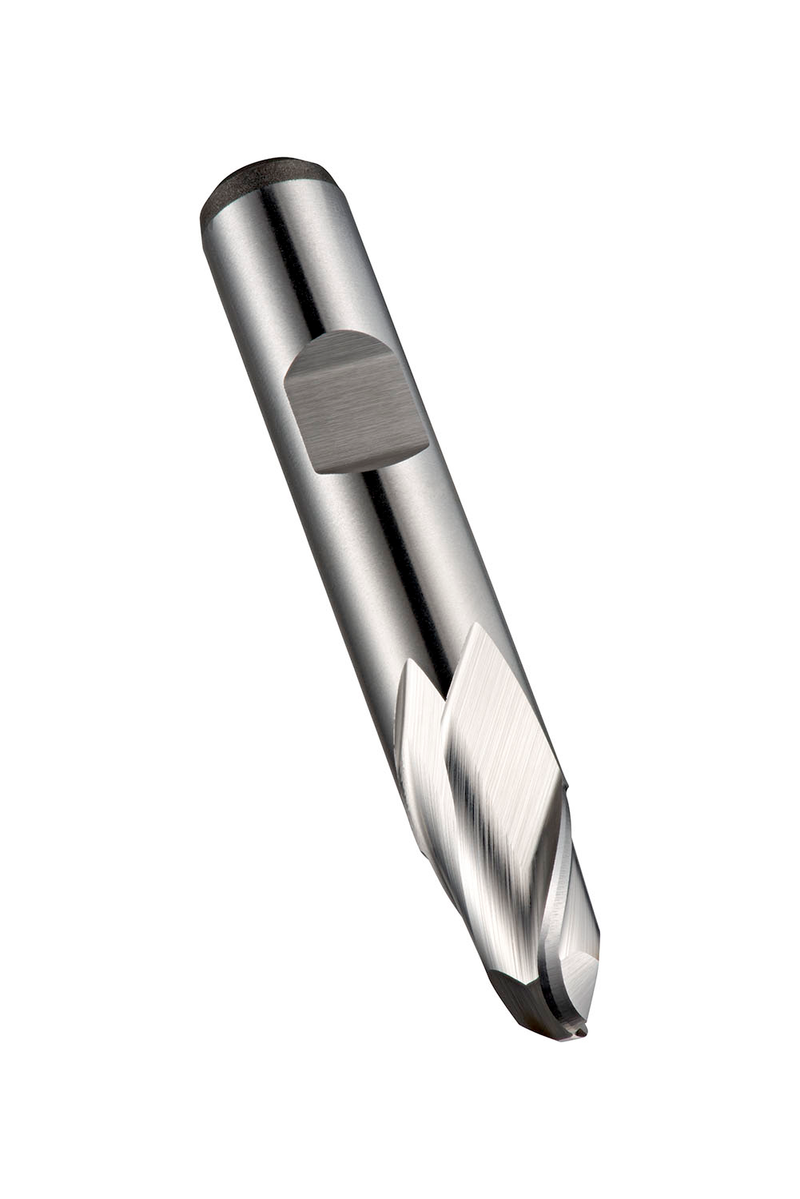

Fraise à l'extrémité sphérique de série extra-courte à 2 dents, diamètre de 6 mm avec une longueur de coupe de 8 mm, longueur totale de 52 mm et un rayon de profil complet de 3 mm, selon la norme DIN 327 D avec une queue Weldon de 6 mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dégagement de 12° pour le fraisage par copiage dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5006.0
GradeLumineux
Product Number5985067
Product FamilyC500

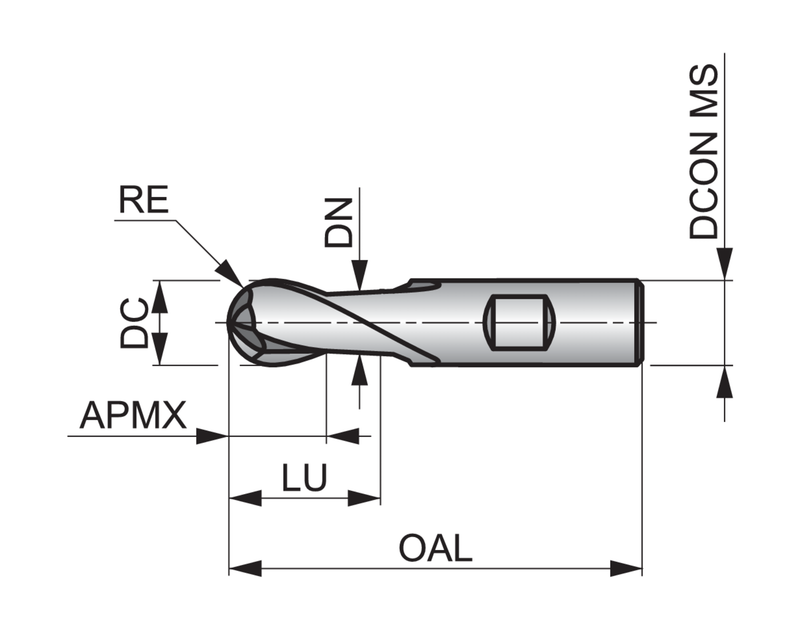

Insert Geometry
Corner Radius — in (RE)0.1181"
Corner Radius — mm (RE)3 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73254
EAN7320760073254
File Type Download
C5006.0 — Line Drawing PDF Download
