UGC DOR5985074
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$85.63 CAD - $85.63 CAD
$85.63 CAD
$85.63 CAD - $85.63 CAD
$85.63 CAD

Vendu en lots de : 1

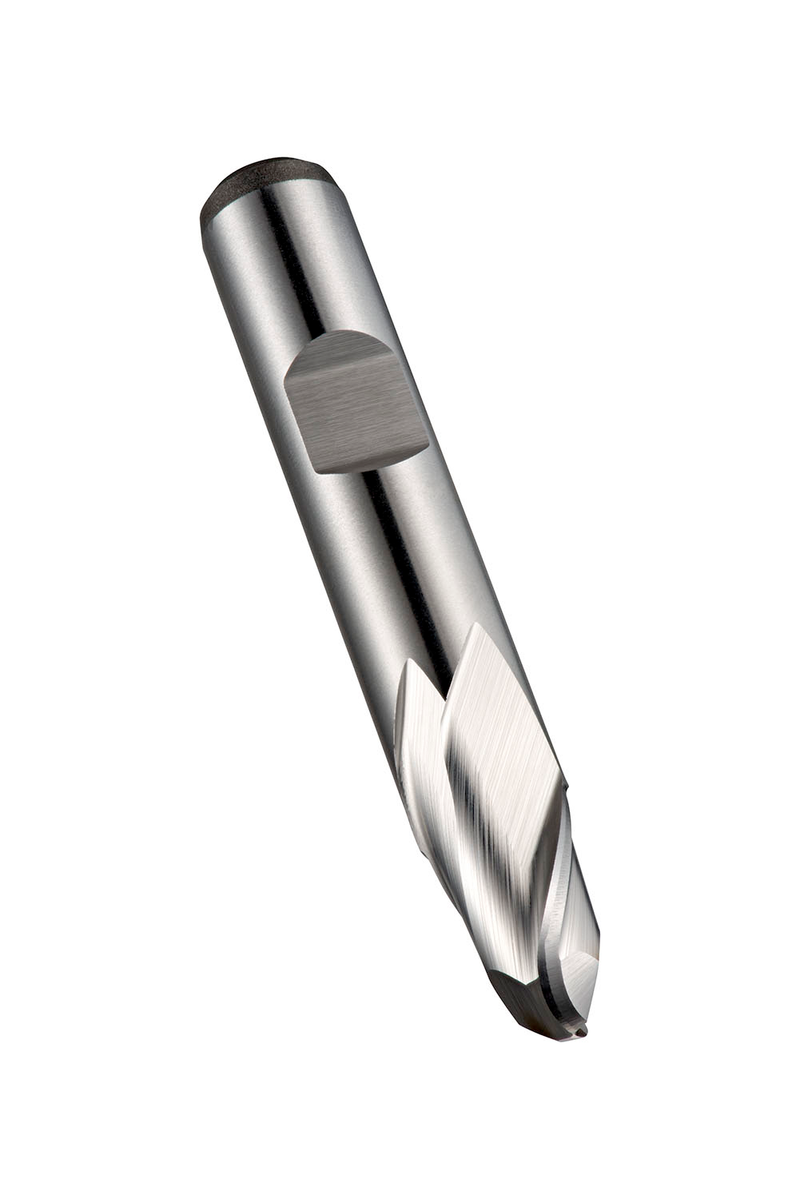

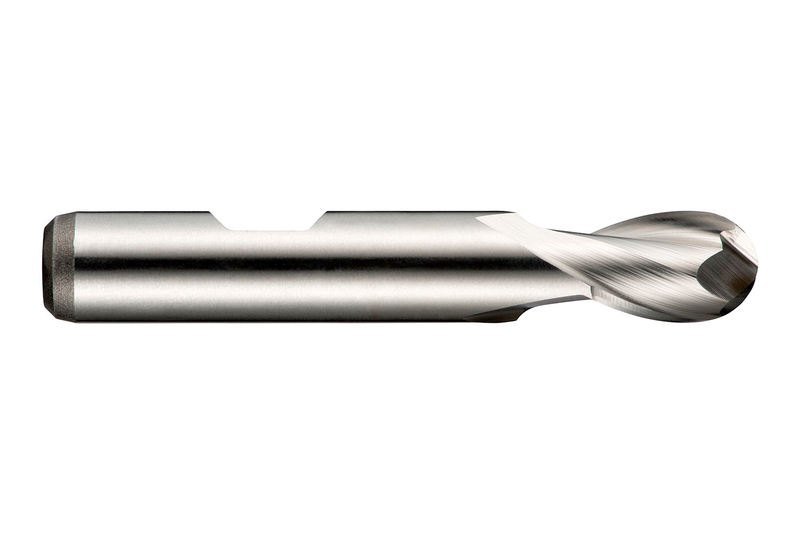

Fraise à lamer hémisphérique extra courte à 2 dents, diamètre 7 mm, longueur de coupe 10 mm, longueur totale 60 mm et rayon de profil complet 3,5 mm, selon la norme DIN 327 D avec une queue Weldon de 10 mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de reproduction dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5007.0
GradeLumineux
Product Number5985074
Product FamilyC500

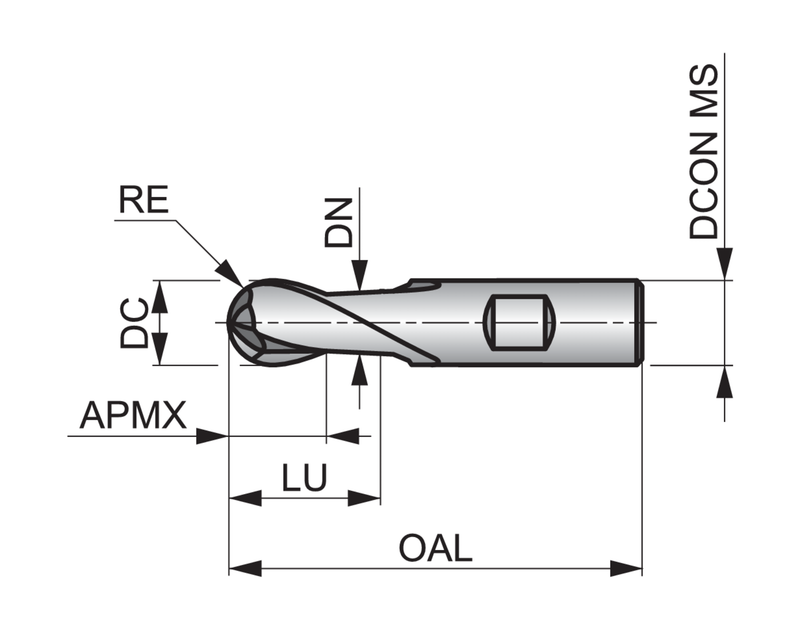

Insert Geometry
Corner Radius — in (RE)0.1378"
Corner Radius — mm (RE)3.5 mm
Depth of Cut Max — in (APMX)0.3937"
Depth of Cut Max — mm (APMX)10.0 mm
Dimensions
Cutting Diameter — in (DC)0.2756"
Cutting Diameter — mm (DC)7.0 mm
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73261
EAN7320760073261
File Type Download
C5007.0 — Line Drawing PDF Download
