UGC DOR5985081
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$66.07 CAD - $66.07 CAD
$66.07 CAD
$66.07 CAD - $66.07 CAD
$66.07 CAD

Vendu en lots de : 1

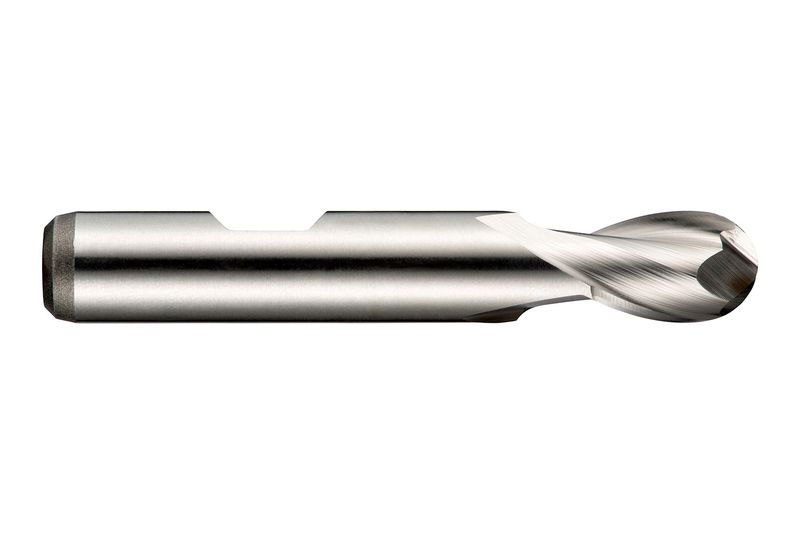

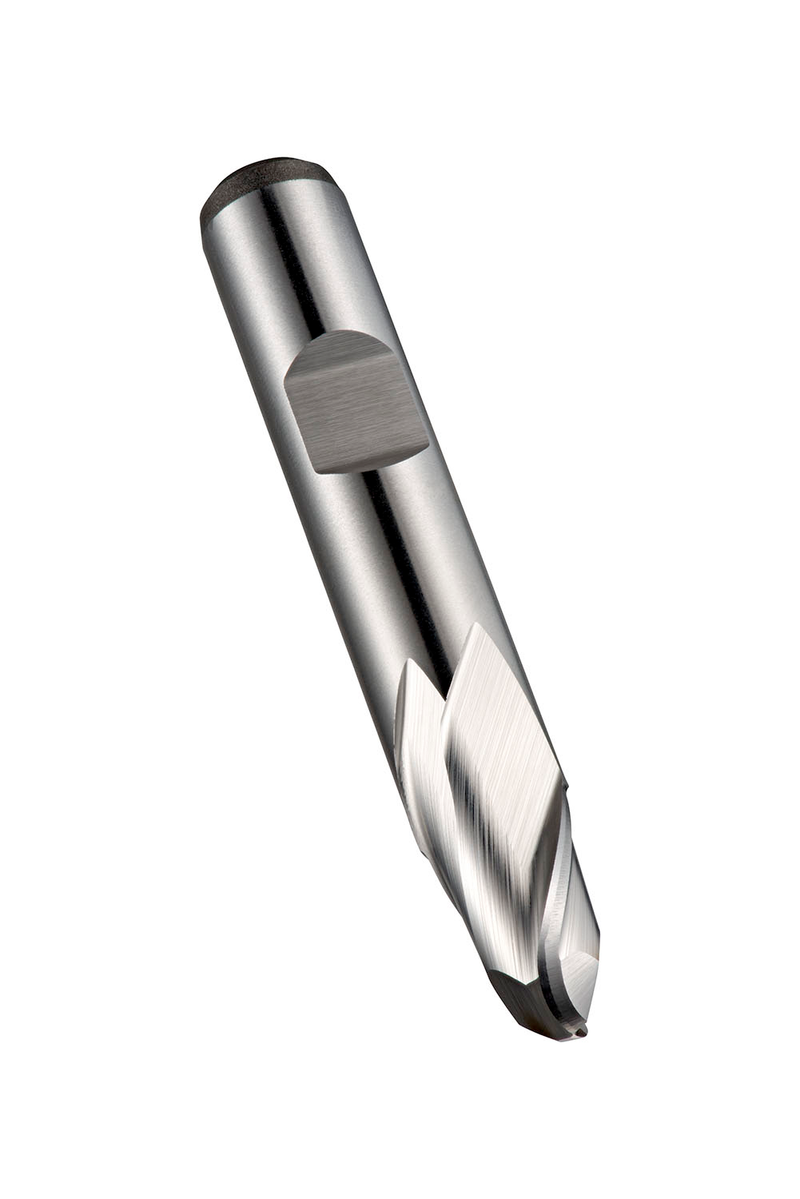

Fraise boule extra-courte 2 dents, diamètre 8mm avec longueur de coupe 11mm, longueur totale 61mm et rayon de profil complet 4mm, selon la norme DIN 327 D avec queue Weldon 10mm, en HSS-E cobalt avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage de copiage dans les aciers à usinage facile, le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5008.0
GradeLumineux
Product Number5985081
Product FamilyC500

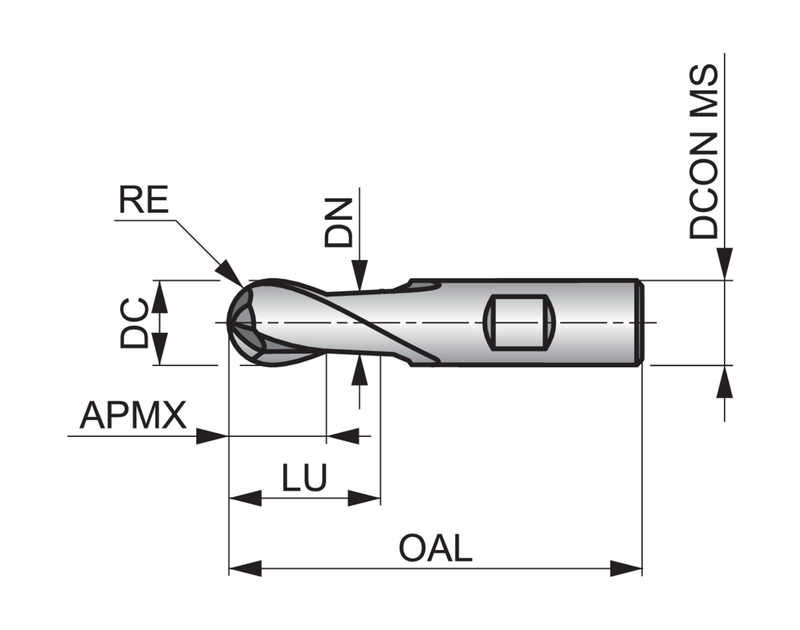

Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.315"
Cutting Diameter — mm (DC)8.0 mm
Overall Length — in (OAL)2.4016"
Overall Length — mm (OAL)61.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue à souder DIN 1835B
StandardDIN 327 D
Reference Numbers
EDP Number73278
EAN7320760073278
File Type Download
C5008.0 — Line Drawing PDF Download
