UGC DOR5985214
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$124.20 CAD - $124.20 CAD
$124.20 CAD
$124.20 CAD - $124.20 CAD
$124.20 CAD

Vendu en lots de : 1

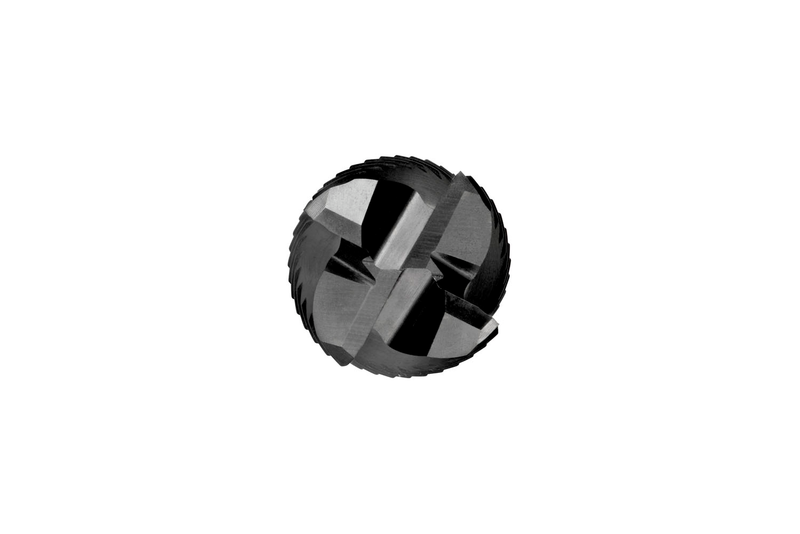

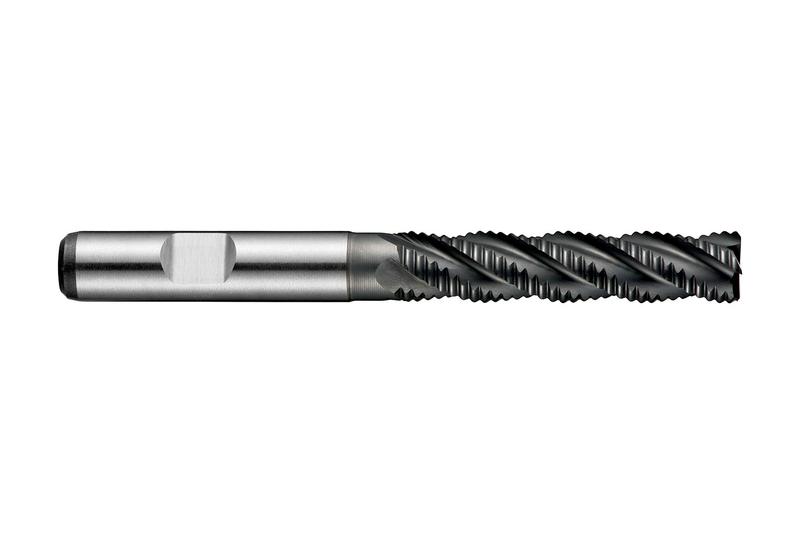

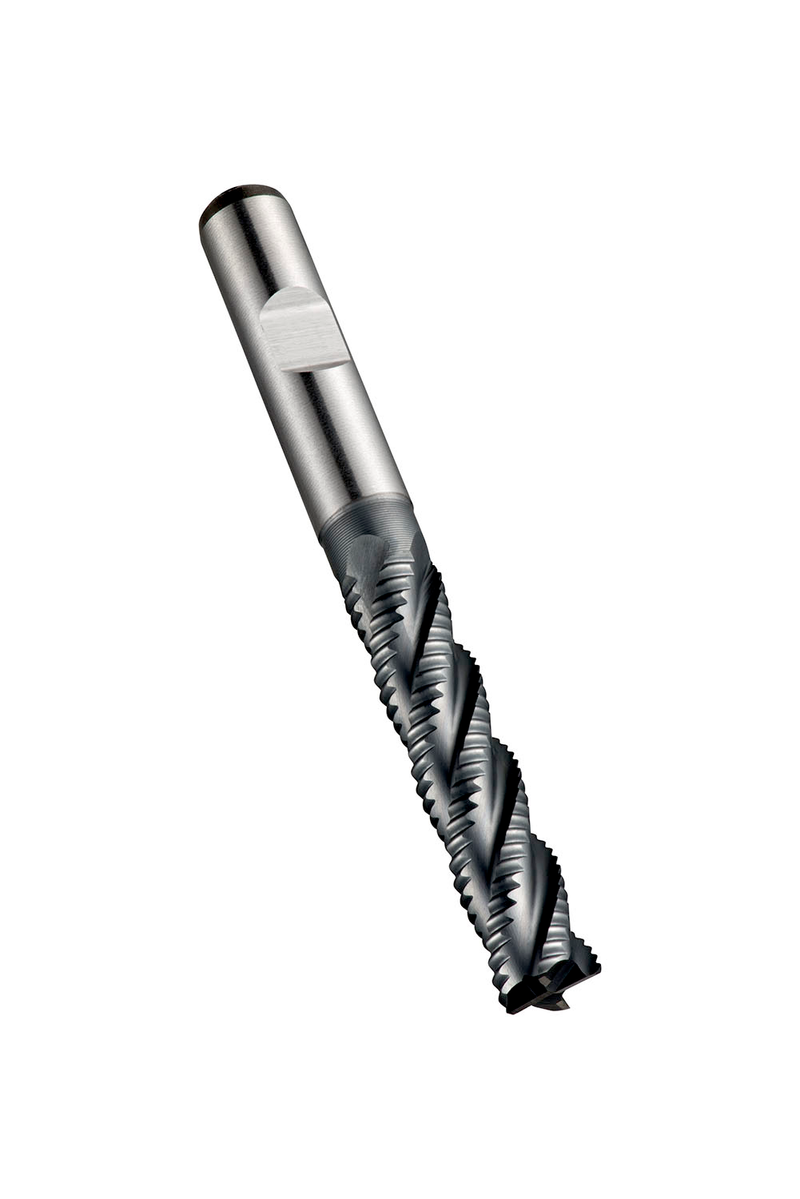

Fraise 4 dents longue série à ébaucher avec profil asymétrique NRA et pas inégal, diamètre 6 mm, longueur de coupe 24 mm et longueur totale 68 mm, selon la norme DIN 844 L avec queue Weldon 6 mm, en HSS-E fritté avec revêtement Alcrona, hélice 35° et angle de dépouille 12° pour le fraisage d'épaulement et le fraisage de rainures dans les aciers non alliés, alliés et à outils, les aciers inoxydables, la fonte, le cuivre ou les alliages de cuivre et les superalliages

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C9486.0
GradeALCRONA
Product Number5985214
Product FamilyC948
Insert Geometry
Depth of Cut Max — in (APMX)0.9449"
Depth of Cut Max — mm (APMX)24.0 mm

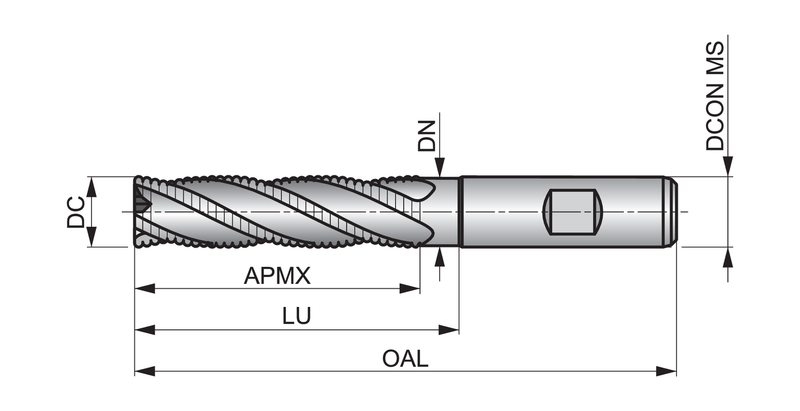

Dimensions
Cutting Diameter — in (DC)0.2362"
Cutting Diameter — mm (DC)6.0 mm
Overall Length — in (OAL)2.6772"
Overall Length — mm (OAL)68.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)35.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 L
Reference Numbers
EDP Number128701
EAN7320760128701
File Type Download
C9486.0 — Line Drawing PDF Download
