D745100.0X1.0
D745100.0X1.0
D745100.0X1.0

D745100.0X1.0

UGC DOR5985266
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$72.00 CAD - $72.00 CAD
$72.00 CAD
$72.00 CAD - $72.00 CAD
$72.00 CAD

Vendu en lots de : 5

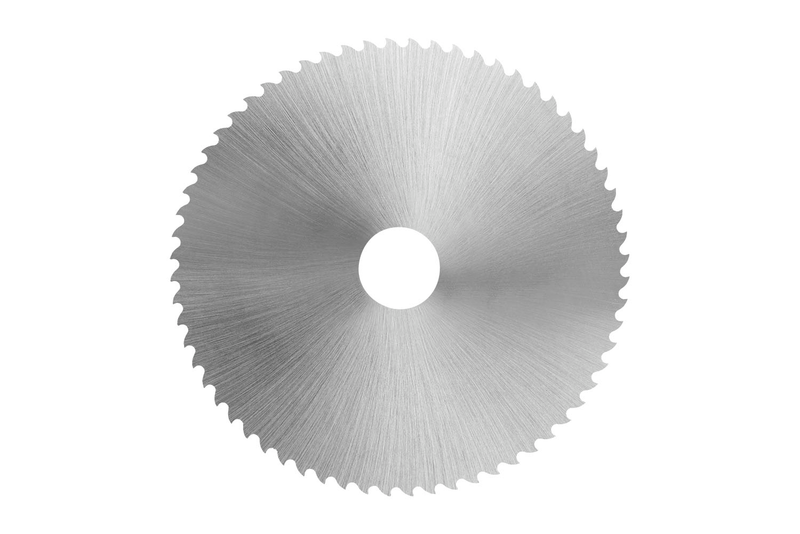

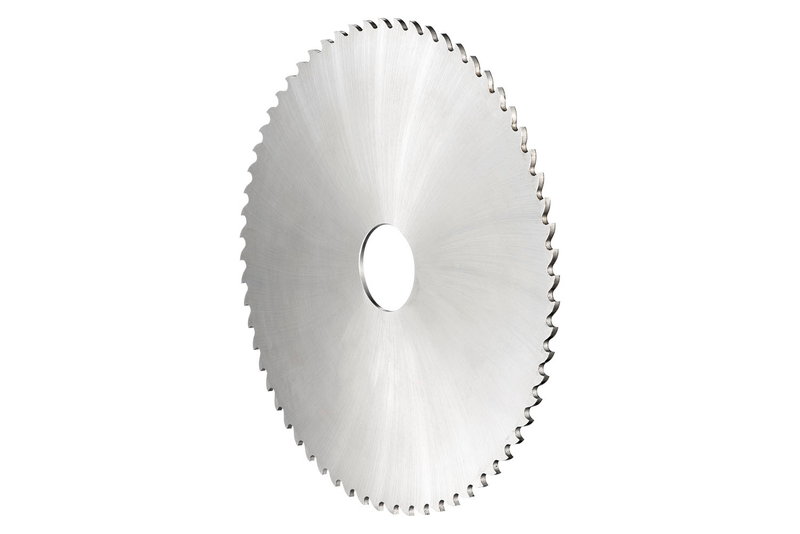

Scie à refendre en acier rapide à pas grossier et 64 dents, diamètre 100mm, largeur de coupe 1mm, selon la norme DIN 1838 avec alésage de 22mm, HSS finition brillante et angle de coupe de 15° pour tronçonnage, rainurage peu profond et rainurage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D745100.0X1.0
GradeLumineux
Product Number5985266
Product FamilyD745

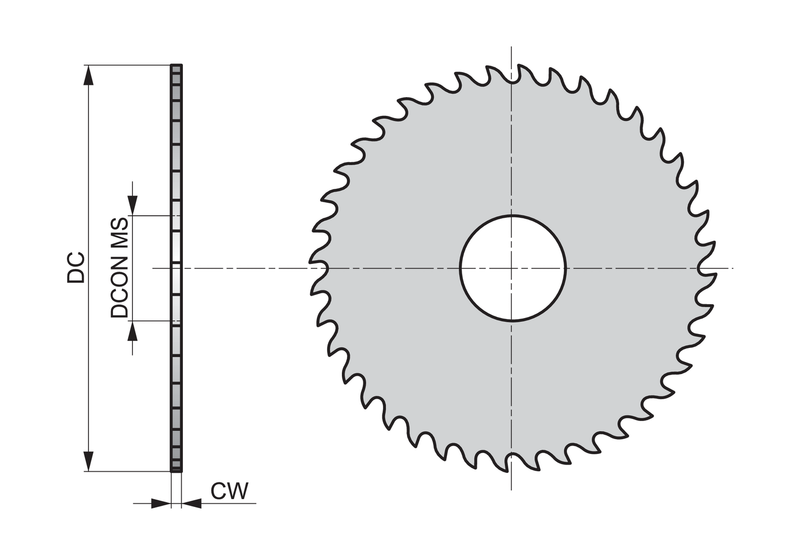

Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)64
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283929
EAN7320760283929
File Type Download
D745100.0X1.0 — Line Drawing PDF Download
