D40040.0
D40040.0
D40040.0

D40040.0

UGC DOR5985296
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$244.20 CAD - $244.20 CAD
$244.20 CAD
$244.20 CAD - $244.20 CAD
$244.20 CAD

Vendu en lots de : 1

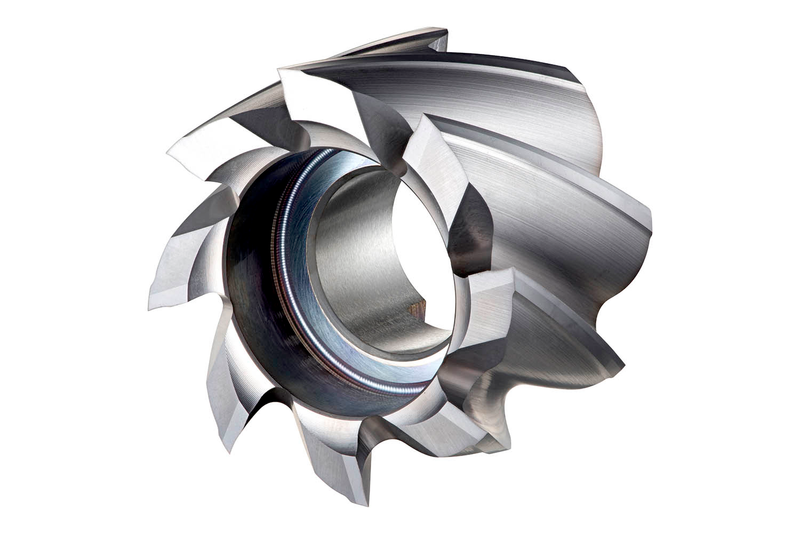

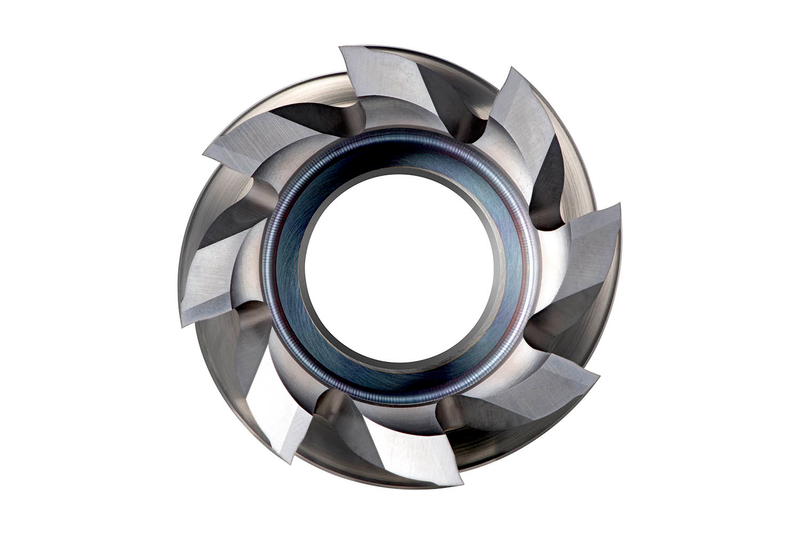

Fraise à surfacer 8 dents, diamètre 40 mm, longueur de coupe 32 mm, selon la norme DIN 1880, alésage 16 mm avec entraînement à tenon, en HSS-E cobalt, finition brillante, hélice 30° et angle de dépouille 12° pour le surfaçage et le fraisage d'épaulements dans les aciers de décolletage, aciers au carbone et alliés, aciers inoxydables ferritiques, martensitiques et super-austénitiques, Duplex ou à durcissement par précipitation, la fonte, l'aluminium moulé et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI)D40040.0
Product Name (ISO)D40040,0
GradeLumineux
Product Number5985296
Product FamilyD400
Dimensions
Cutting Diameter — in (DC)1.5748"
Cutting Diameter — mm (DC)40.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)30.0°
Tool Information
StandardDIN 1880
Reference Numbers
EDP Number77245
EAN7320760077245
File Type Download

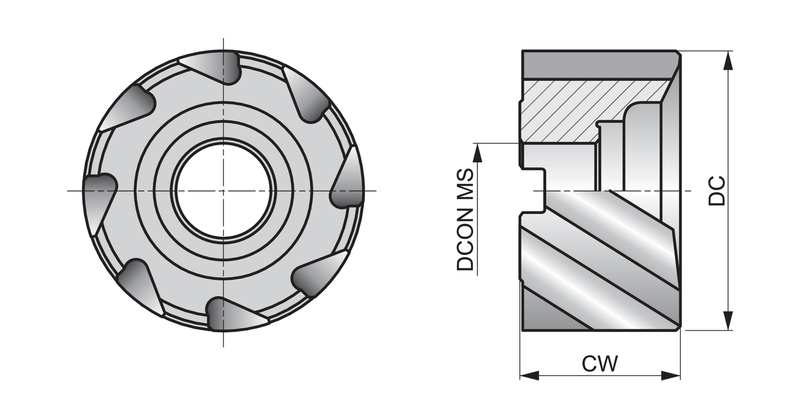

D40040.0 — Line Drawing PDF Download
