D745100.0X2.5
D745100.0X2.5
D745100.0X2.5

D745100.0X2.5

UGC DOR5985297
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$104.00 CAD - $104.00 CAD
$104.00 CAD
$104.00 CAD - $104.00 CAD
$104.00 CAD

Vendu en lots de : 1

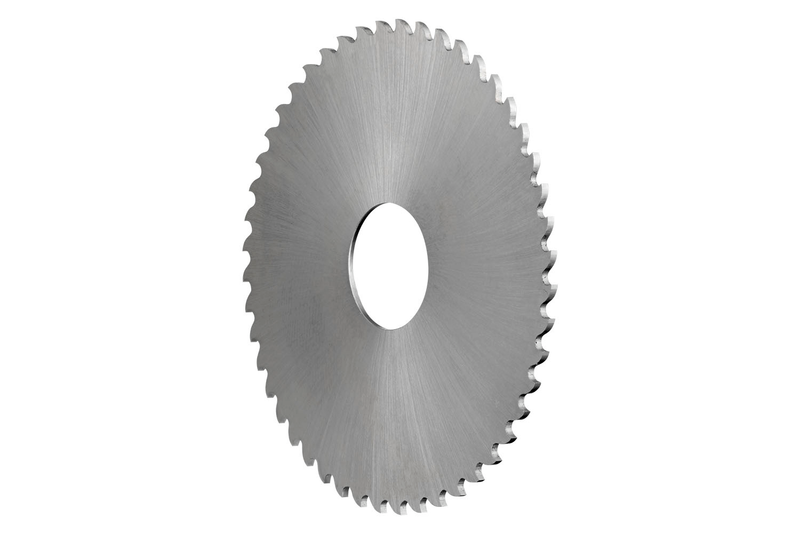

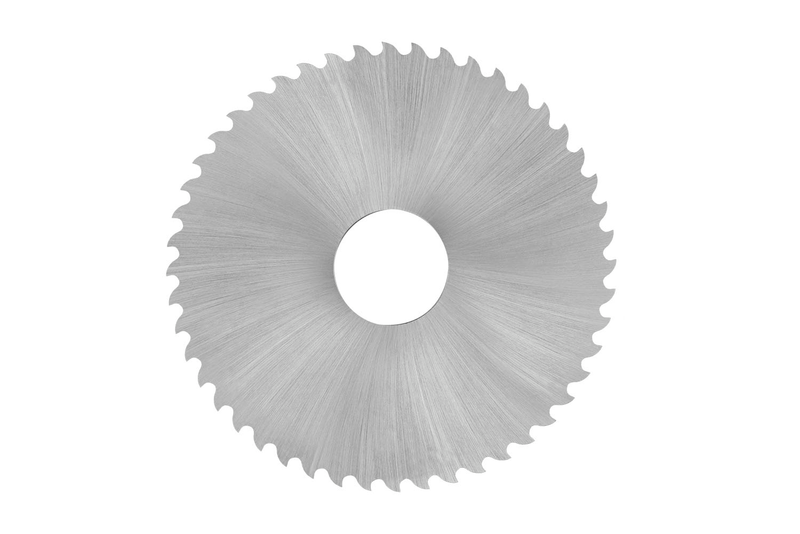

Scie à refendre en métal à pas gros et 48 dents, diamètre 100 mm avec largeur de coupe de 2,5 mm, selon la norme DIN 1838 avec un alésage de 22 mm, HSS avec finition brillante et un angle de coupe de 15° pour le sciage, le rainurage peu profond et le rainurage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)D745100,0X2,5
Product Name (ISO)D745100.0X2.5
GradeLumineux
Product Number5985297
Product FamilyD745
Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Connection Dia. — in (DCON)0.8661"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)48
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283974
EAN7320760283974
File Type Download

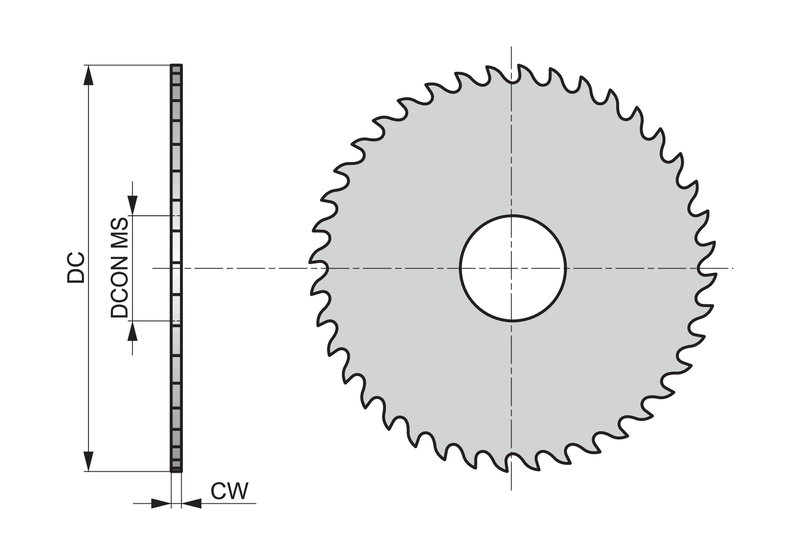

D745100.0X2.5 — Line Drawing PDF Download
