UGC DOR5985389
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$321.90 CAD - $321.90 CAD
$321.90 CAD
$321.90 CAD - $321.90 CAD
$321.90 CAD

Vendu en lots de : 1

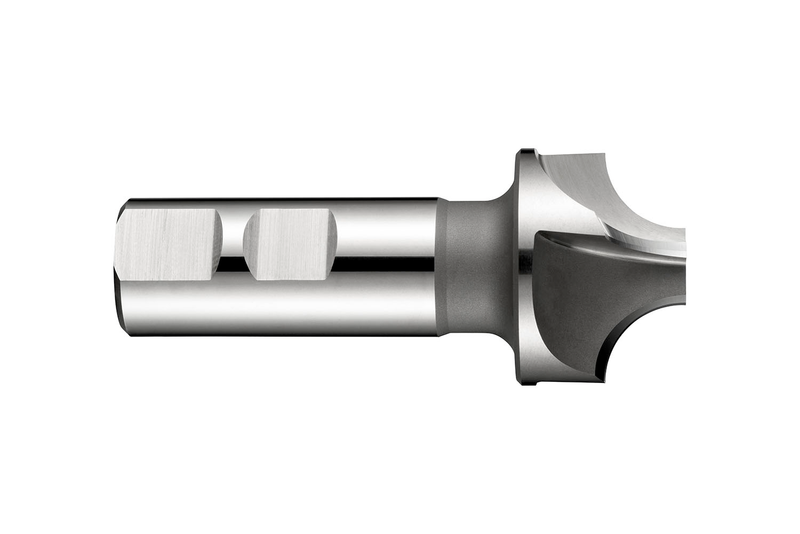

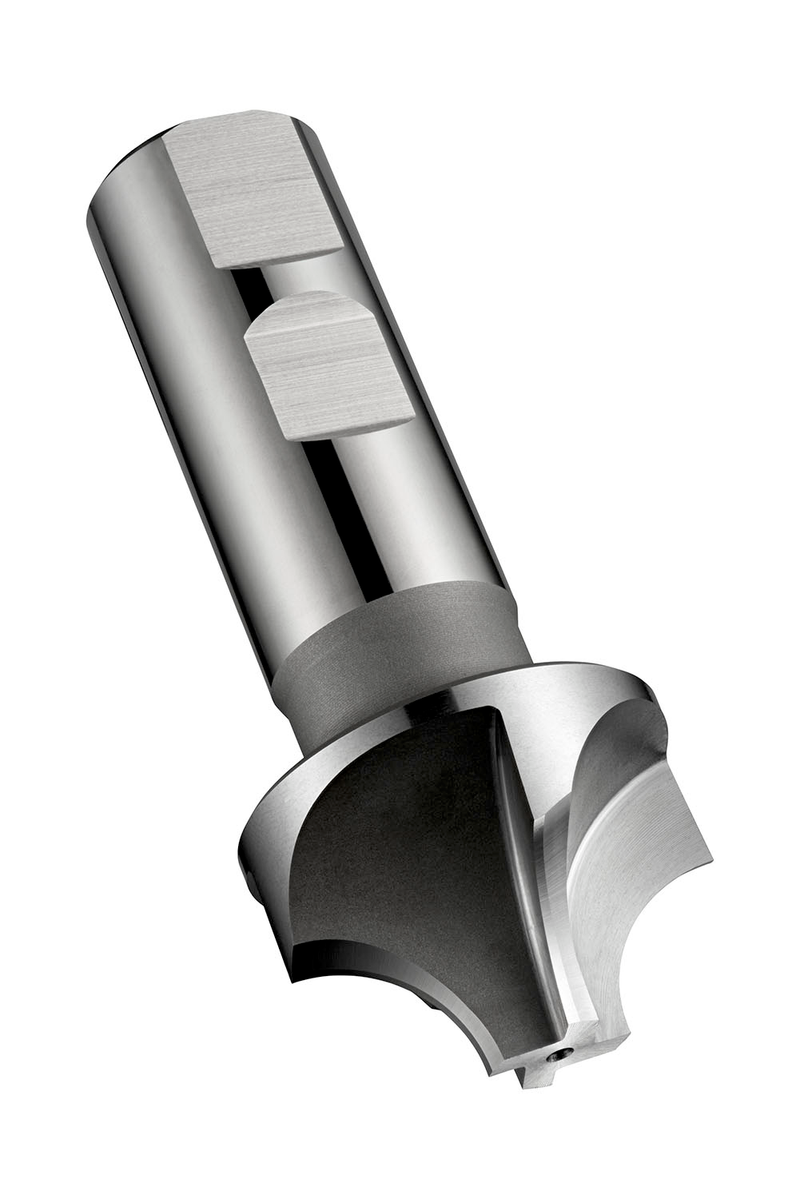

Fraise à arrondir les angles série extra-courte à 4 arêtes, diamètre 10 mm avec longueur totale de 60 mm et rayon de profil de 1,5 mm, selon la norme DORMER avec queue Weldon de 10 mm, HSS-E à base de cobalt avec finition brillante, hélice à 0° et angle de dépouille de 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C7001.5
GradeLumineux
Product Number5985389
Product FamilyC700

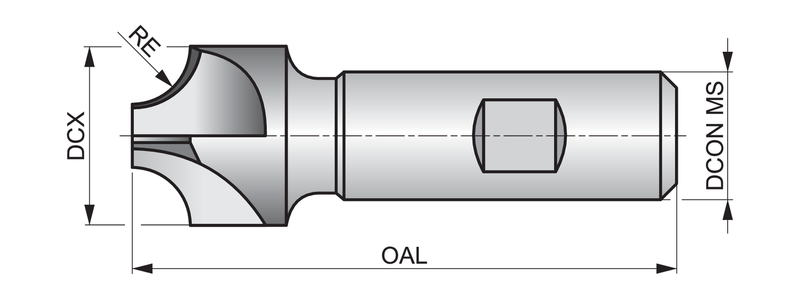

Insert Geometry
Corner Radius — in (RE)0.0591"
Corner Radius — mm (RE)1.5 mm
Dimensions
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm

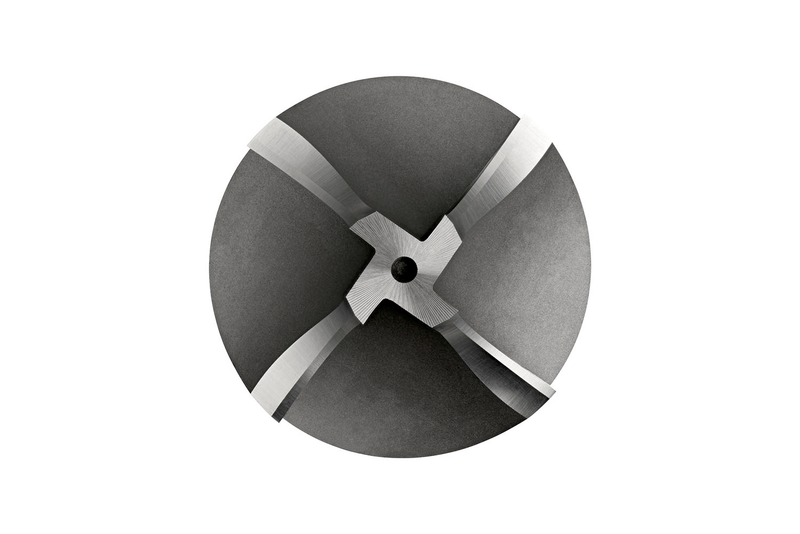

Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number74299
EAN7320760074299
File Type Download
C7001.5 — Line Drawing PDF Download
