UGC DOR5985390
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$481.00 CAD - $481.00 CAD
$481.00 CAD
$481.00 CAD - $481.00 CAD
$481.00 CAD

Vendu en lots de : 1

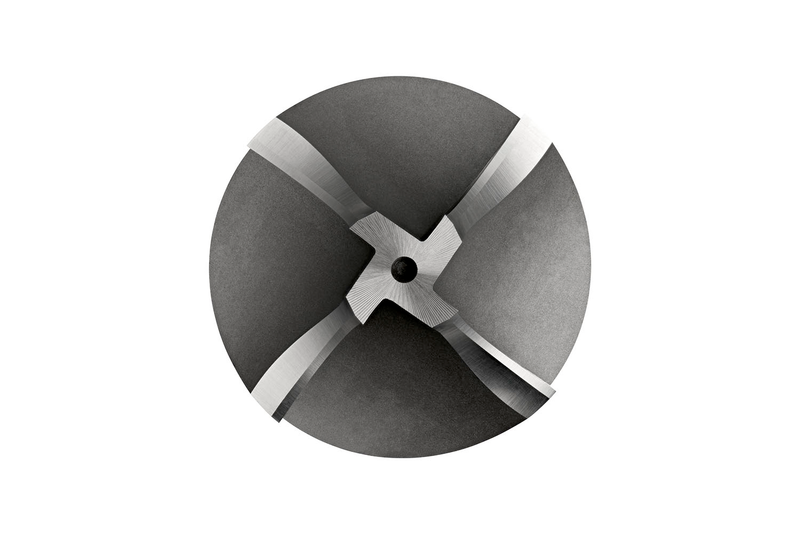

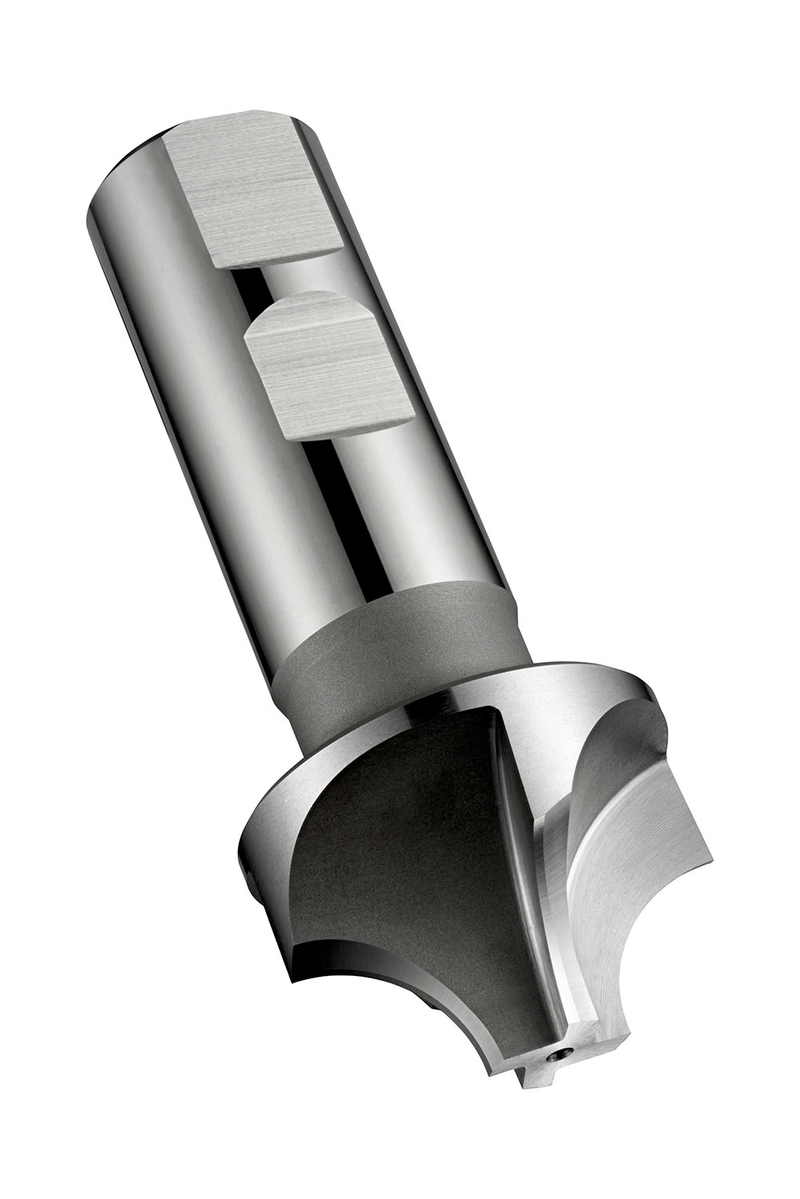

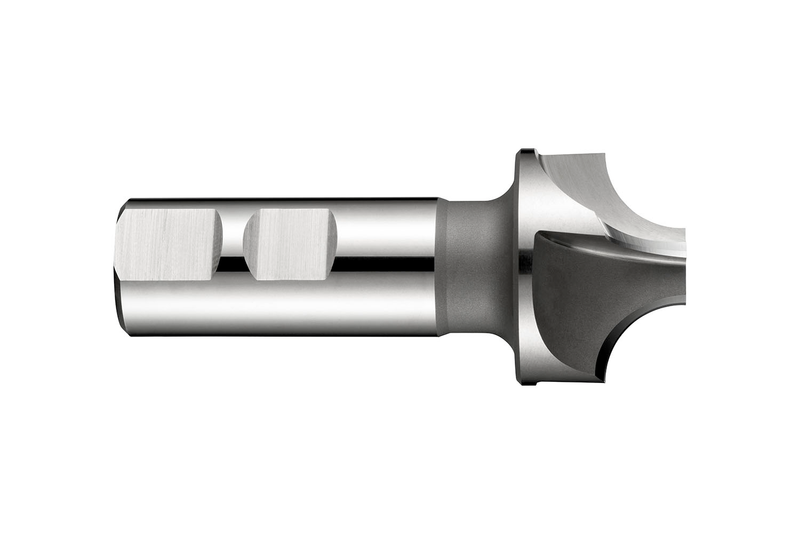

Fraise à arrondir d’angle série extra courte à 4 dents, diamètre 28mm avec longueur totale 85mm et rayon de profil 10mm, selon norme DORMER avec queue Weldon 20mm, HSS-E cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé et moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C70010.0
GradeLumineux
Product Number5985390
Product FamilyC700

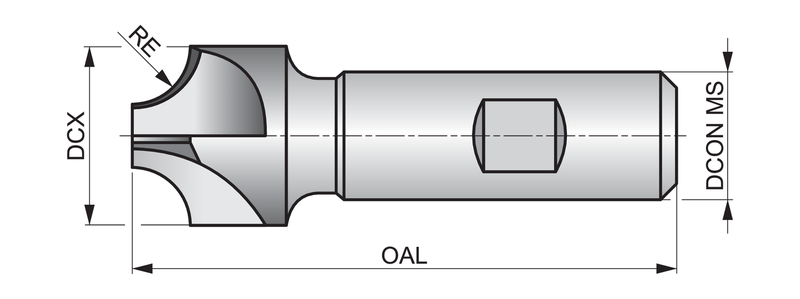

Insert Geometry
Corner Radius — in (RE)0.3937"
Corner Radius — mm (RE)10 mm
Dimensions
Overall Length — in (OAL)3.3465"
Overall Length — mm (OAL)85.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number74305
EAN7320760074305
File Type Download
C70010.0 — Line Drawing PDF Download
