C70012.5
C70012.5
C70012.5
C70012.5

C70012.5

UGC DOR5985392
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$340.40 CAD - $340.40 CAD
$340.40 CAD
$340.40 CAD - $340.40 CAD
$340.40 CAD

Vendu en lots de : 1

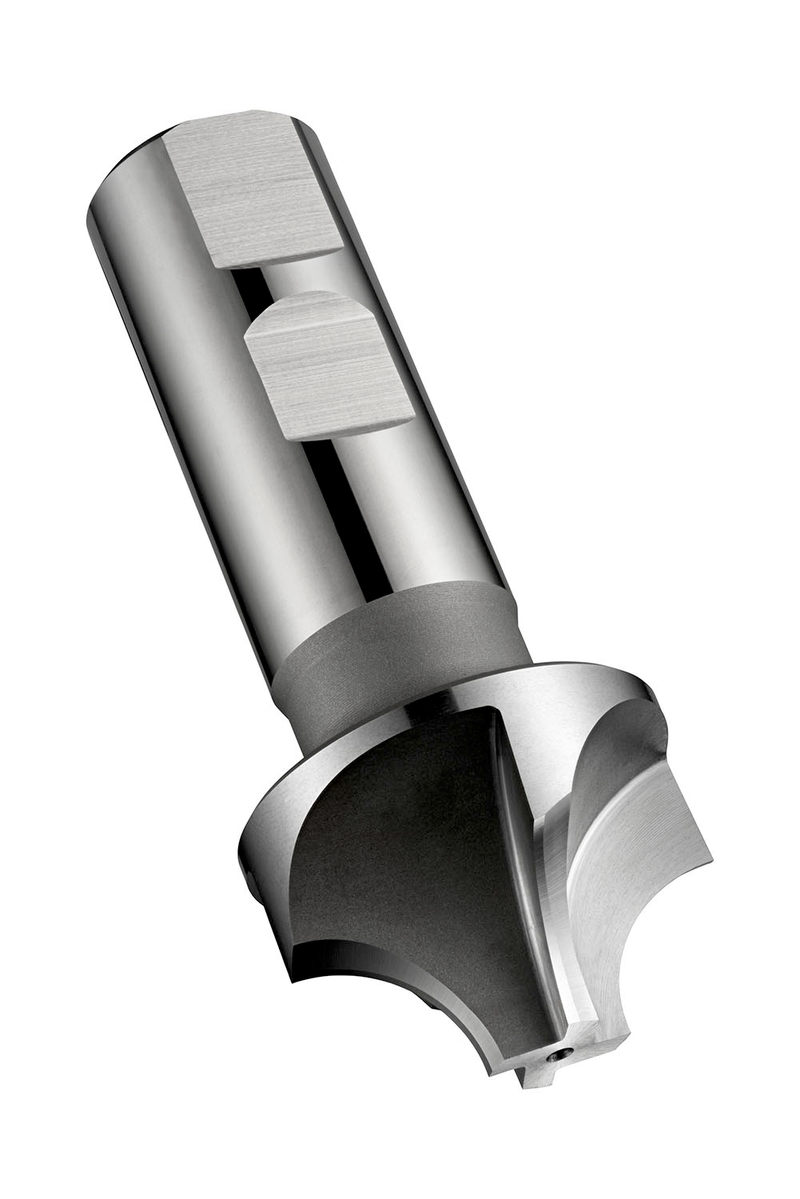

Fraise à arrondir d'angle, série extra-courte à 4 dents, diamètre 35 mm, longueur totale 100 mm et rayon de profil 12,5 mm, selon la norme DORMER, avec queue Weldon 20 mm, en HSS-E cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé et moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C70012.5
GradeLumineux
Product Number5985392
Product FamilyC700
Insert Geometry
Corner Radius — in (RE)0.4921"
Corner Radius — mm (RE)12.5 mm
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm

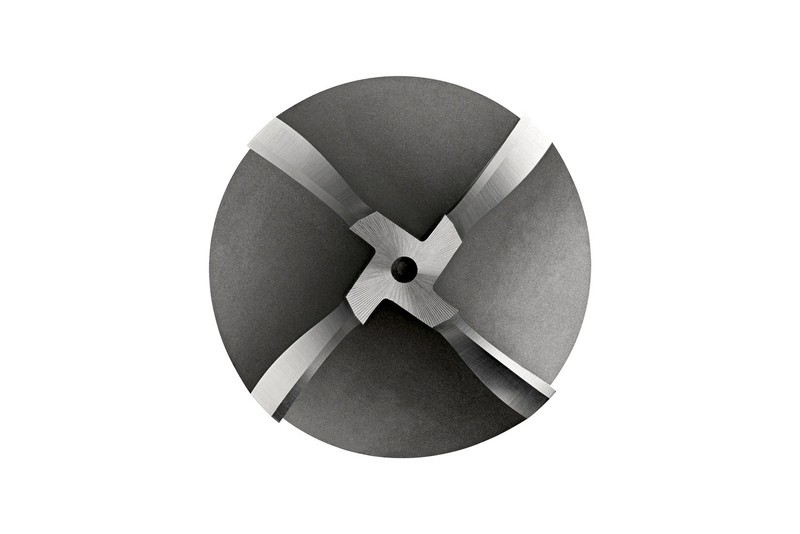

Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information

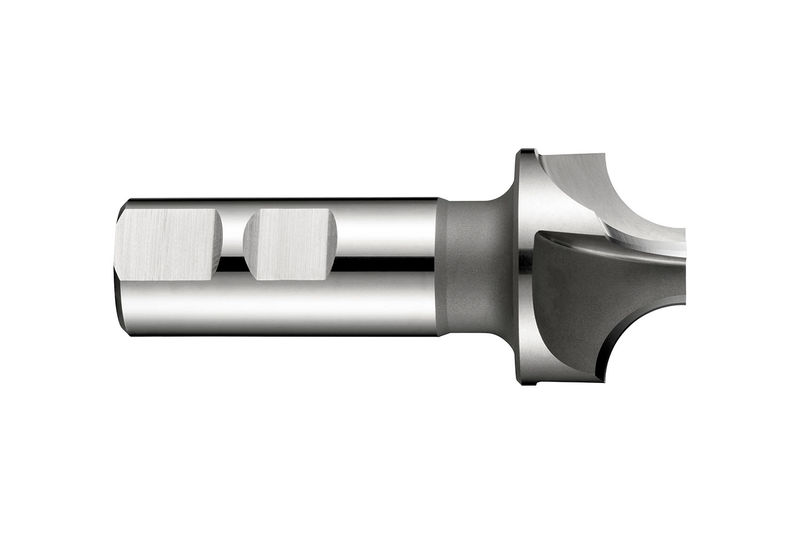

ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number74329
EAN7320760074329
File Type Download

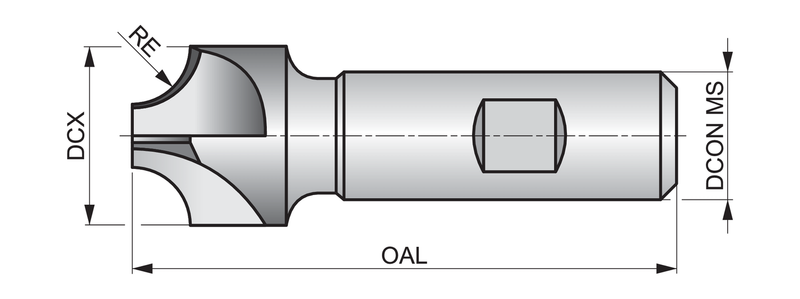

C70012.5 — Line Drawing PDF Download
