UGC DOR5985395
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$645.91 CAD - $645.91 CAD
$645.91 CAD
$645.91 CAD - $645.91 CAD
$645.91 CAD

Vendu en lots de : 1

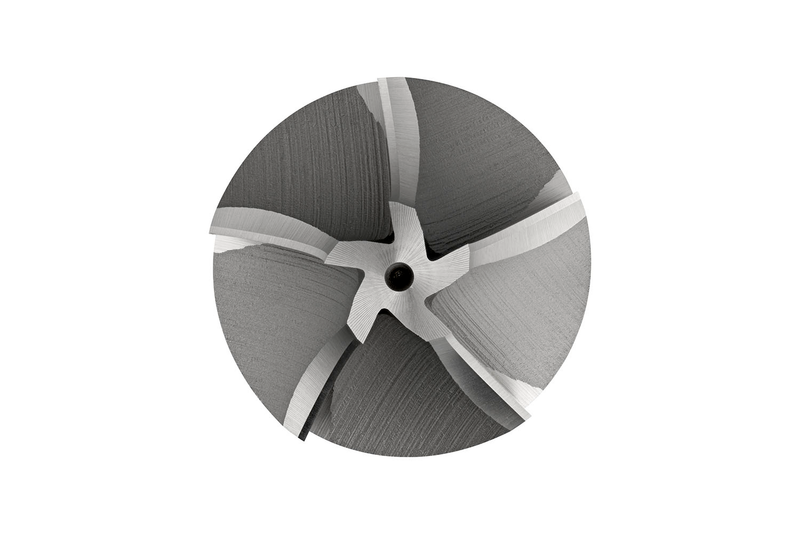

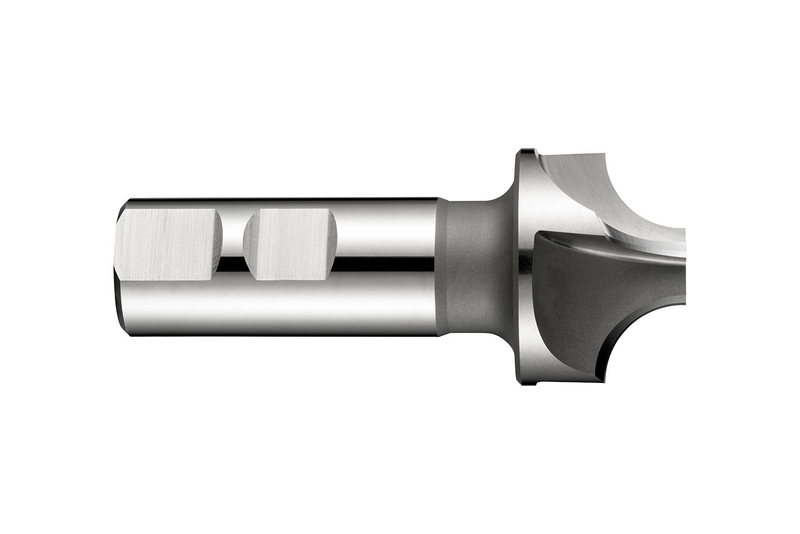

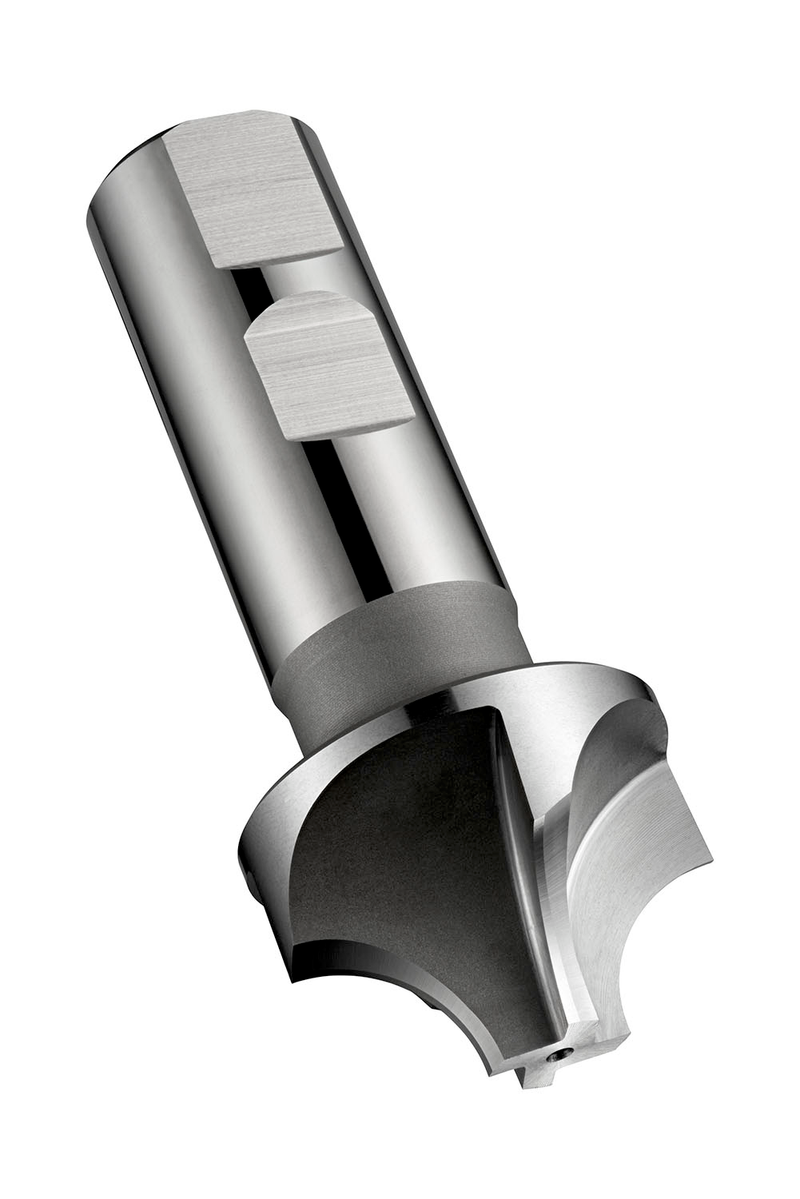

Fraise à arrondir d'angle, série extra-courte, 5 dents, diamètre 48mm, longueur totale 105mm, rayon de profil 15mm, selon norme DORMER, avec queue Weldon 25mm, HSS-E cobalt, finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C70015.0
GradeLumineux
Product Number5985395
Product FamilyC700
Insert Geometry
Corner Radius — in (RE)0.5906"
Corner Radius — mm (RE)15 mm
Dimensions
Overall Length — in (OAL)4.1339"
Overall Length — mm (OAL)105.0 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)5
Helix Angle (FHA)0.0°
Tool Information
ShankQueue cylindrique à méplats DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number127049
EAN7320760127049
File Type Download

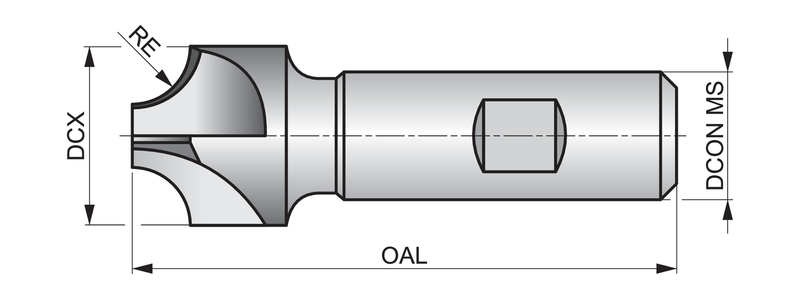

C70015.0 — Line Drawing PDF Download
