UGC DOR5985433
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$426.03 CAD - $426.03 CAD
$426.03 CAD
$426.03 CAD - $426.03 CAD
$426.03 CAD

Vendu en lots de : 1

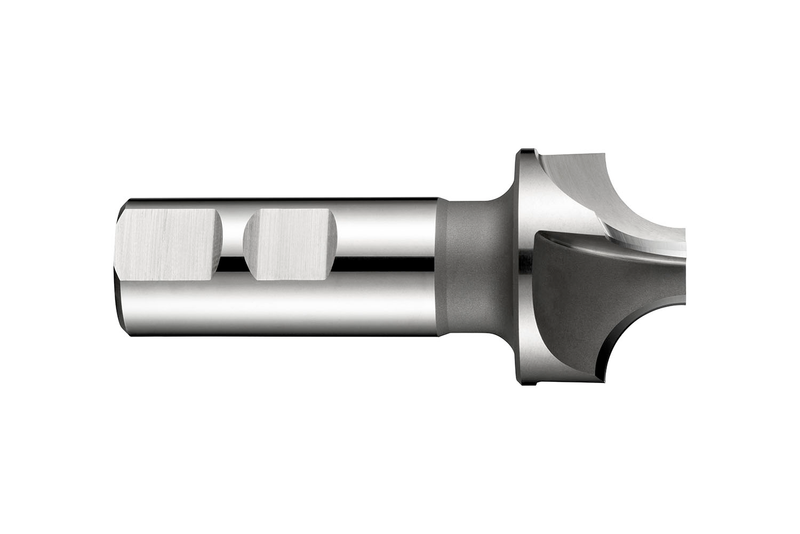

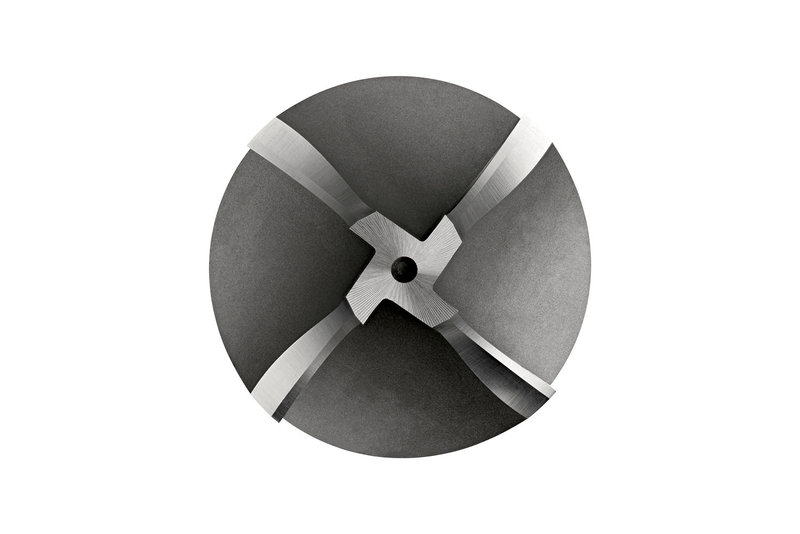

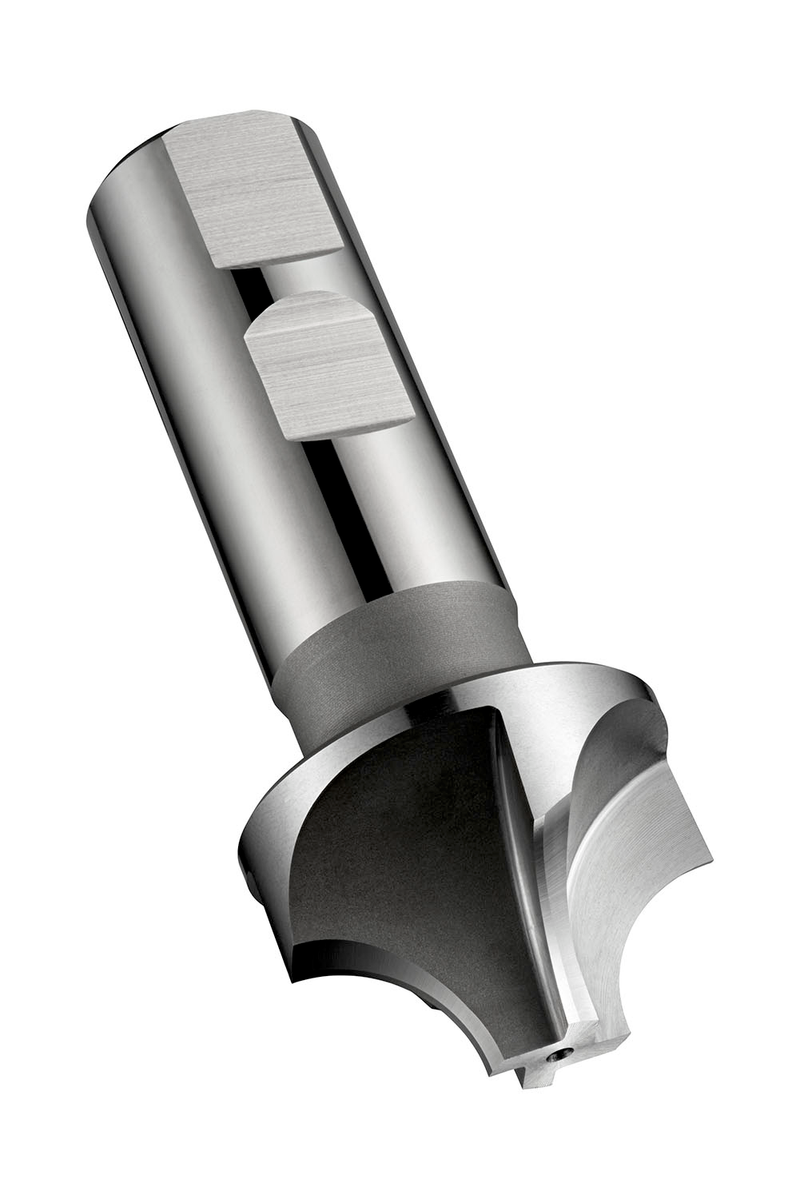

Fraise à arrondir d'angle série extra-courte à 4 dents, diamètre 24 mm, longueur totale 70 mm et rayon de profil 8 mm, selon la norme DORMER, avec un attachement Weldon de 16 mm, en HSS-E cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, l'aluminium moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C7008.0
GradeLumineux
Product Number5985433
Product FamilyC700
Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number74428
EAN7320760074428
File Type Download

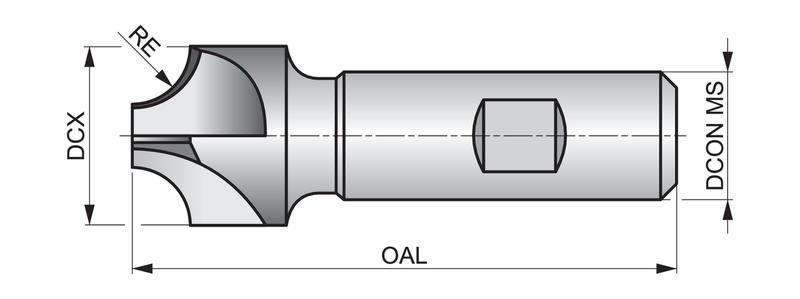

C7008.0 — Line Drawing PDF Download
