UGC DOR5985436
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$246.84 CAD - $246.84 CAD
$246.84 CAD
$246.84 CAD - $246.84 CAD
$246.84 CAD

Vendu en lots de : 1

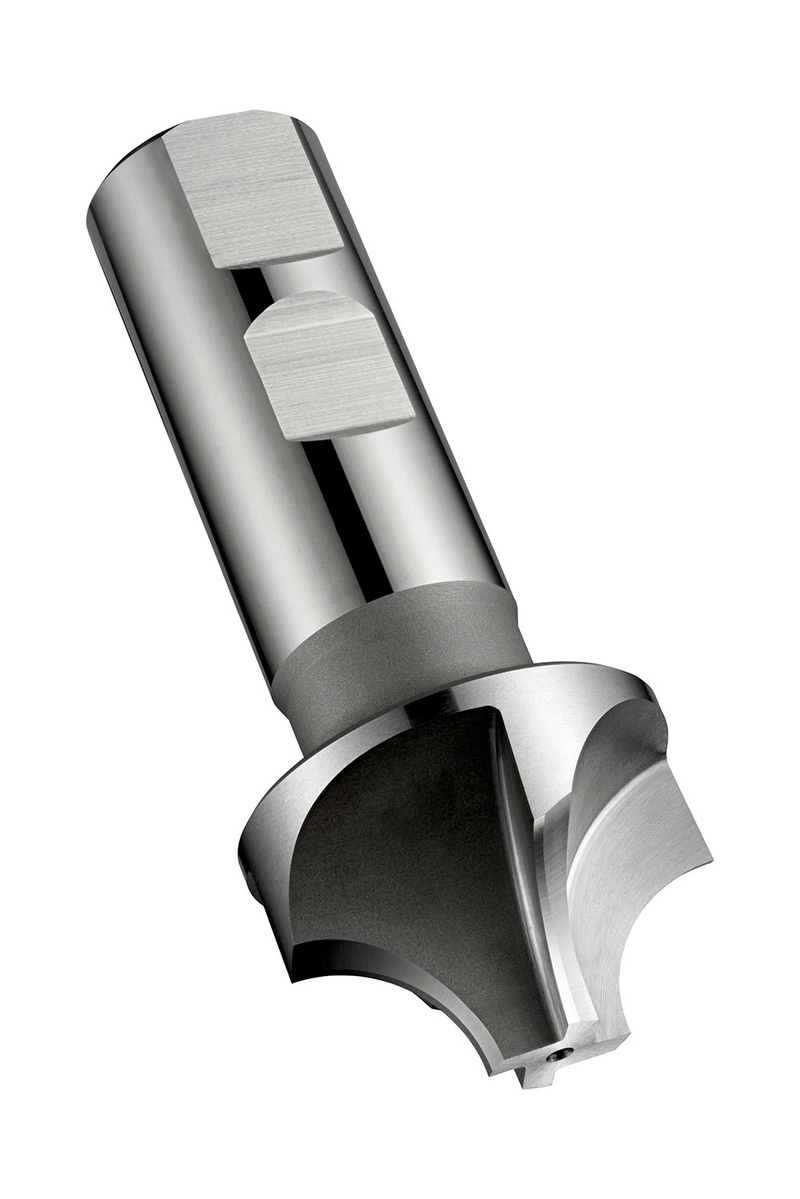

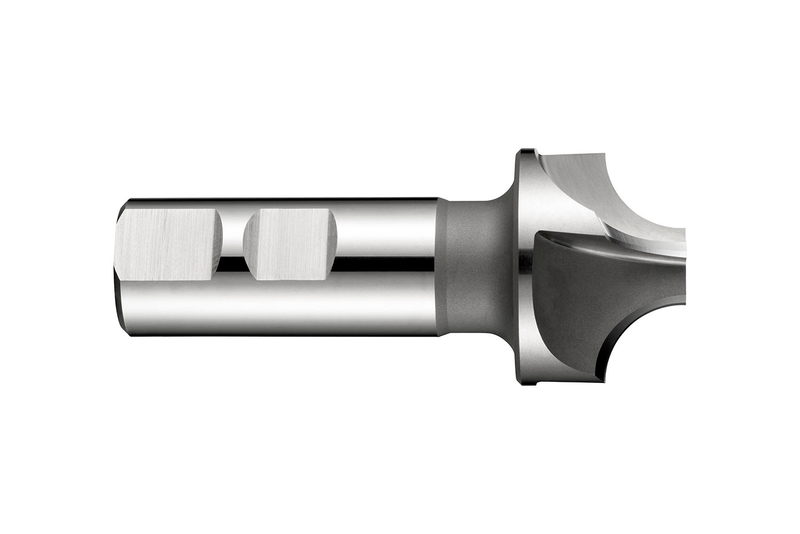

Fraise à arrondir d'angle, série extra-courte, 4 dents, diamètre 28mm, longueur totale 85mm et rayon de profil 9mm, selon la norme DORMER avec une queue Weldon de 20mm, HSS-E au cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, moulé, le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C7009.0
GradeLumineux
Product Number5985436
Product FamilyC700
Insert Geometry
Corner Radius — in (RE)0.3543"
Corner Radius — mm (RE)9 mm

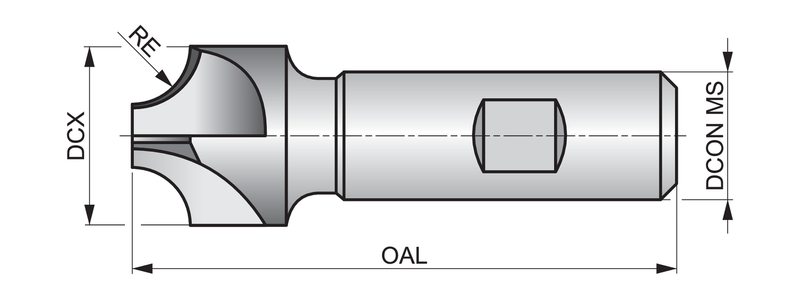

Dimensions
Overall Length — in (OAL)3.3465"
Overall Length — mm (OAL)85.0 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm

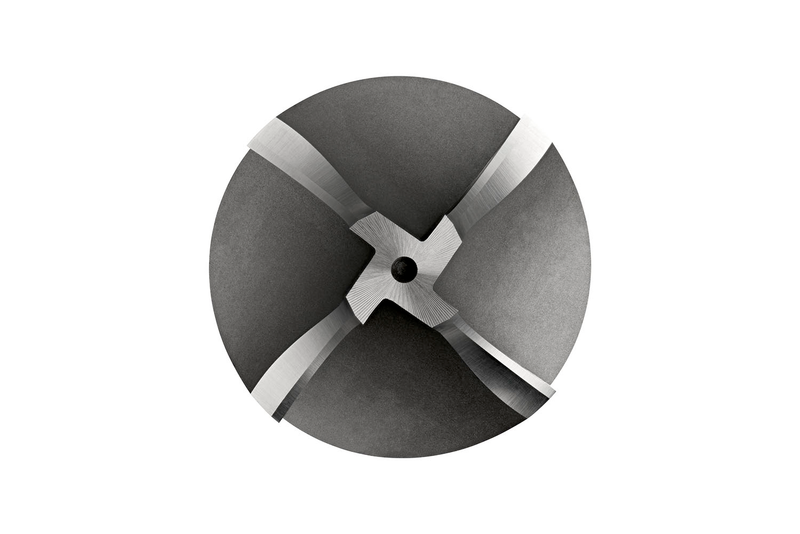

Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number127063
EAN7320760127063
File Type Download
C7009.0 — Line Drawing PDF Download
