UGC DOR5985462
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$88.27 CAD - $88.27 CAD
$88.27 CAD
$88.27 CAD - $88.27 CAD
$88.27 CAD

Vendu en lots de : 1

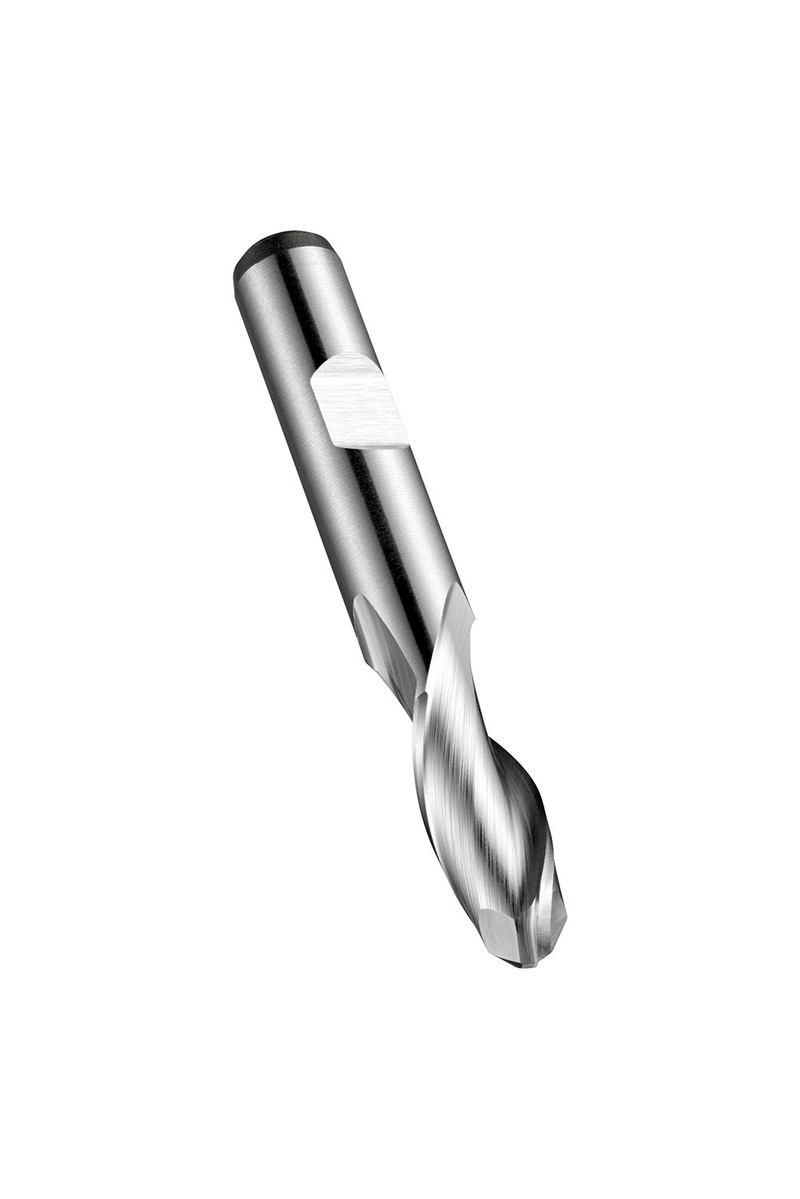

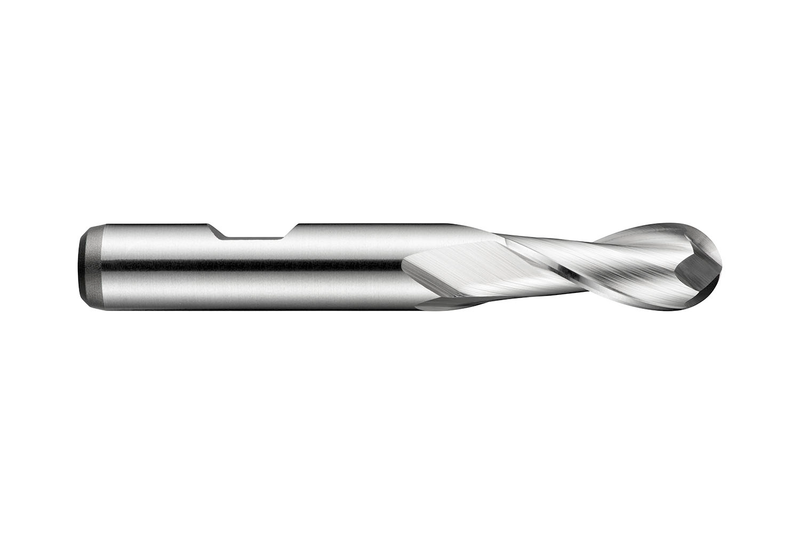

Fraise boule courte 2 dents, diamètre 10mm, longueur de coupe 22mm, longueur totale 72mm, rayon de profil complet 5mm, selon norme DIN 844 K avec queue Weldon 10mm, HSS-E cobalt brillante, hélice 30° et angle de dépouille 12° pour copiage dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50510.0
GradeLumineux
Product Number5985462
Product FamilyC505

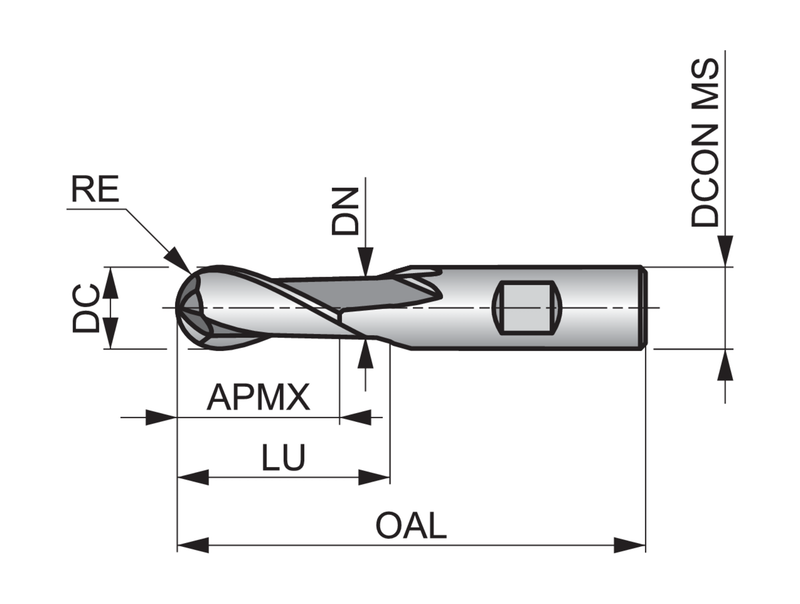

Insert Geometry
Corner Radius — in (RE)0.1969"
Corner Radius — mm (RE)5 mm
Depth of Cut Max — in (APMX)0.8661"
Depth of Cut Max — mm (APMX)22.0 mm
Dimensions
Cutting Diameter — in (DC)0.3937"
Cutting Diameter — mm (DC)10.0 mm
Overall Length — in (OAL)2.8346"
Overall Length — mm (OAL)72.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue de Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number73520
EAN7320760073520
File Type Download
C50510.0 — Line Drawing PDF Download
