UGC DOR5985466
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$89.33 CAD - $89.33 CAD
$89.33 CAD
$89.33 CAD - $89.33 CAD
$89.33 CAD

Vendu en lots de : 1

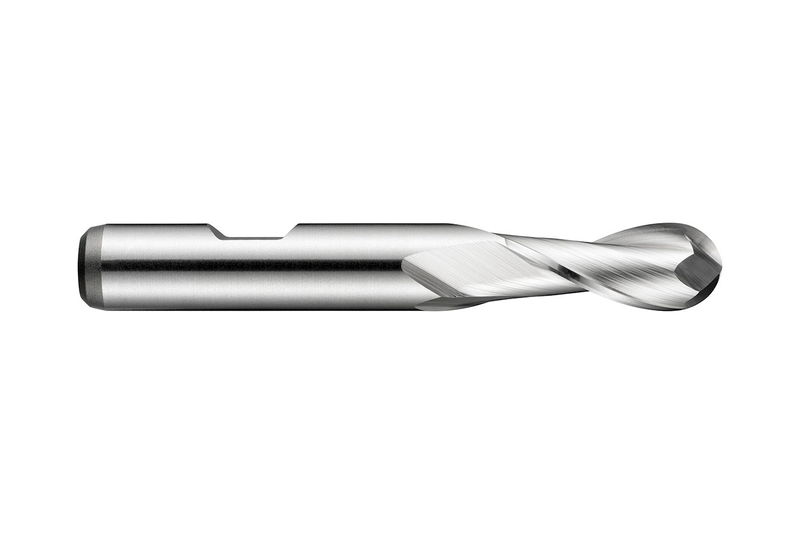

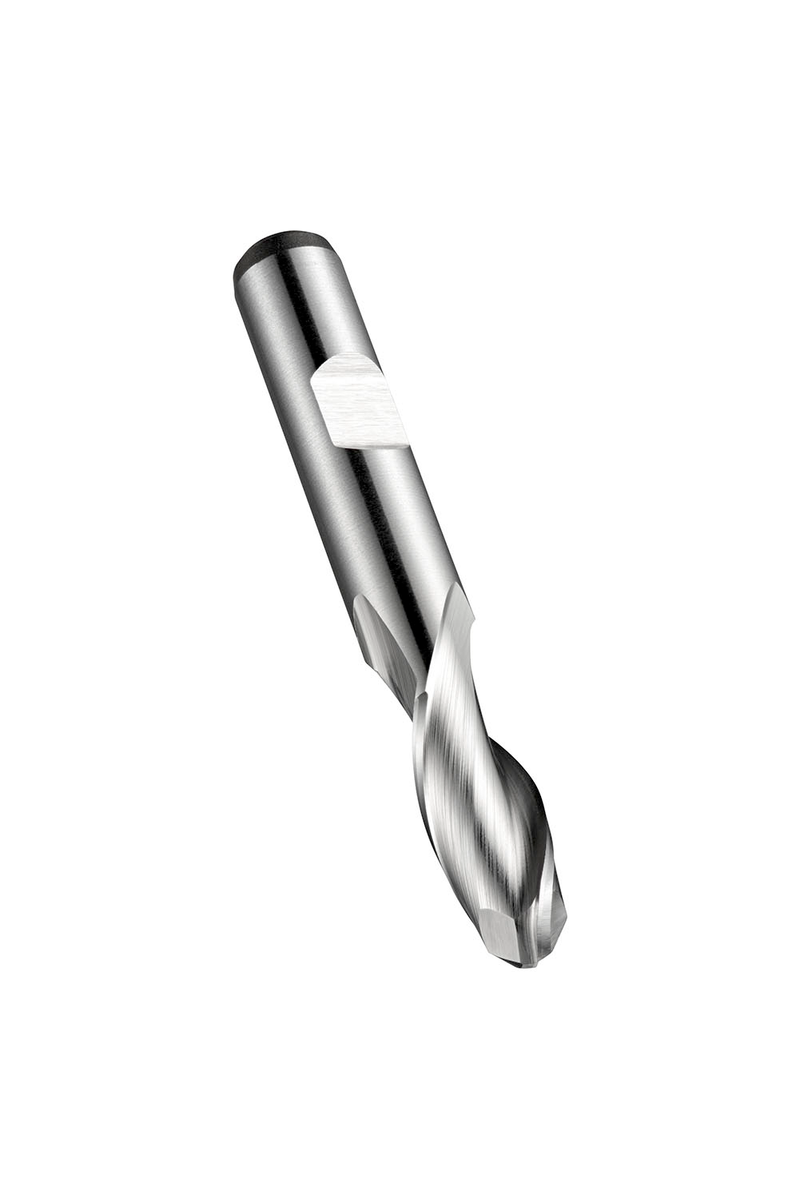

Fraise boule courte 2 dents, diamètre 12mm avec longueur de coupe de 26mm, longueur totale de 83mm et rayon de profil complet de 6mm, selon la norme DIN 844 K avec une queue Weldon de 12mm, en HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage en copie dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50512.0
GradeLumineux
Product Number5985466
Product FamilyC505

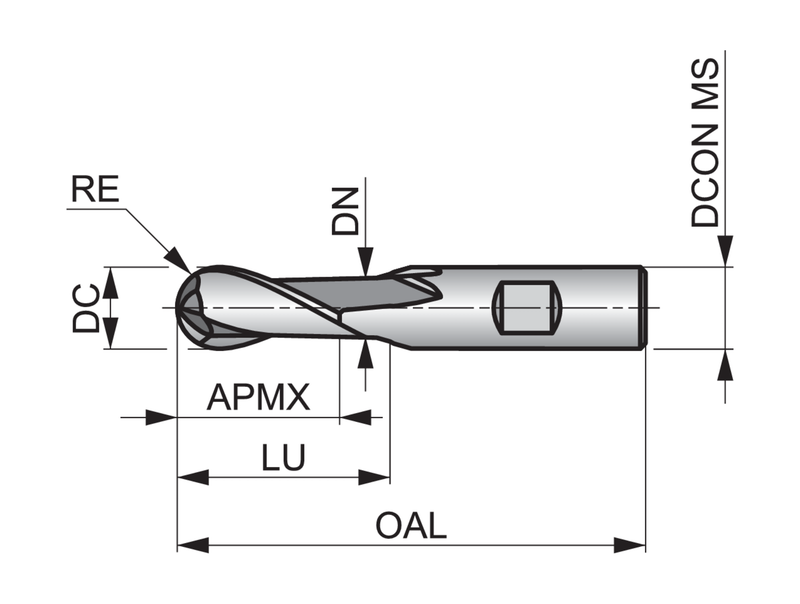

Insert Geometry
Corner Radius — in (RE)0.2362"
Corner Radius — mm (RE)6 mm
Depth of Cut Max — in (APMX)1.0236"
Depth of Cut Max — mm (APMX)26.0 mm
Dimensions
Cutting Diameter — in (DC)0.4724"
Cutting Diameter — mm (DC)12.0 mm
Overall Length — in (OAL)3.2677"
Overall Length — mm (OAL)83.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number73537
EAN7320760073537
File Type Download
C50512.0 — Line Drawing PDF Download
