C7002.0
C7002.0
C7002.0
C7002.0

C7002.0

UGC DOR5985469
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$219.36 CAD - $219.36 CAD
$219.36 CAD
$219.36 CAD - $219.36 CAD
$219.36 CAD

Vendu en lots de : 1

Fraise à arrondir les angles extra-courte 4 dents, diamètre 10 mm avec une longueur totale de 60 mm et un rayon de profil de 2 mm, selon la norme DORMER avec un attachement Weldon de 10 mm, HSS-E au cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C7002.0
GradeLumineux
Product Number5985469
Product FamilyC700

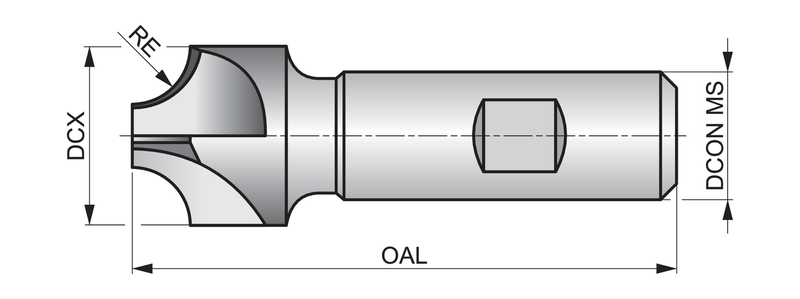

Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Dimensions
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number74343
EAN7320760074343
File Type Download
C7002.0 — Line Drawing PDF Download
