D745160,0X2,5
D745160,0X2,5
D745160,0X2,5

D745160,0X2,5

UGC DOR5985471
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$188.57 CAD - $188.57 CAD
$188.57 CAD
$188.57 CAD - $188.57 CAD
$188.57 CAD

Vendu en lots de : 1

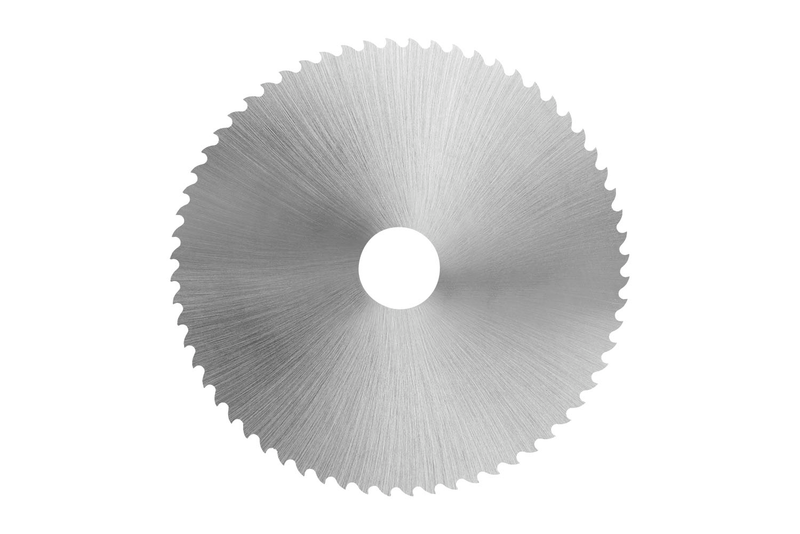

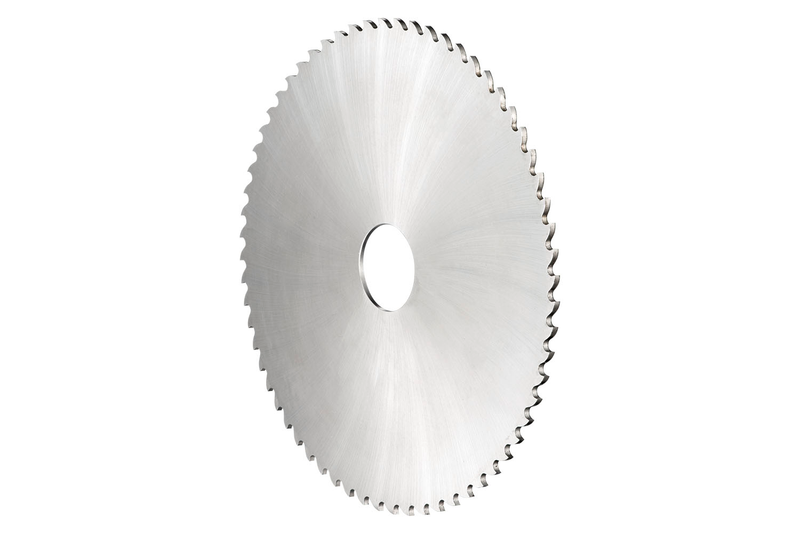

Scie à refendre en métal à pas grossier et 64 dents, diamètre 160 mm avec une largeur de coupe de 2,5 mm, selon la norme DIN 1838 avec un alésage de 32 mm, HSS avec finition brillante et angle de coupe de 15° pour le sciage de tronçonnage, l'entaillage peu profond et l'entaillage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)D745160.0X2.5
Product Name (ISO)D745160,0X2,5
GradeLumineux
Product Number5985471
Product FamilyD745

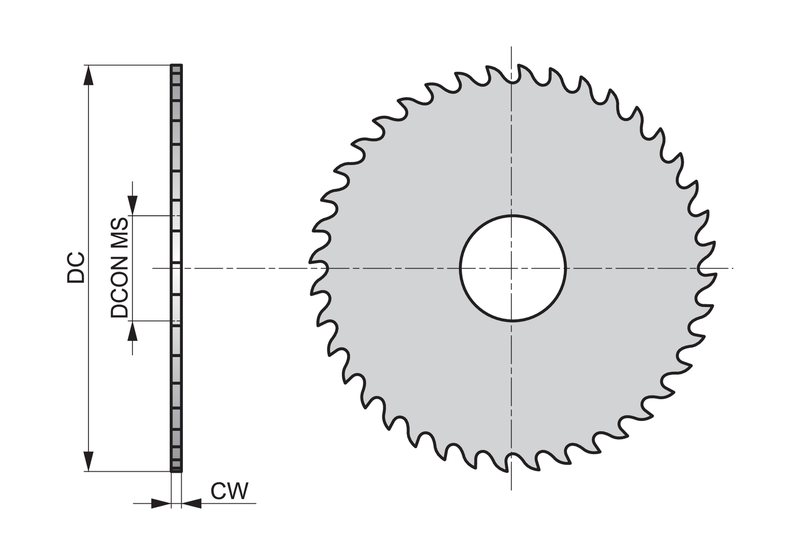

Dimensions
Cutting Diameter — in (DC)6.2992"
Cutting Diameter — mm (DC)160.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)64
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number284186
EAN7320760284186
File Type Download
D745160,0X2,5 — Line Drawing PDF Download
