UGC DOR5985473
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$134.26 CAD - $134.26 CAD
$134.26 CAD
$134.26 CAD - $134.26 CAD
$134.26 CAD

Vendu en lots de : 1

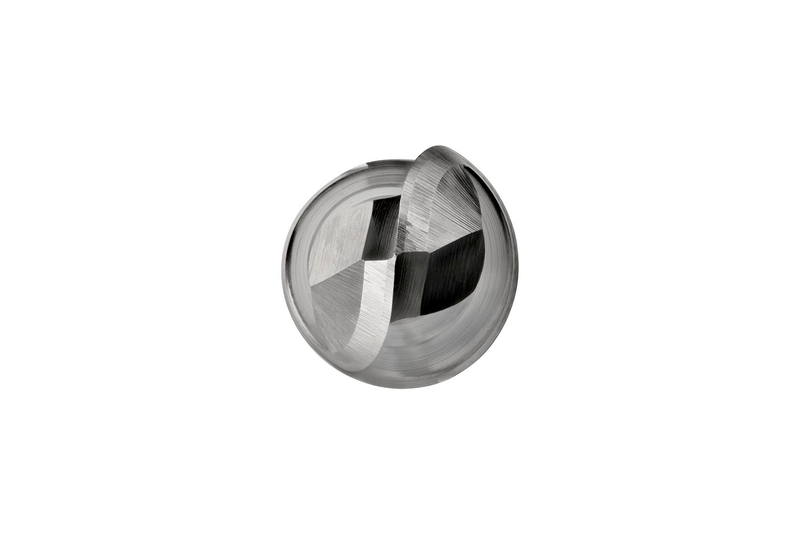

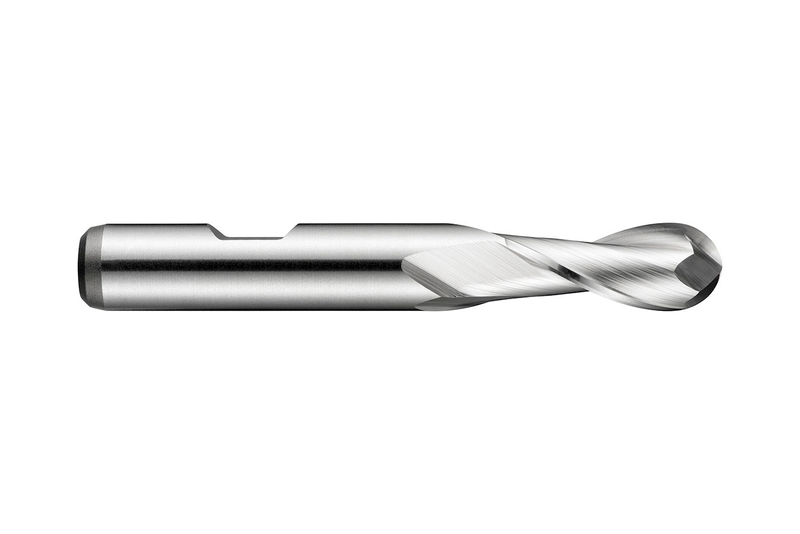

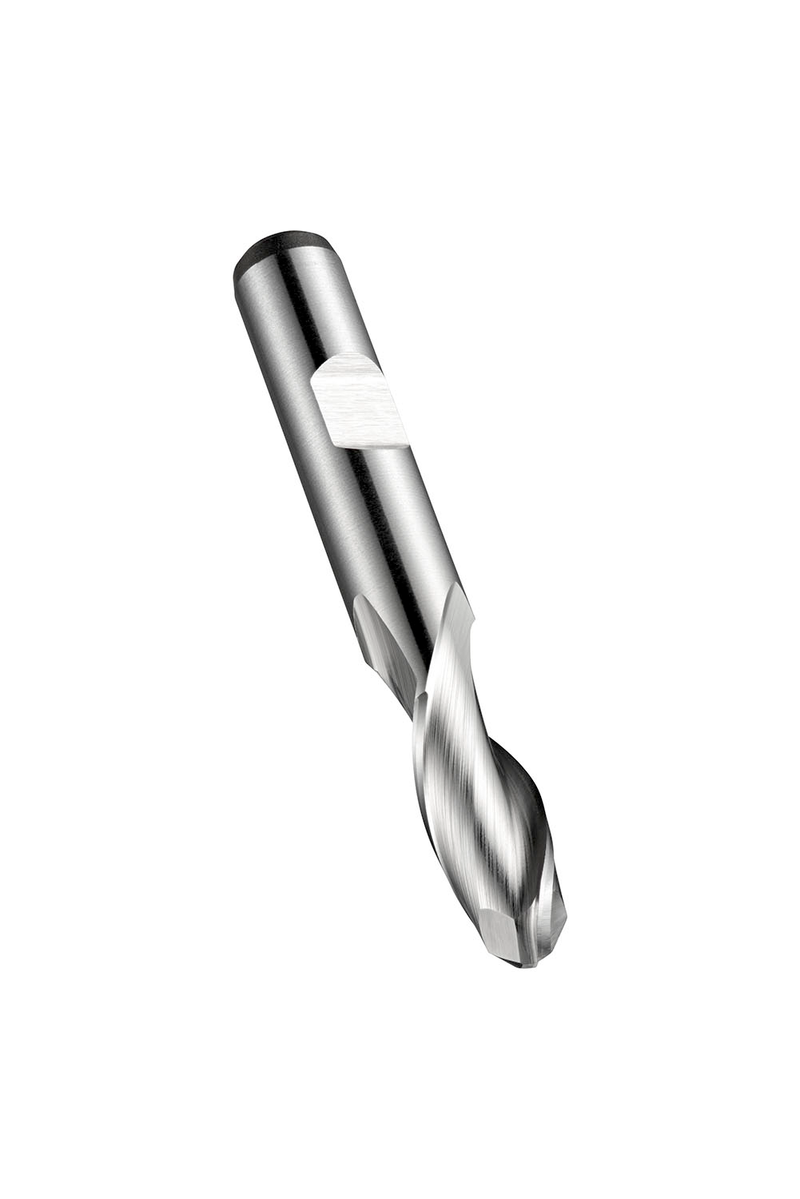

Fraise boule courte 2 dents, diamètre 16mm avec une longueur de coupe de 32mm, une longueur totale de 92mm, un dégagement de 43,5mm avec collet fin et un rayon de profil complet de 8mm, selon la norme DIN 844 K avec un queue Weldon de 16mm, en HSS-E à base de cobalt finition brillante, hélice de 30° et angle de coupe de 12° pour le fraisage de copiage dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50516.0
GradeLumineux
Product Number5985473
Product FamilyC505

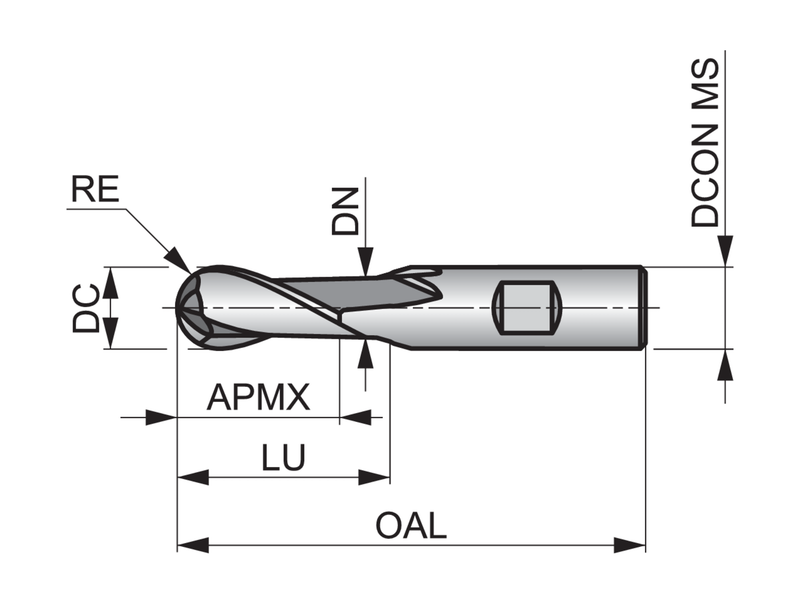

Insert Geometry
Corner Radius — in (RE)0.315"
Corner Radius — mm (RE)8 mm
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number73551
EAN7320760073551
File Type Download
C50516.0 — Line Drawing PDF Download
