D74550.0X1.2
D74550.0X1.2
D74550.0X1.2

D74550.0X1.2

UGC DOR5985475
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.54 CAD - $43.54 CAD
$43.54 CAD
$43.54 CAD - $43.54 CAD
$43.54 CAD

Vendu en lots de : 5

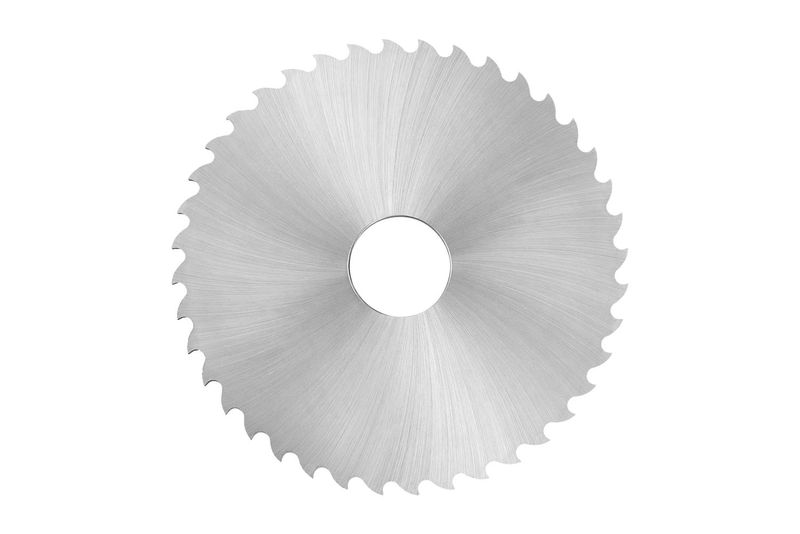

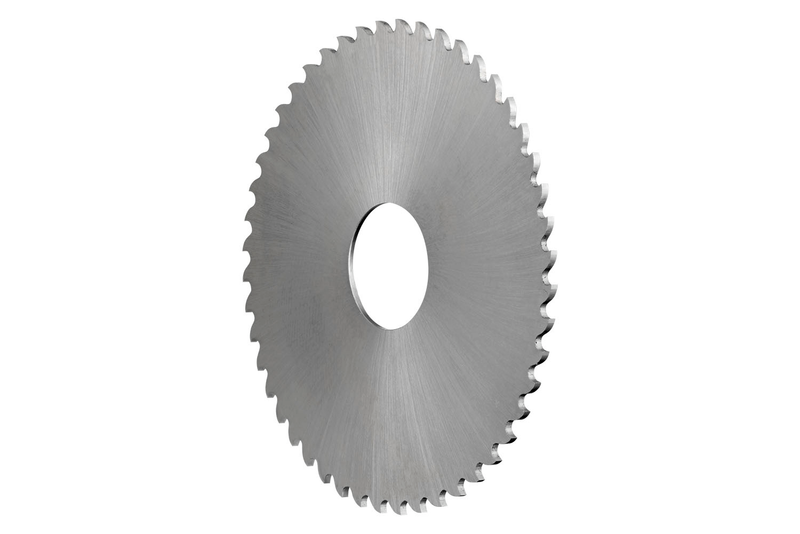

Scie à refendre en métal à pas grossier et 40 dents, diamètre 50 mm avec une largeur de coupe de 1,2 mm, selon la norme DIN 1838 avec un alésage de 13 mm, en HSS finition brillante, et un angle de coupe de 15° pour le sciage de tronçonnage, le rainurage peu profond et le rainurage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74550.0X1.2
GradeLumineux
Product Number5985475
Product FamilyD745
Dimensions
Cutting Diameter — in (DC)1.9685"
Cutting Diameter — mm (DC)50.0 mm
Connection Dia. — in (DCON)0.5118"
Connection Dia. — mm (DCON)13.0 mm
Number of Flutes (NOF)40
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283592
EAN7320760283592
File Type Download

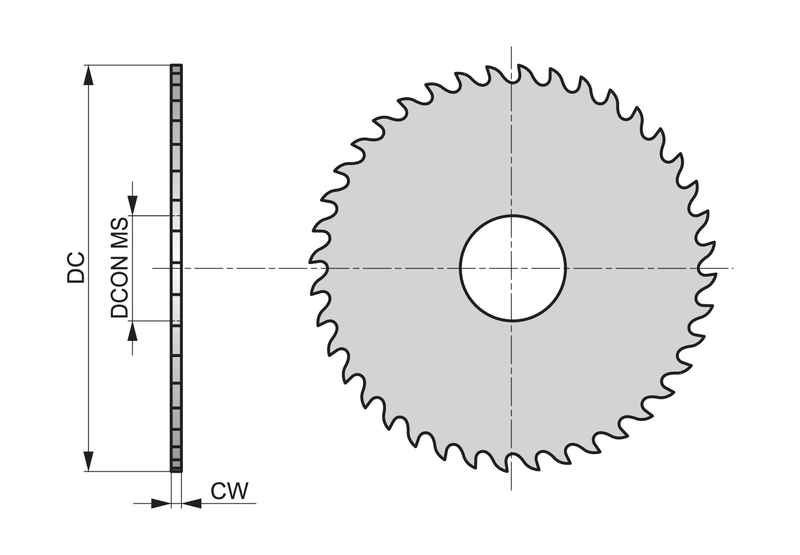

D74550.0X1.2 — Line Drawing PDF Download
