UGC DOR5985485
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$177.07 CAD - $177.07 CAD
$177.07 CAD
$177.07 CAD - $177.07 CAD
$177.07 CAD

Vendu en lots de : 1

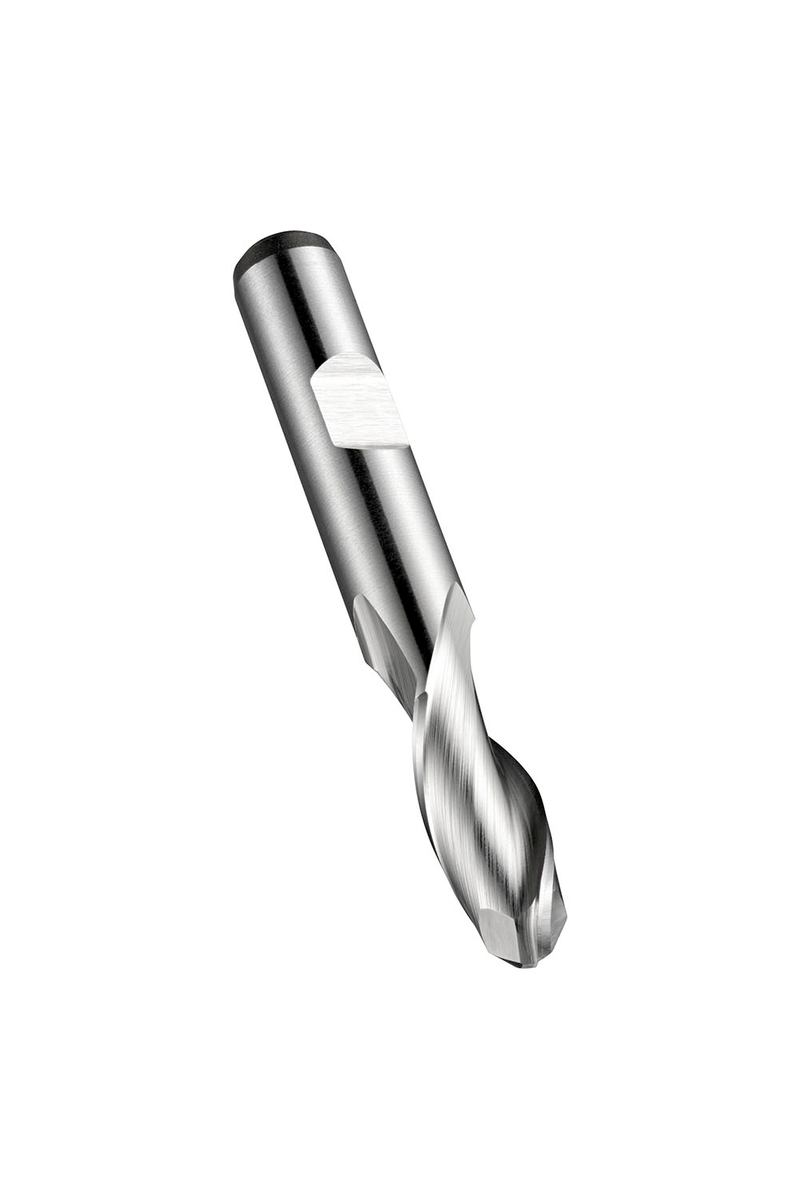

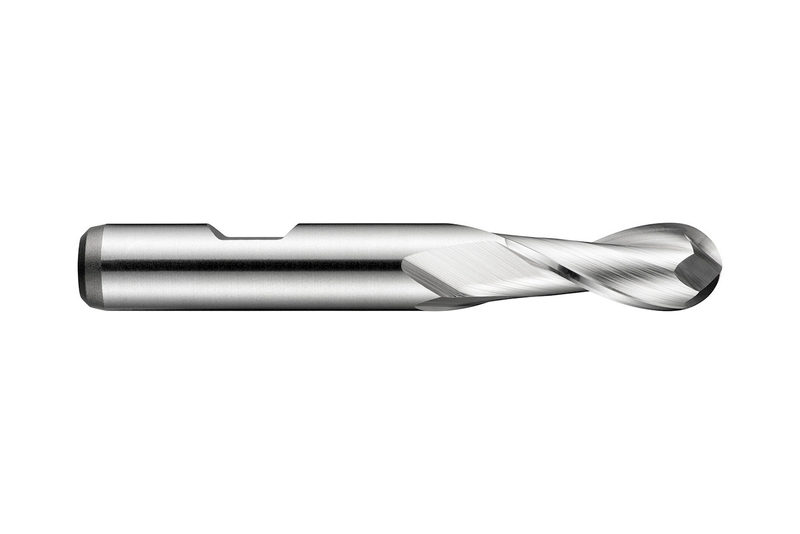

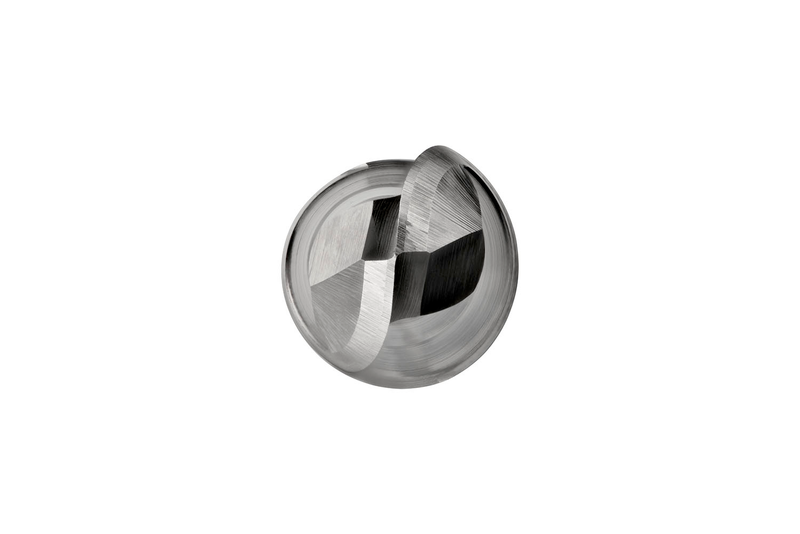

Fraise carbure monobloc à nez sphérique série courte 2 dents, diamètre 20mm, longueur de coupe 38mm, longueur totale 104mm, longueur utile 53.5mm avec dégagement de col et rayon de 10mm à profil complet, selon la norme DIN 844 K avec un attachement Weldon de 20mm, HSS-E au cobalt avec finition brillante, hélice à 30° et angle de dépouille à 12° pour le fraisage de profil en acier d'usinage facile et en cuivre ou alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50520.0
GradeLumineux
Product Number5985485
Product FamilyC505
Insert Geometry
Corner Radius — in (RE)0.3937"
Corner Radius — mm (RE)10 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm

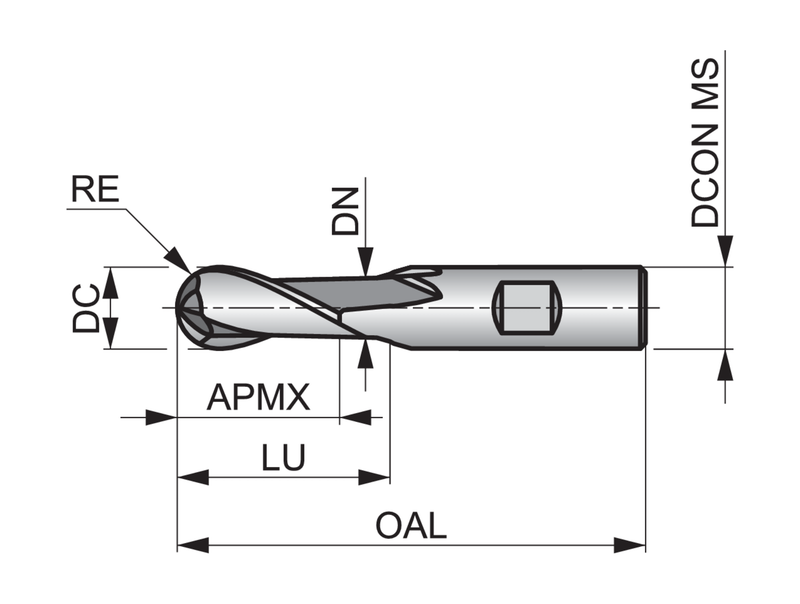

Dimensions
Cutting Diameter — in (DC)0.7874"
Cutting Diameter — mm (DC)20.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number73575
EAN7320760073575
File Type Download
C50520.0 — Line Drawing PDF Download
