D74550.0X2.0
D74550.0X2.0
D74550.0X2.0

D74550.0X2.0

UGC DOR5985486
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$51.49 CAD - $51.49 CAD
$51.49 CAD
$51.49 CAD - $51.49 CAD
$51.49 CAD

Vendu en lots de : 5

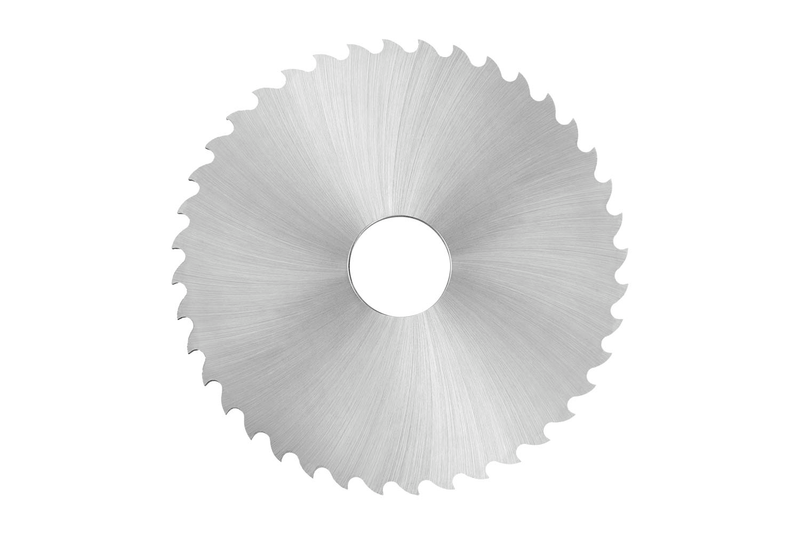

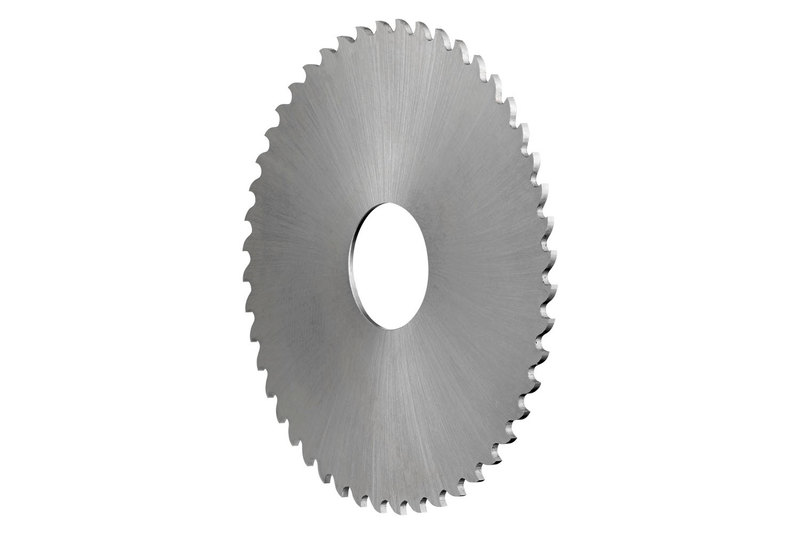

Scie circulaire à refendre le métal à pas grossier et 32 dents, diamètre 50mm avec une largeur de coupe de 2mm, conforme à la norme DIN 1838 avec un alésage de 13mm, HSS avec finition brillante, et un angle de coupe de 15° pour le tronçonnage, l'entaillage peu profond et l'entaillage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74550.0X2.0
GradeLumineux
Product Number5985486
Product FamilyD745

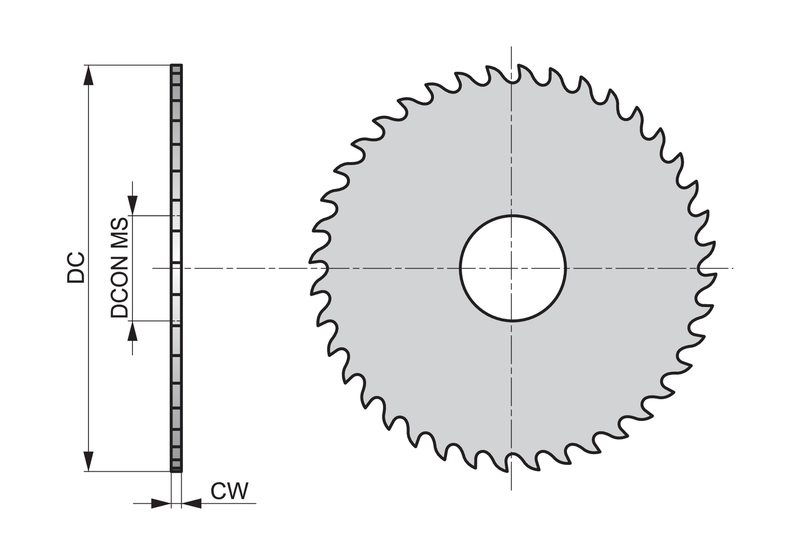

Dimensions
Cutting Diameter — in (DC)1.9685"
Cutting Diameter — mm (DC)50.0 mm
Connection Dia. — in (DCON)0.5118"
Connection Dia. — mm (DCON)13.0 mm
Number of Flutes (NOF)32
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283622
EAN7320760283622
File Type Download
D74550.0X2.0 — Line Drawing PDF Download
