UGC DOR5985488
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$229.40 CAD - $229.40 CAD
$229.40 CAD
$229.40 CAD - $229.40 CAD
$229.40 CAD

Vendu en lots de : 1

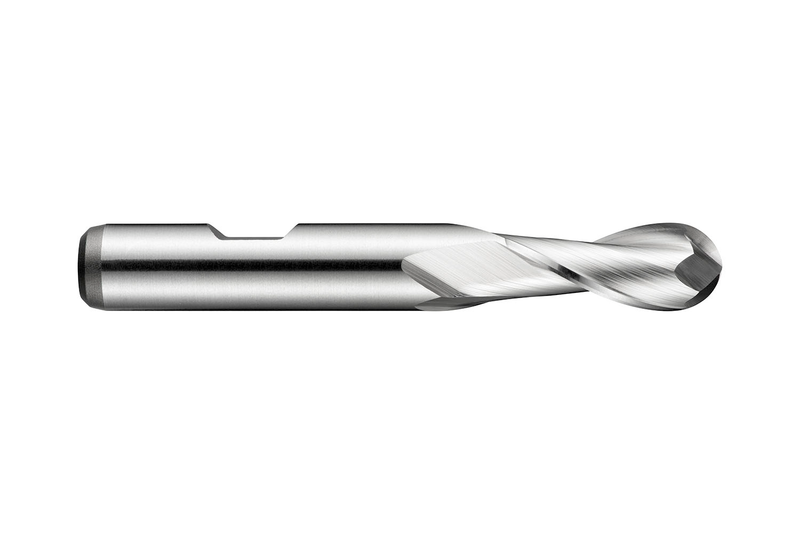

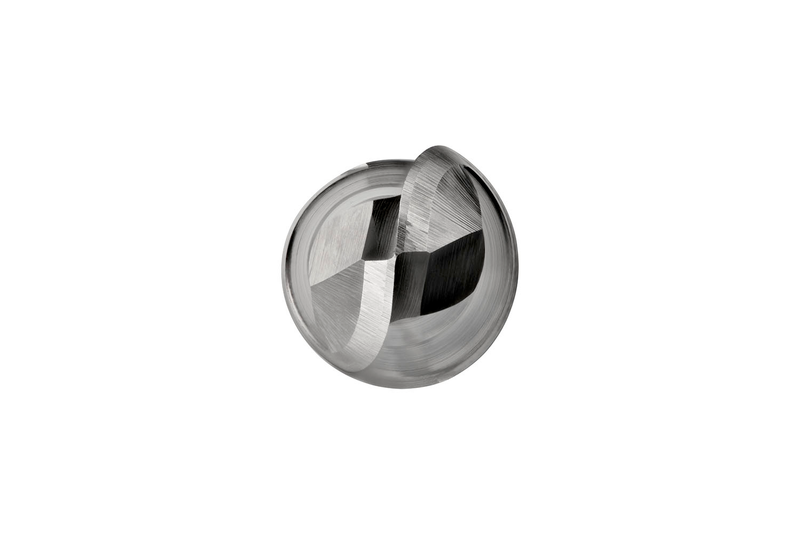

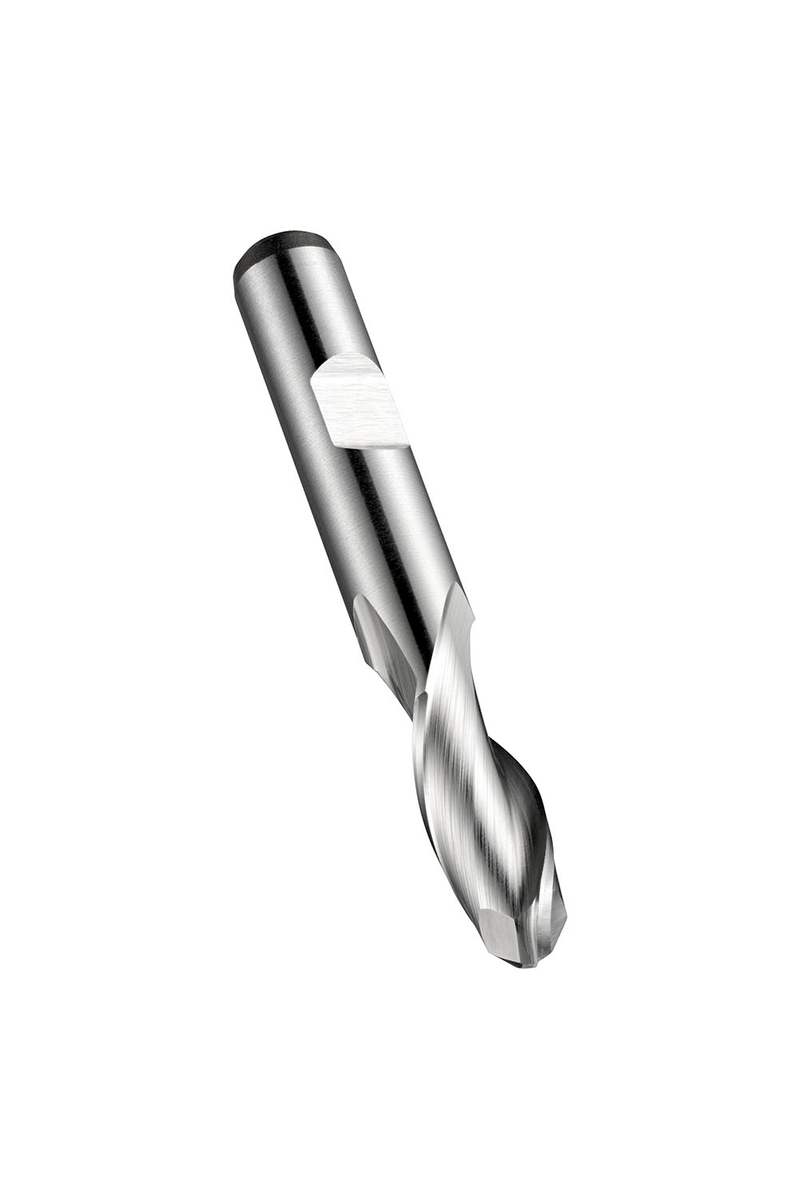

Fraise à l'extrémité sphérique courte à 2 arêtes de coupe, diamètre 22mm, longueur de coupe 38mm, longueur totale 104mm, portée 53.5mm avec dégagement et rayon de profil complet 11mm, selon la norme DIN 844 K avec une queue Weldon de 20mm, HSS-E à base de cobalt avec finition brillante, hélice à 30° et angle de dépouille de 12° pour le fraisage de copie dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50522.0
GradeLumineux
Product Number5985488
Product FamilyC505

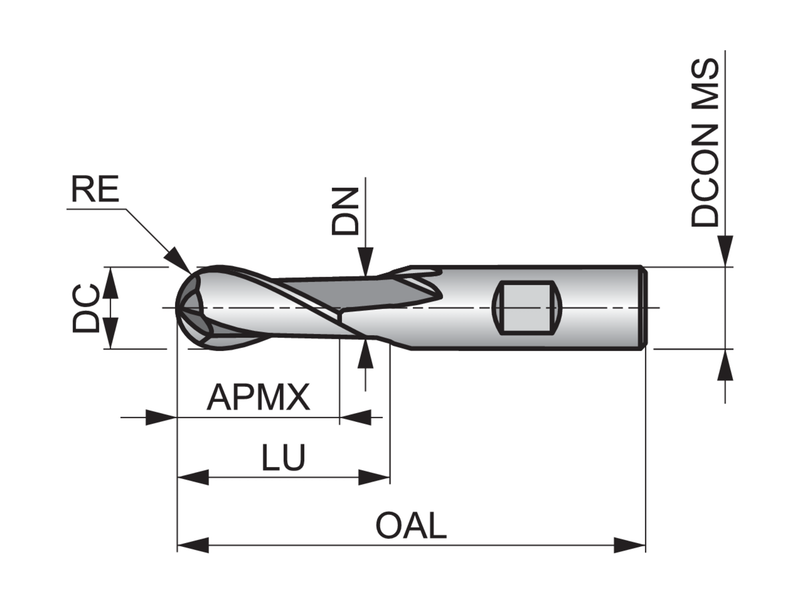

Insert Geometry
Corner Radius — in (RE)0.4331"
Corner Radius — mm (RE)11 mm
Depth of Cut Max — in (APMX)1.4961"
Depth of Cut Max — mm (APMX)38.0 mm
Dimensions
Cutting Diameter — in (DC)0.8661"
Cutting Diameter — mm (DC)22.0 mm
Overall Length — in (OAL)4.0945"
Overall Length — mm (OAL)104.0 mm
Usable Length — mm (LU)53.5 mm
Connection Dia. — in (DCON)0.7874"
Connection Dia. — mm (DCON)20.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number73582
EAN7320760073582
File Type Download
C50522.0 — Line Drawing PDF Download
