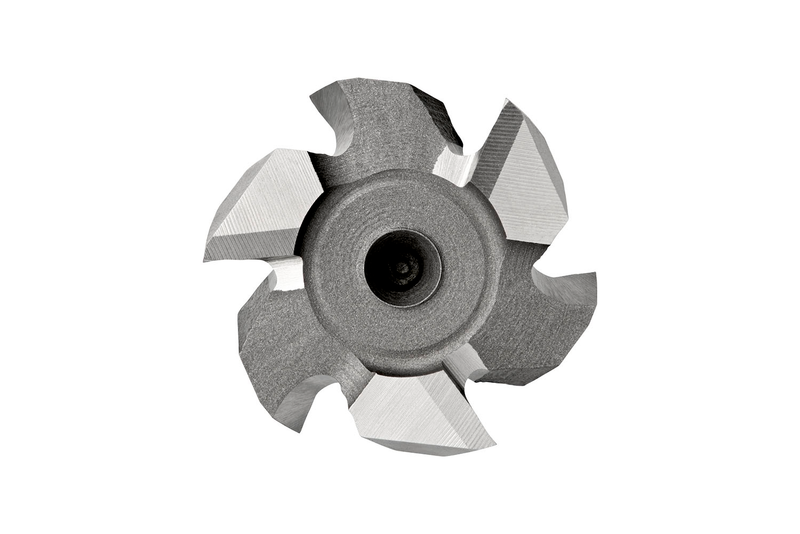

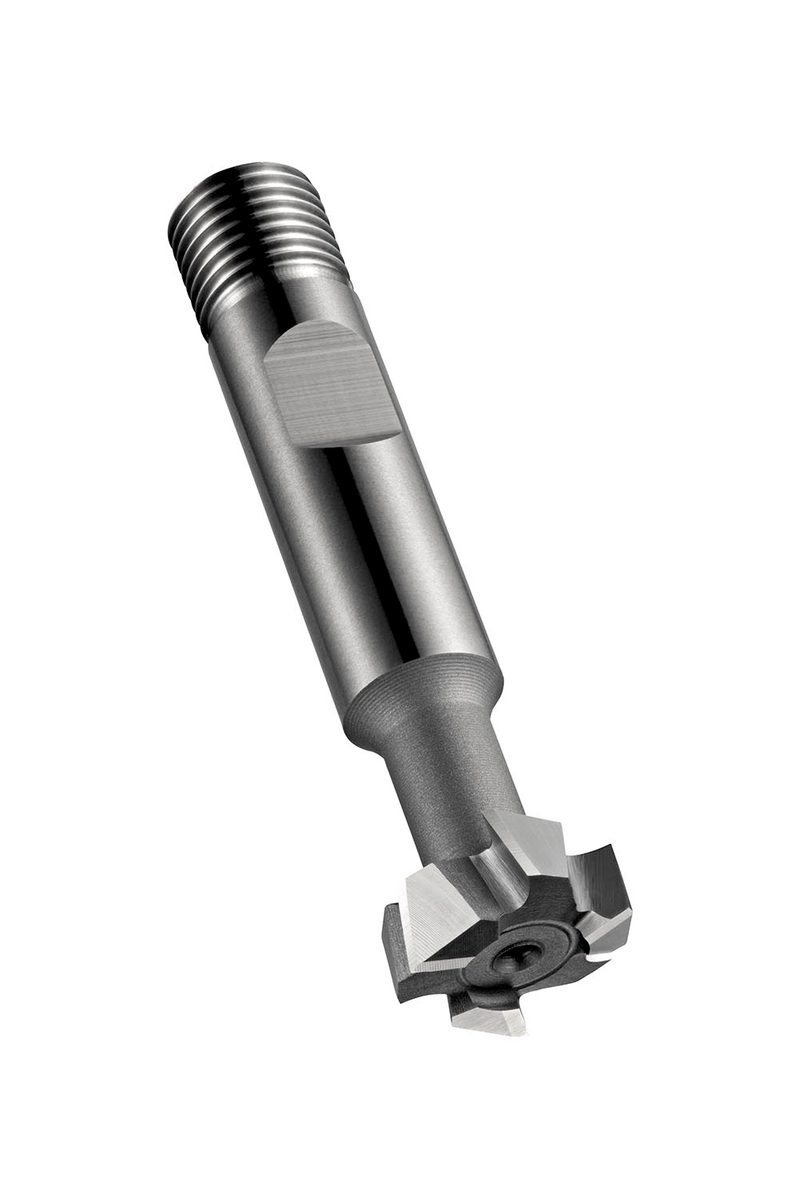

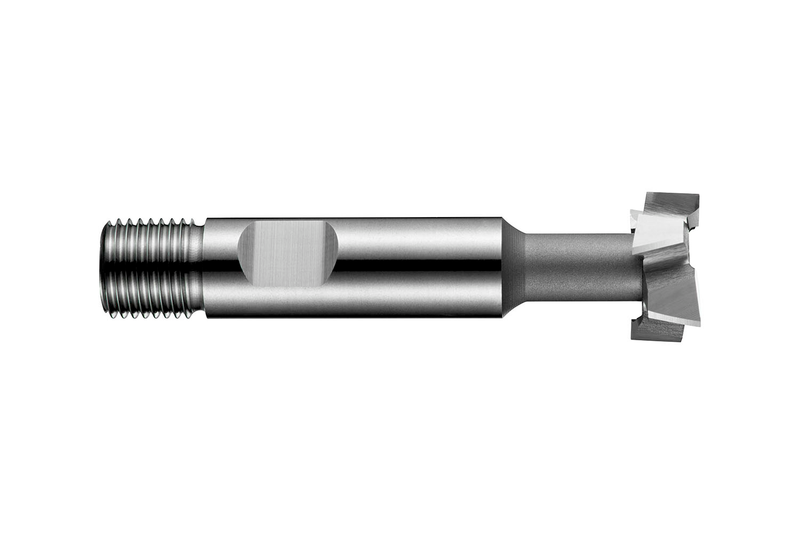

Fraise à rainurer en T à 6 dents, diamètre 11 mm avec une profondeur de coupe de 4 mm et une longueur totale de 53,5 mm, conforme à la norme DIN 851 avec une queue combinée de 10 mm à méplat weldon et filetage, en HSS-E au cobalt avec finition brillante, hélice de 15° et angle de coupe de 10° pour le fraisage de rainures en T dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C80011.0X5.0
GradeLumineux
Product Number5985489
Product FamilyC800
Insert Geometry
Depth of Cut Max — in (APMX)0.1575"
Depth of Cut Max — mm (APMX)4.0 mm

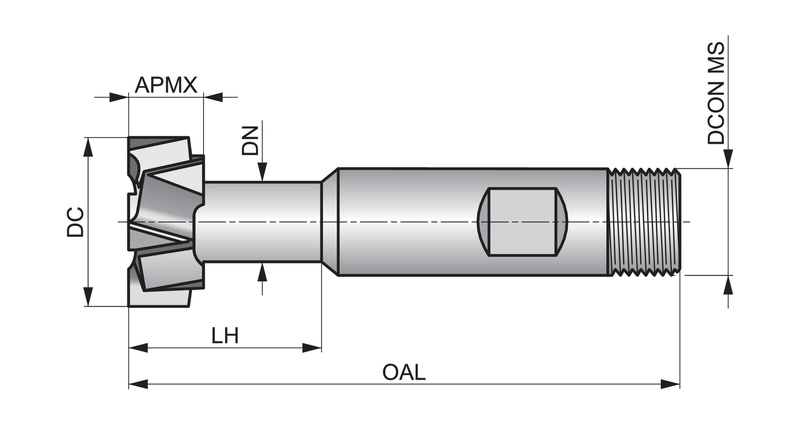

Dimensions
Cutting Diameter — in (DC)0.4331"
Cutting Diameter — mm (DC)11.0 mm
Overall Length — in (OAL)2.1063"
Overall Length — mm (OAL)53.5 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)15.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 851
Reference Numbers
EDP Number74435
EAN7320760074435
File Type Download
C80011.0X5.0 — Line Drawing PDF Download
