C80012,5X6,0
C80012,5X6,0
C80012,5X6,0
C80012,5X6,0

C80012,5X6,0

UGC DOR5985492
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$191.87 CAD - $191.87 CAD
$191.87 CAD
$191.87 CAD - $191.87 CAD
$191.87 CAD

Vendu en lots de : 1

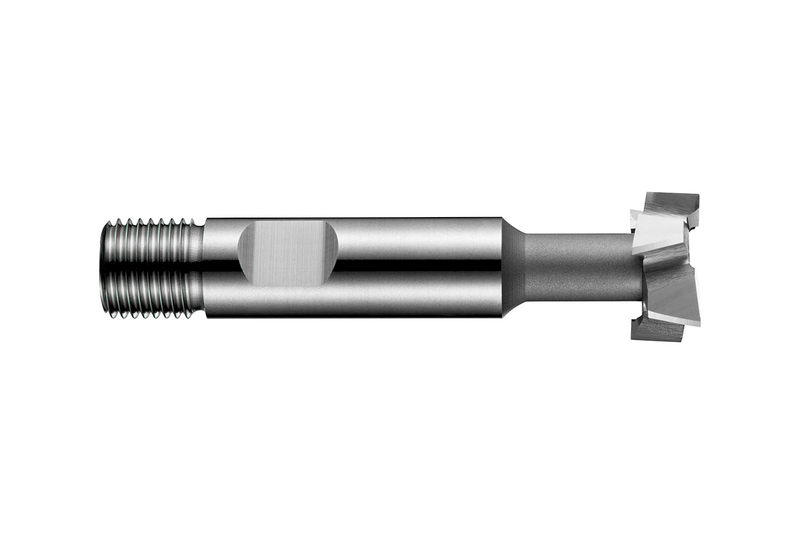

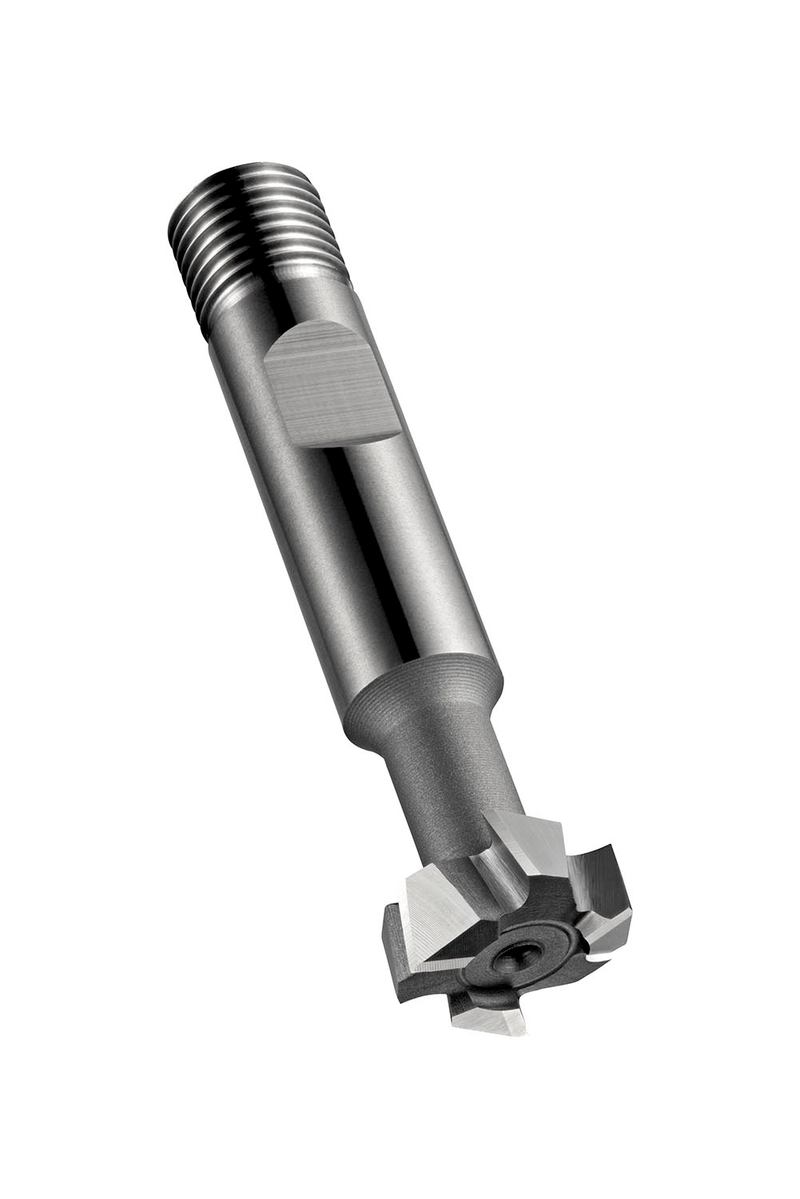

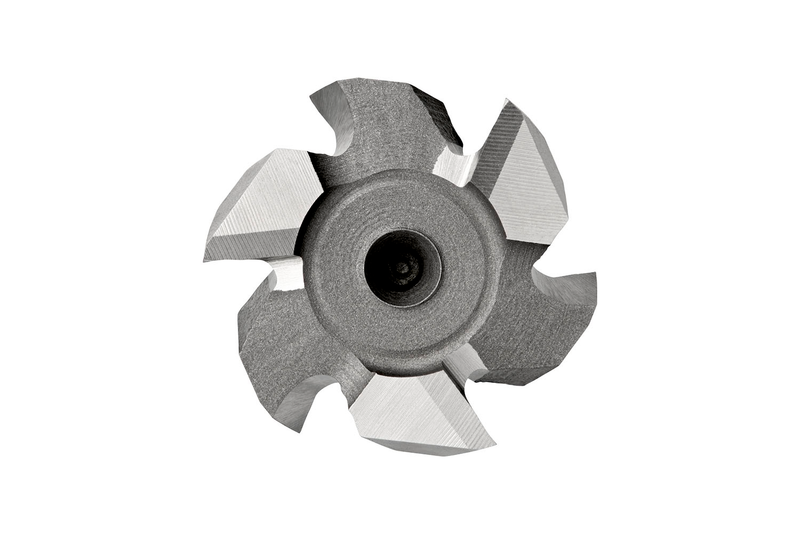

Fraise à rainurer en T à 6 dents, diamètre 12,5 mm, profondeur de coupe 6 mm et longueur totale 57 mm, conforme à la norme DIN 851 avec queue combinée de 10 mm avec méplat weldon et filetage, en HSS-E à base de cobalt avec finition brillante, hélice de 15° et angle de dépouille de 10° pour le fraisage de rainures en T dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C80012.5X6.0
GradeLumineux
Product Number5985492
Product FamilyC800
Insert Geometry
Depth of Cut Max — in (APMX)0.2362"
Depth of Cut Max — mm (APMX)6.0 mm
Dimensions
Cutting Diameter — in (DC)0.4921"
Cutting Diameter — mm (DC)12.5 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)15.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 851
Reference Numbers
EDP Number74442
EAN7320760074442
File Type Download

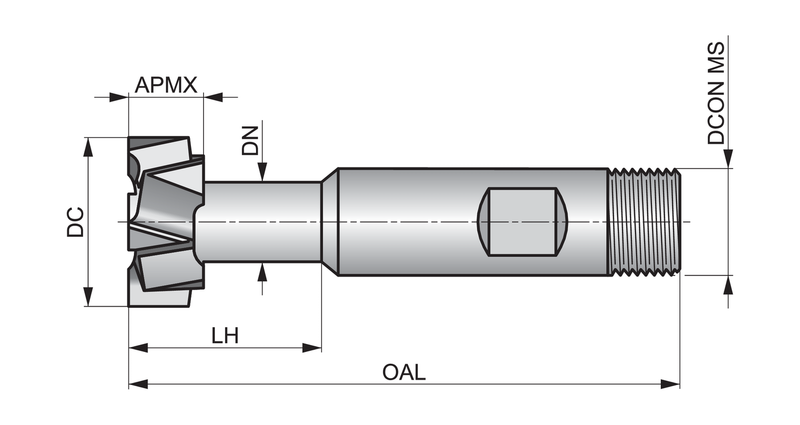

C80012,5X6,0 — Line Drawing PDF Download
