UGC DOR5985495
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$218.30 CAD - $218.30 CAD
$218.30 CAD
$218.30 CAD - $218.30 CAD
$218.30 CAD

Vendu en lots de : 1

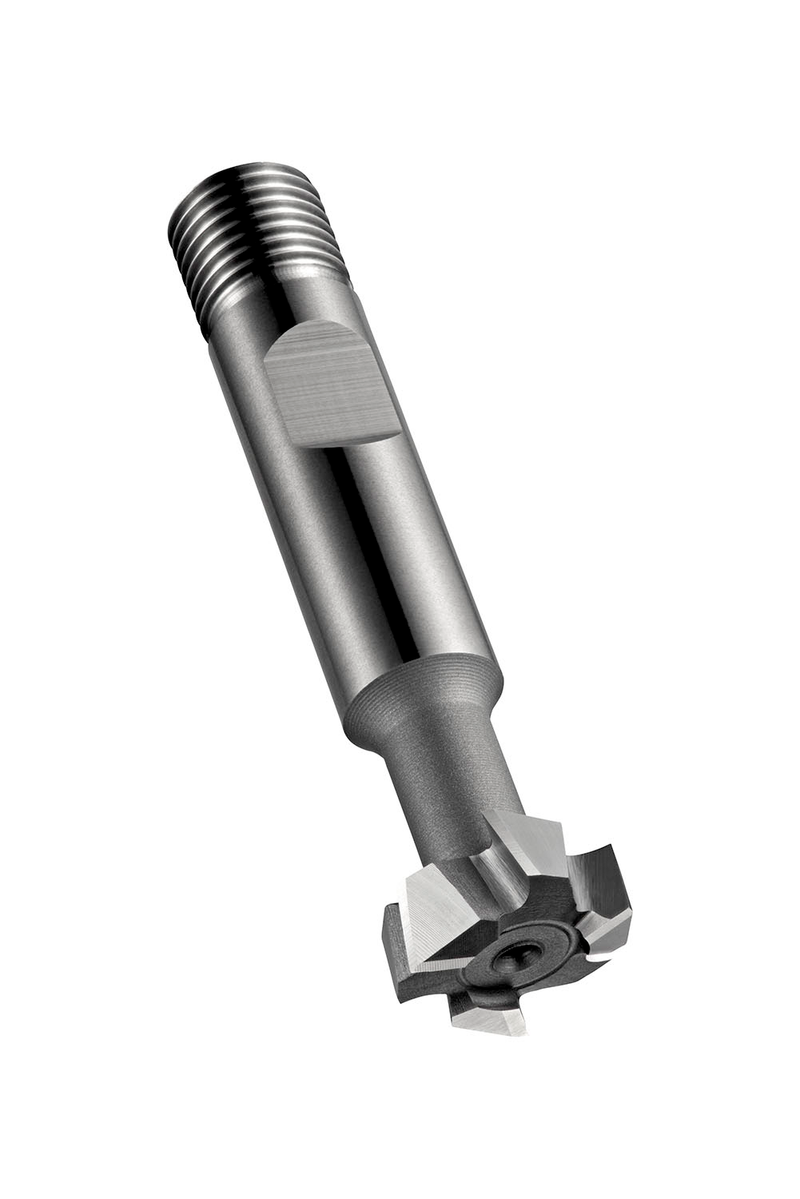

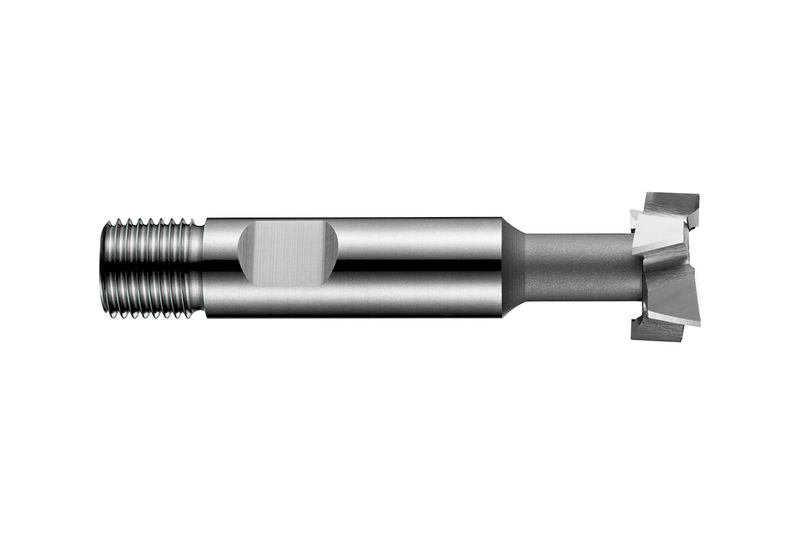

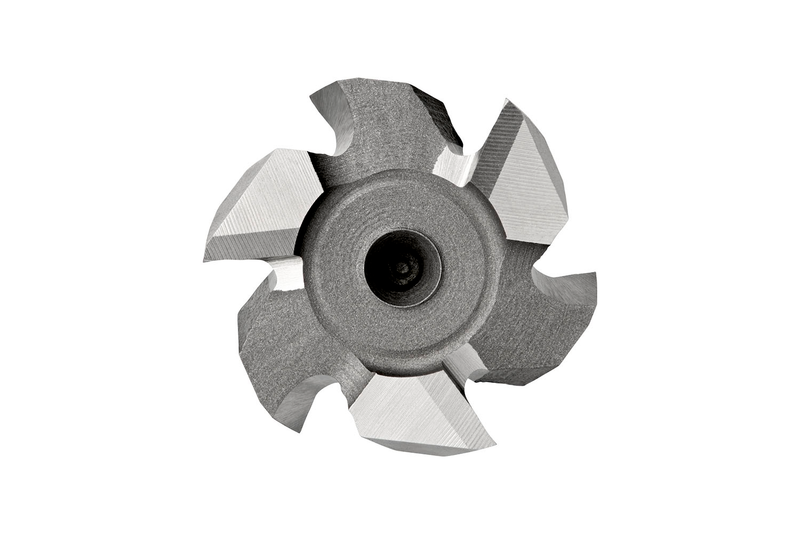

Fraise à rainurer en T à 6 dents, diamètre 16mm avec profondeur de coupe de 8mm et longueur totale de 62mm, conforme à la norme DIN 851 avec queue combinée de 10mm avec méplat weldon et filetage, en HSS-E au cobalt avec finition brillante, hélice de 15° et angle de coupe de 10° pour le fraisage de rainures en T dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C80016.0X8.0
GradeLumineux
Product Number5985495
Product FamilyC800
Insert Geometry
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm

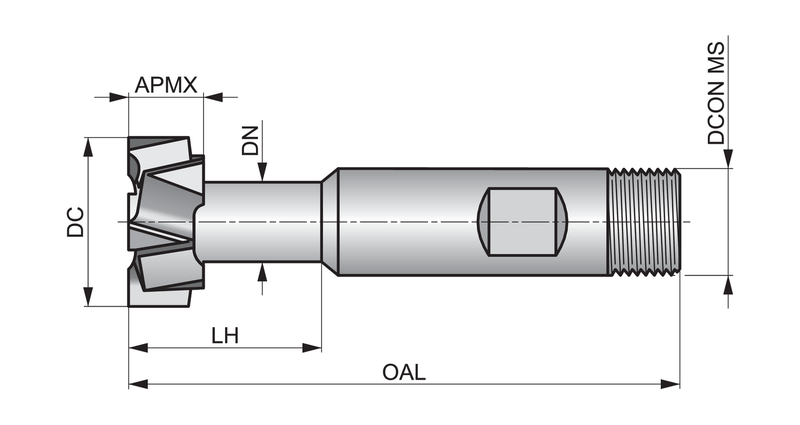

Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)2.4409"
Overall Length — mm (OAL)62.0 mm
Connection Dia. — in (DCON)0.3937"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)6
Helix Angle (FHA)15.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 851
Reference Numbers
EDP Number74459
EAN7320760074459
File Type Download
C80016.0X8.0 — Line Drawing PDF Download
