UGC DOR5985500
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.43 CAD - $63.43 CAD
$63.43 CAD
$63.43 CAD - $63.43 CAD
$63.43 CAD

Vendu en lots de : 1

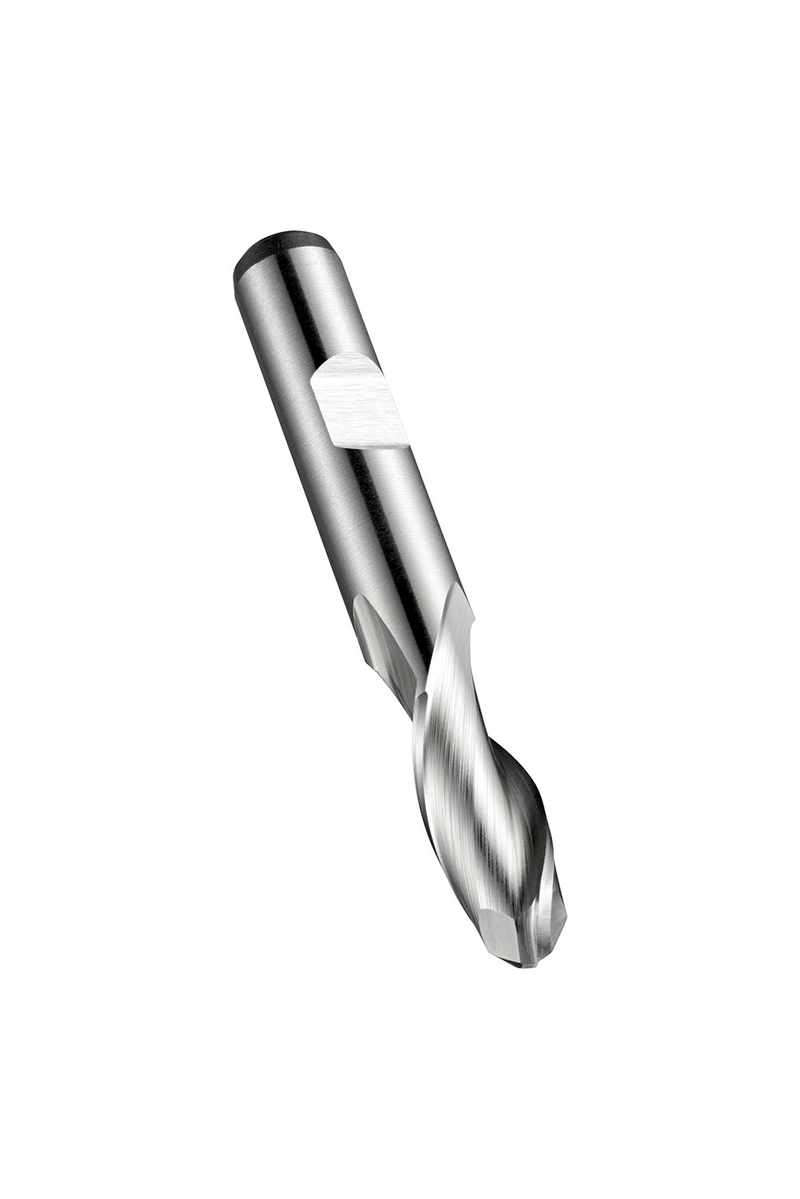

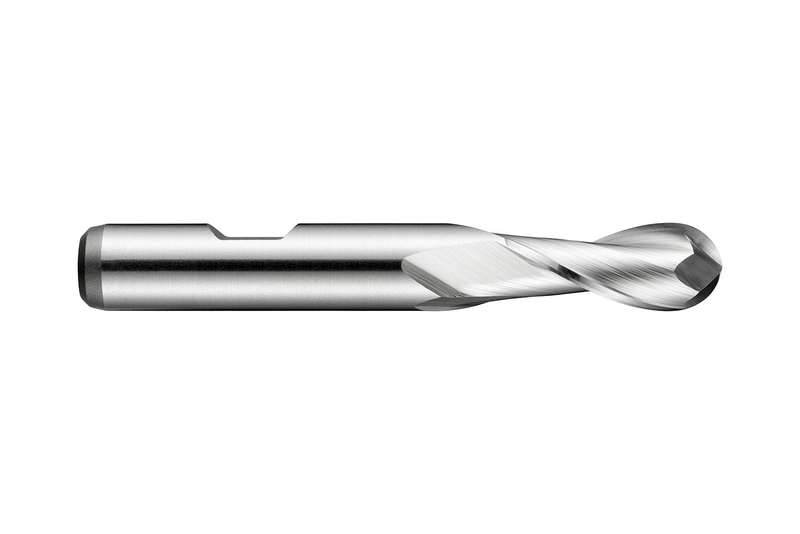

Fraise carbure monobloc à tête sphérique, série courte à 2 dents, diamètre 3mm avec une longueur de coupe de 8mm, une longueur totale de 52mm et un rayon de profil complet de 1,5mm, selon la norme DIN 844 K avec une queue Weldon de 6mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage en copie dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5053.0
GradeLumineux
Product Number5985500
Product FamilyC505

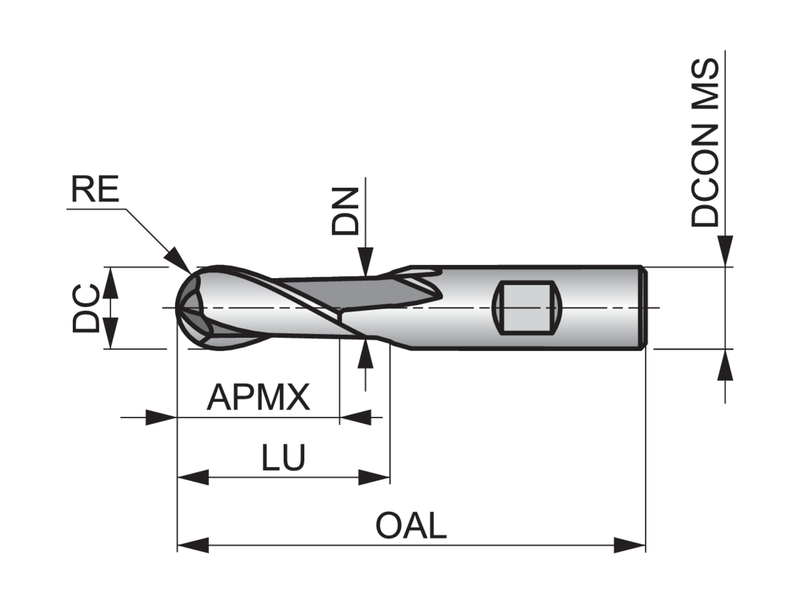

Insert Geometry
Corner Radius — in (RE)0.0591"
Corner Radius — mm (RE)1.5 mm
Depth of Cut Max — in (APMX)0.315"
Depth of Cut Max — mm (APMX)8.0 mm
Dimensions
Cutting Diameter — in (DC)0.1181"
Cutting Diameter — mm (DC)3.0 mm
Overall Length — in (OAL)2.0472"
Overall Length — mm (OAL)52.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number124260
EAN7320760124260
File Type Download
C5053.0 — Line Drawing PDF Download
