UGC DOR5985503
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$372.64 CAD - $372.64 CAD
$372.64 CAD
$372.64 CAD - $372.64 CAD
$372.64 CAD

Vendu en lots de : 1

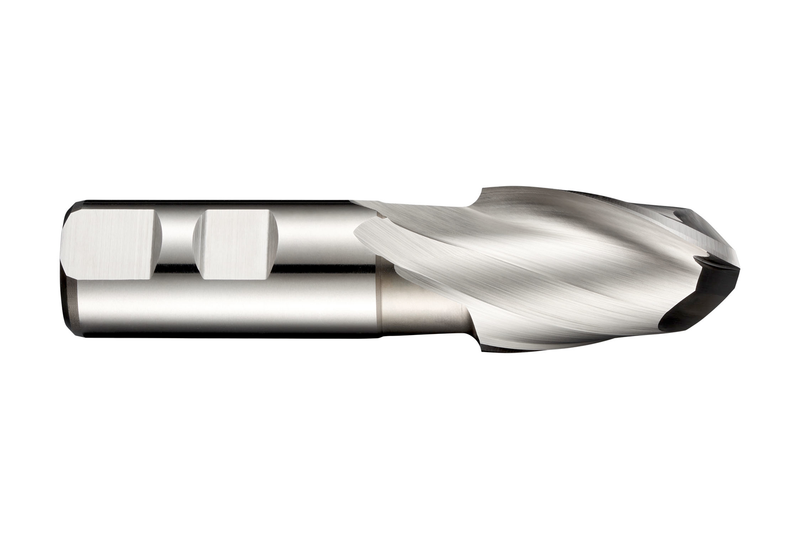

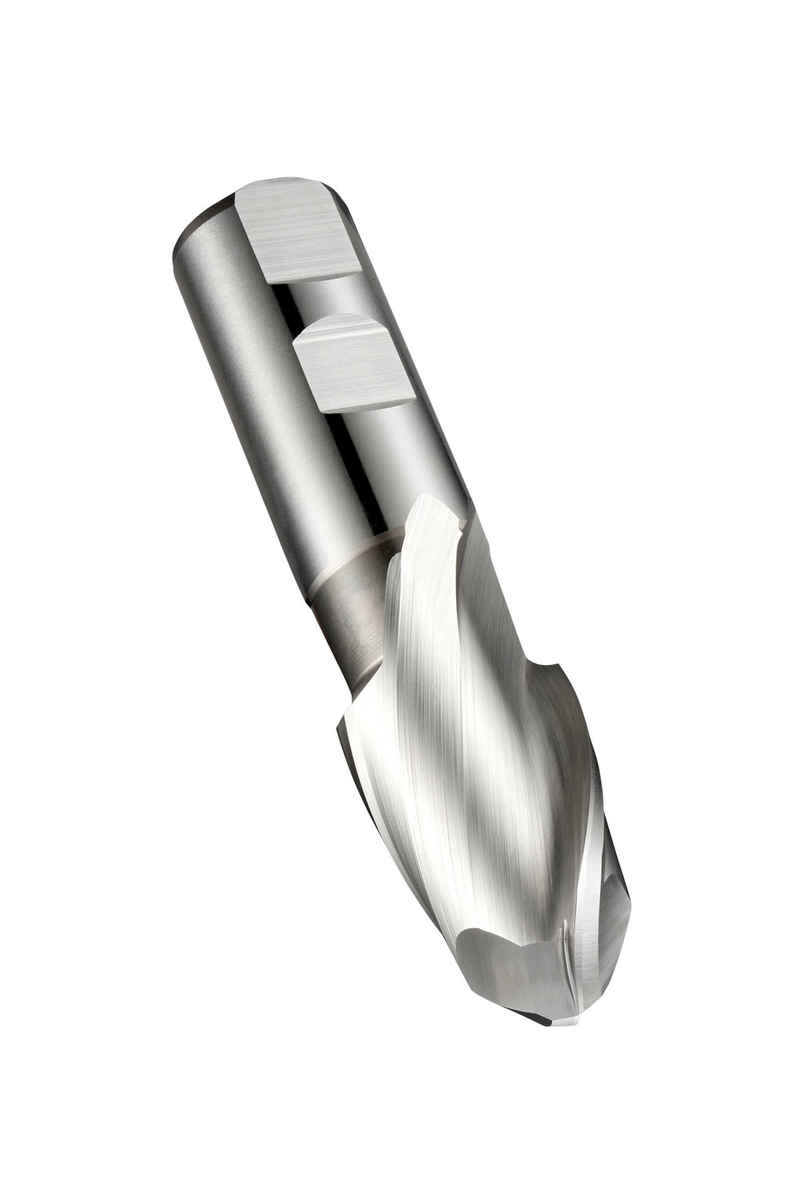

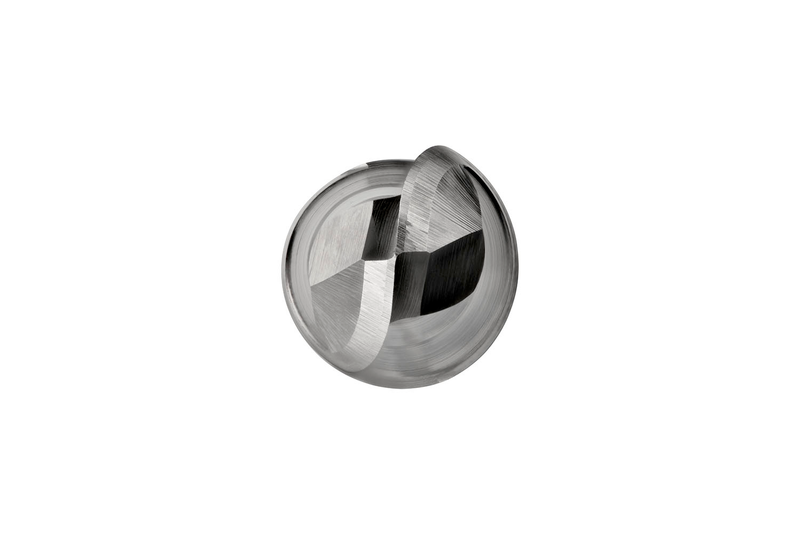

Fraise carbure monobloc deux tailles à rayon court de diamètre 30mm, longueur de coupe 45mm, longueur totale 121mm, longueur utile 64.5mm avec dégagement et rayon de profil complet 15mm, selon la norme DIN 844 K avec queue Weldon 25mm, HSS-E cobalt avec finition brillante, hélice 30° et angle de dépouille 12° pour le fraisage de copiage dans les aciers de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C50530.0
GradeLumineux
Product Number5985503
Product FamilyC505

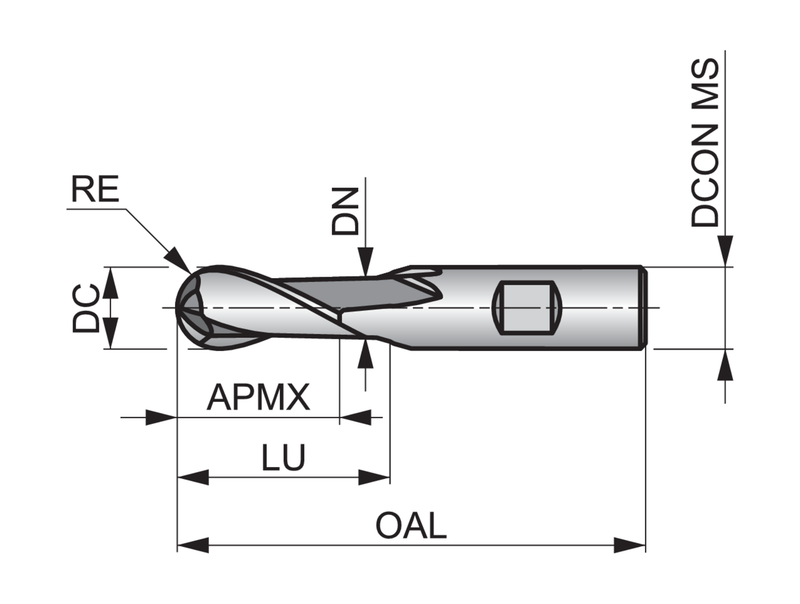

Insert Geometry
Corner Radius — in (RE)0.5906"
Corner Radius — mm (RE)15 mm
Depth of Cut Max — in (APMX)1.7717"
Depth of Cut Max — mm (APMX)45.0 mm
Dimensions
Cutting Diameter — in (DC)1.1811"
Cutting Diameter — mm (DC)30.0 mm
Overall Length — in (OAL)4.7638"
Overall Length — mm (OAL)121.0 mm
Usable Length — mm (LU)64.5 mm
Connection Dia. — in (DCON)0.9843"
Connection Dia. — mm (DCON)25.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number73612
EAN7320760073612
File Type Download
C50530.0 — Line Drawing PDF Download
