C80021.0X12.0
C80021.0X12.0
C80021.0X12.0
C80021.0X12.0

C80021.0X12.0

UGC DOR5985504
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$271.69 CAD - $271.69 CAD
$271.69 CAD
$271.69 CAD - $271.69 CAD
$271.69 CAD

Vendu en lots de : 1

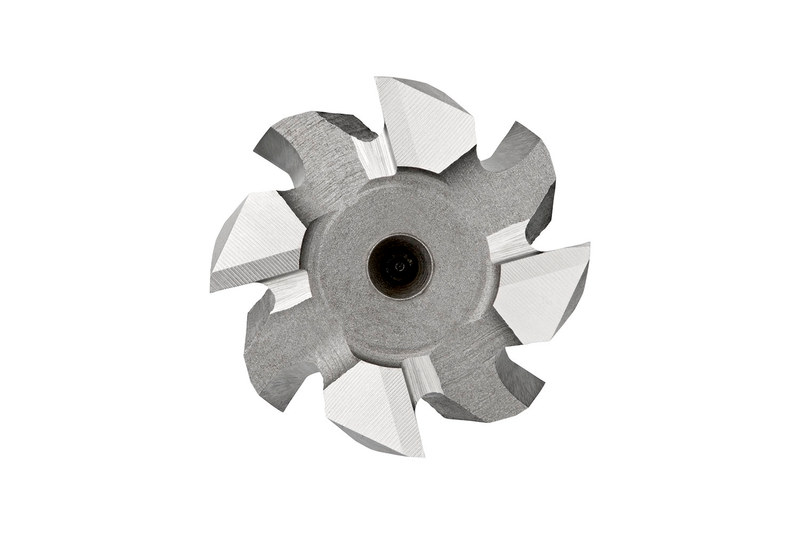

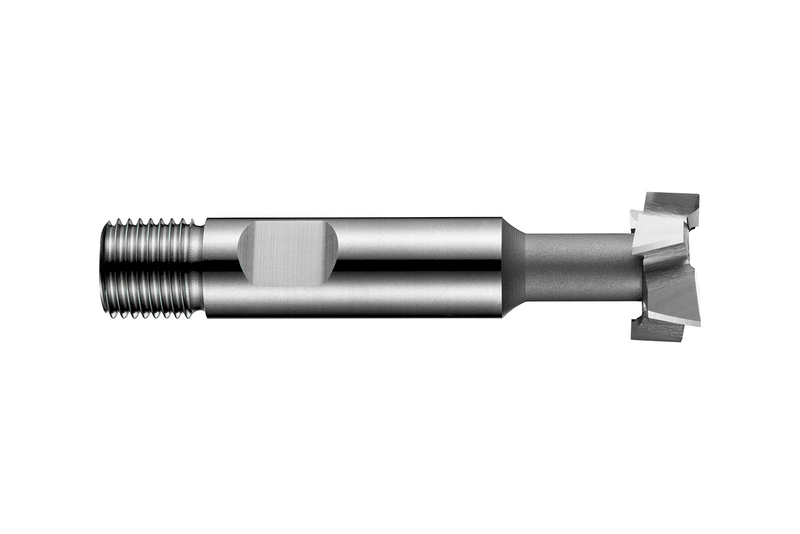

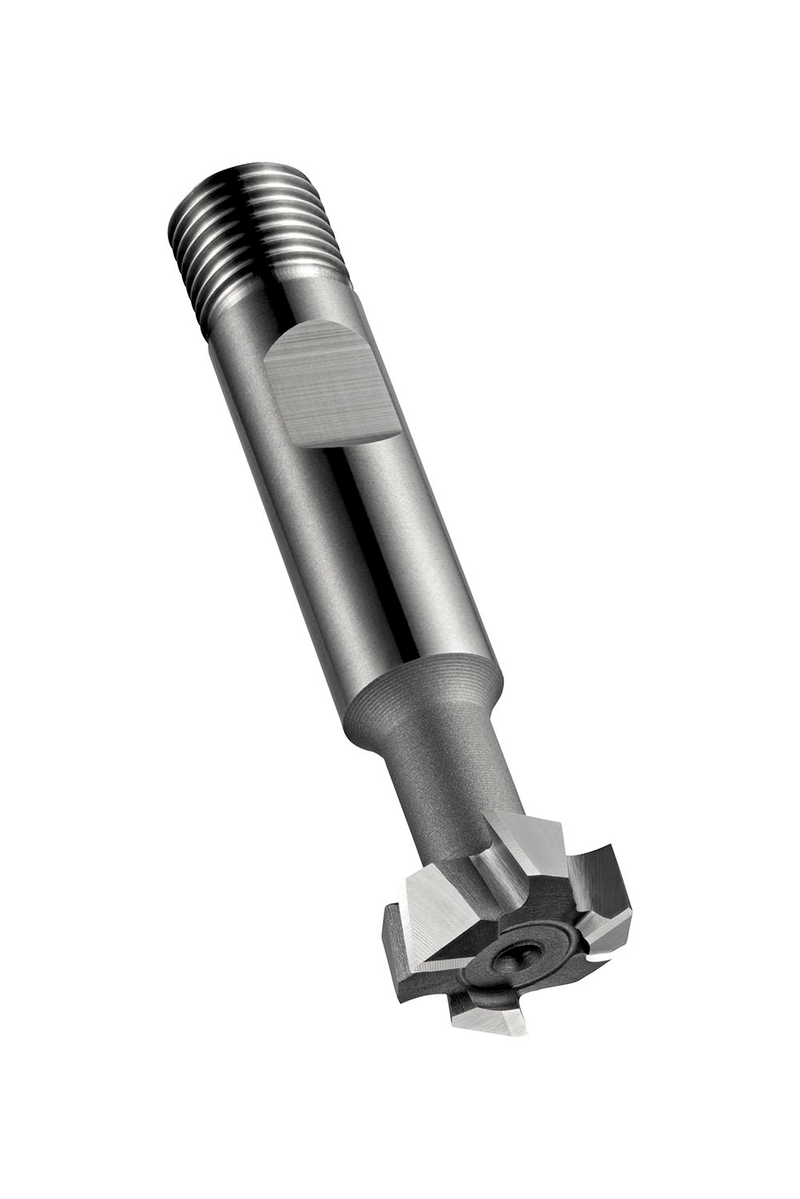

Fraise à rainurer en T à 8 dents, diamètre 21mm avec profondeur de coupe 9mm et longueur totale 74mm, conforme à la norme DIN 851 avec queue combinée de 12mm avec plat de weldon et filetage, en HSS-E cobalt avec finition brillante, hélice 15° et angle de coupe 10° pour le fraisage de rainures en T dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C80021.0X12.0
GradeLumineux
Product Number5985504
Product FamilyC800
Insert Geometry
Depth of Cut Max — in (APMX)0.3543"
Depth of Cut Max — mm (APMX)9.0 mm
Dimensions
Cutting Diameter — in (DC)0.8268"
Cutting Diameter — mm (DC)21.0 mm
Overall Length — in (OAL)2.9134"
Overall Length — mm (OAL)74.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)15.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 851
Reference Numbers
EDP Number74473
EAN7320760074473
File Type Download

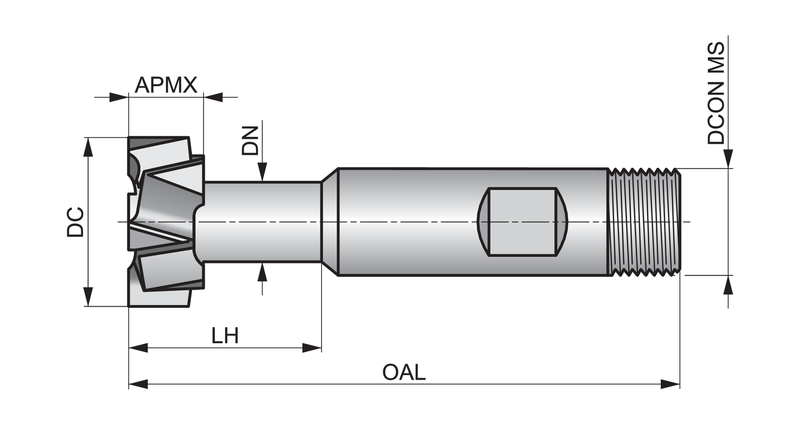

C80021.0X12.0 — Line Drawing PDF Download
