UGC DOR5985506
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$63.96 CAD - $63.96 CAD
$63.96 CAD
$63.96 CAD - $63.96 CAD
$63.96 CAD

Vendu en lots de : 1

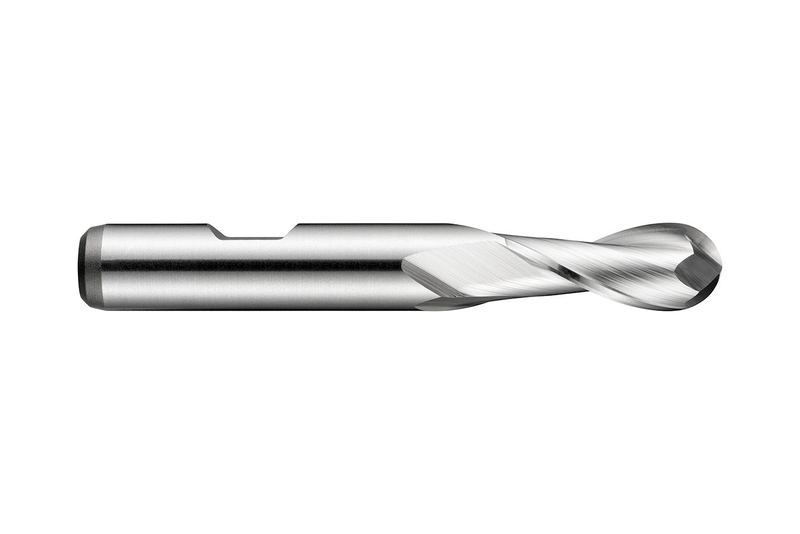

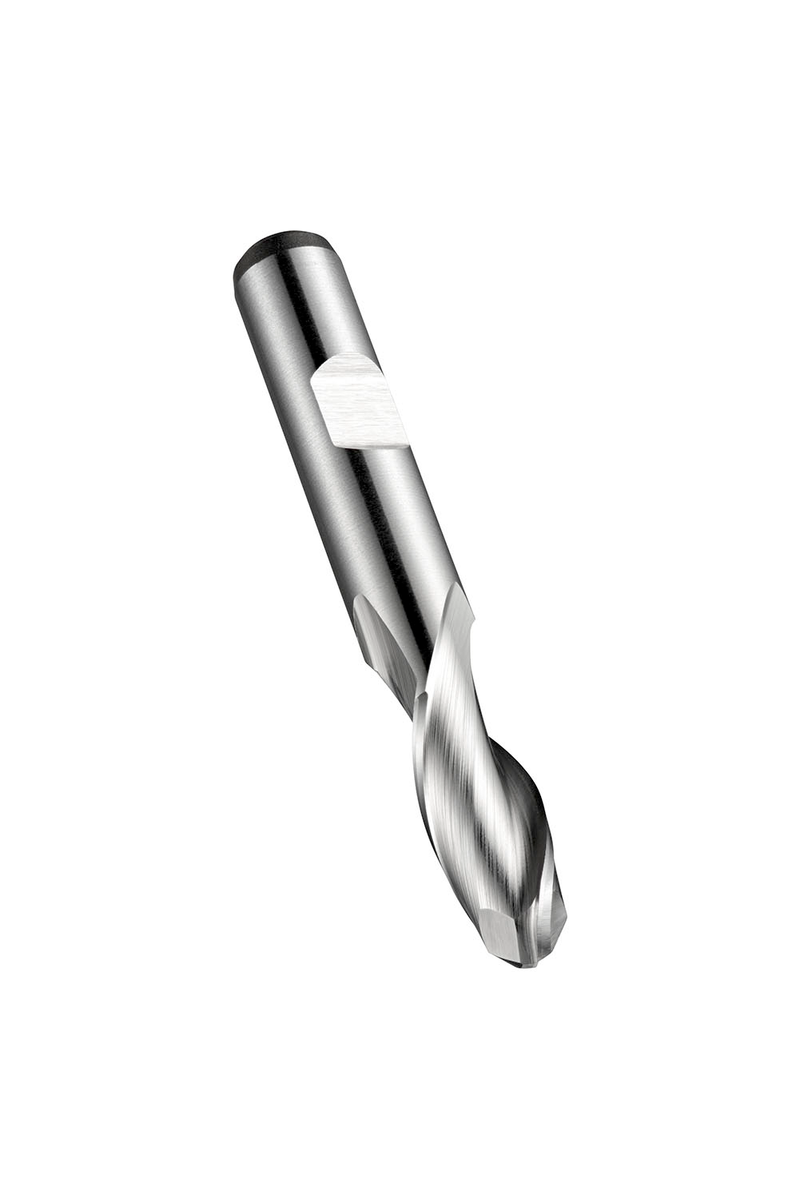

Fraise boule courte 2 dents, diamètre 4 mm avec 11 mm de longueur de coupe, longueur totale 55 mm et rayon de profil plein de 2 mm, selon la norme DIN 844 K avec une queue Weldon de 6 mm, HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage en plongée dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5054.0
GradeLumineux
Product Number5985506
Product FamilyC505
Insert Geometry
Corner Radius — in (RE)0.0787"
Corner Radius — mm (RE)2 mm
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm

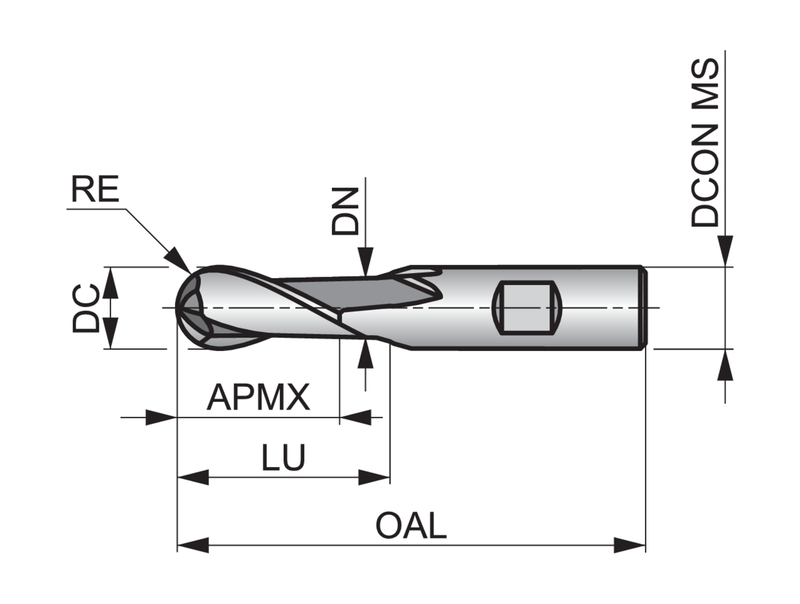

Dimensions
Cutting Diameter — in (DC)0.1575"
Cutting Diameter — mm (DC)4.0 mm
Overall Length — in (OAL)2.1654"
Overall Length — mm (OAL)55.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number126998
EAN7320760126998
File Type Download
C5054.0 — Line Drawing PDF Download
