UGC DOR5985507
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$323.49 CAD - $323.49 CAD
$323.49 CAD
$323.49 CAD - $323.49 CAD
$323.49 CAD

Vendu en lots de : 1

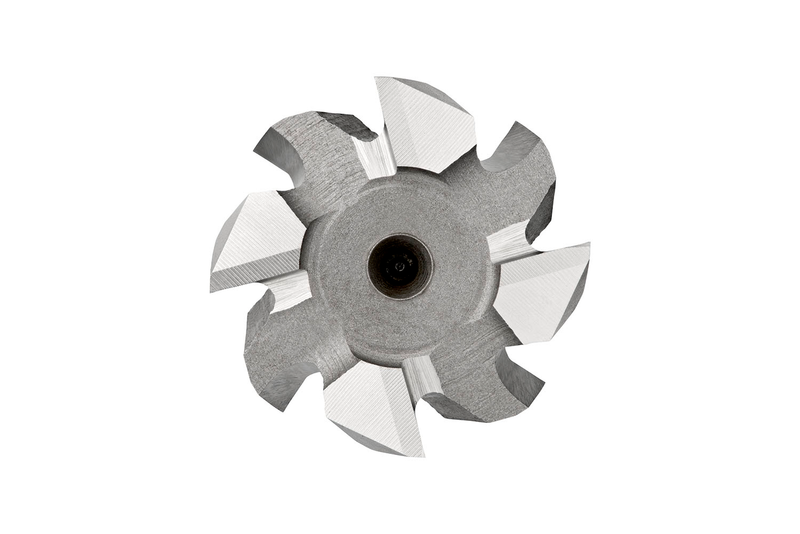

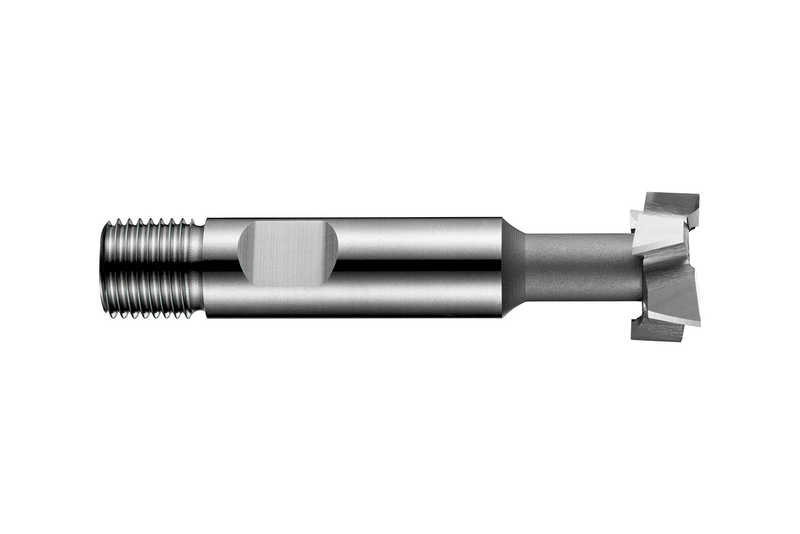

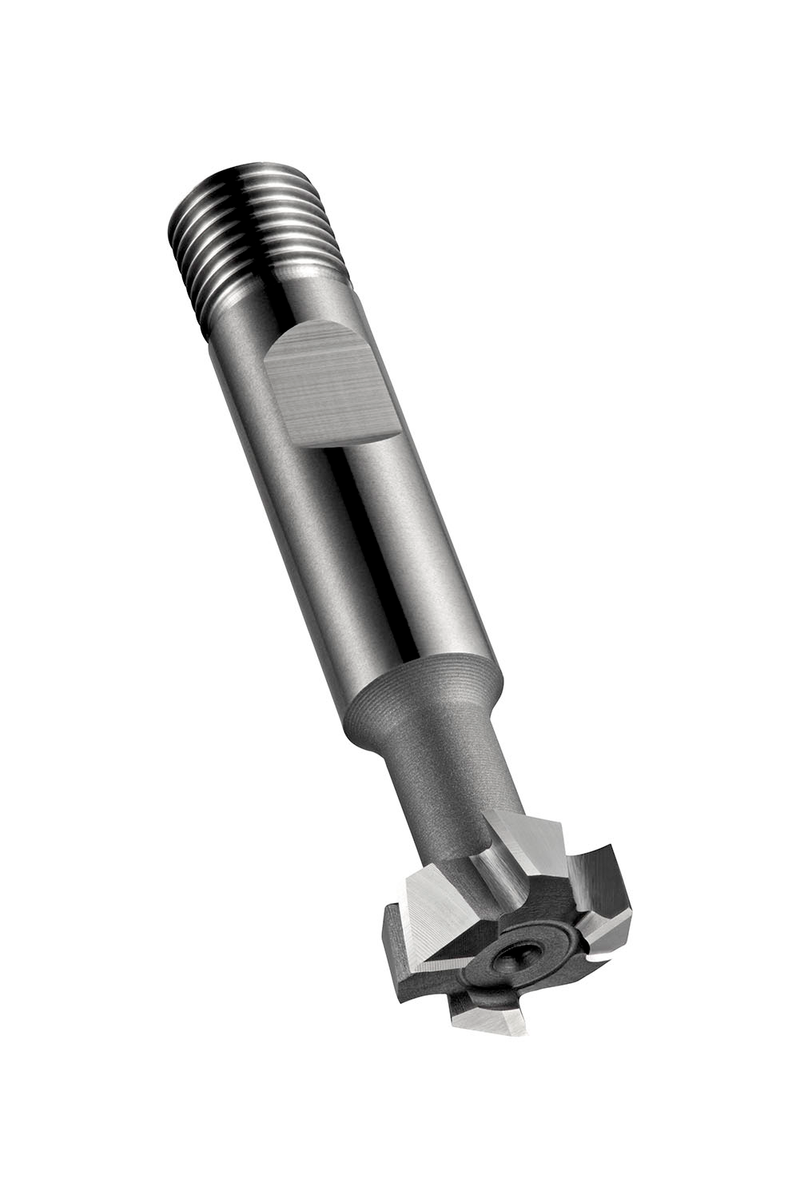

Fraise à rainurer en T à 8 dents, diamètre 25 mm, profondeur de coupe 11 mm et longueur totale 82 mm, conforme à la norme DIN 851 avec une queue combinée de 16 mm avec méplat et filetage Weldon, HSS-E à base de cobalt avec finition brillante, hélice à 15° et angle de dépouille de 10° pour le fraisage de rainures en T dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C80025.0X14.0
GradeLumineux
Product Number5985507
Product FamilyC800
Insert Geometry
Depth of Cut Max — in (APMX)0.4331"
Depth of Cut Max — mm (APMX)11.0 mm
Dimensions
Cutting Diameter — in (DC)0.9843"
Cutting Diameter — mm (DC)25.0 mm
Overall Length — in (OAL)3.2283"
Overall Length — mm (OAL)82.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)8
Helix Angle (FHA)15.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 851
Reference Numbers
EDP Number74480
EAN7320760074480
File Type Download

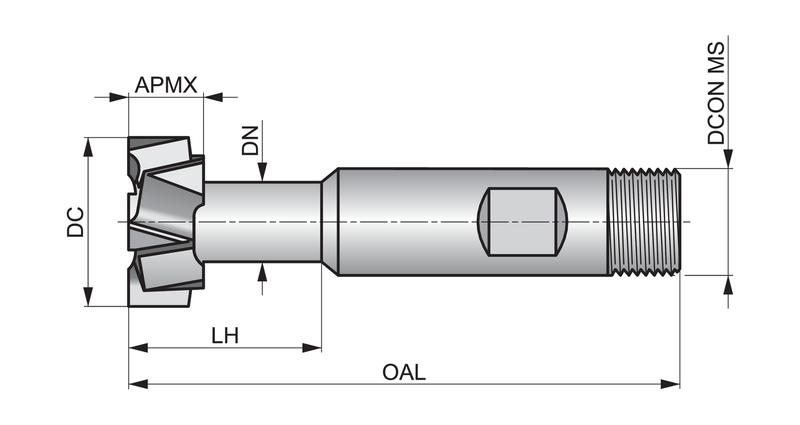

C80025.0X14.0 — Line Drawing PDF Download
