UGC DOR5985510
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$62.90 CAD - $62.90 CAD
$62.90 CAD
$62.90 CAD - $62.90 CAD
$62.90 CAD

Vendu en lots de : 1

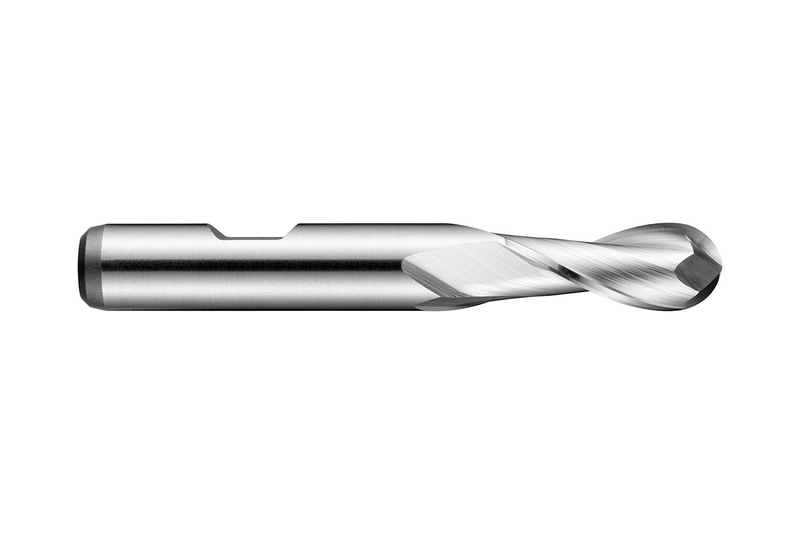

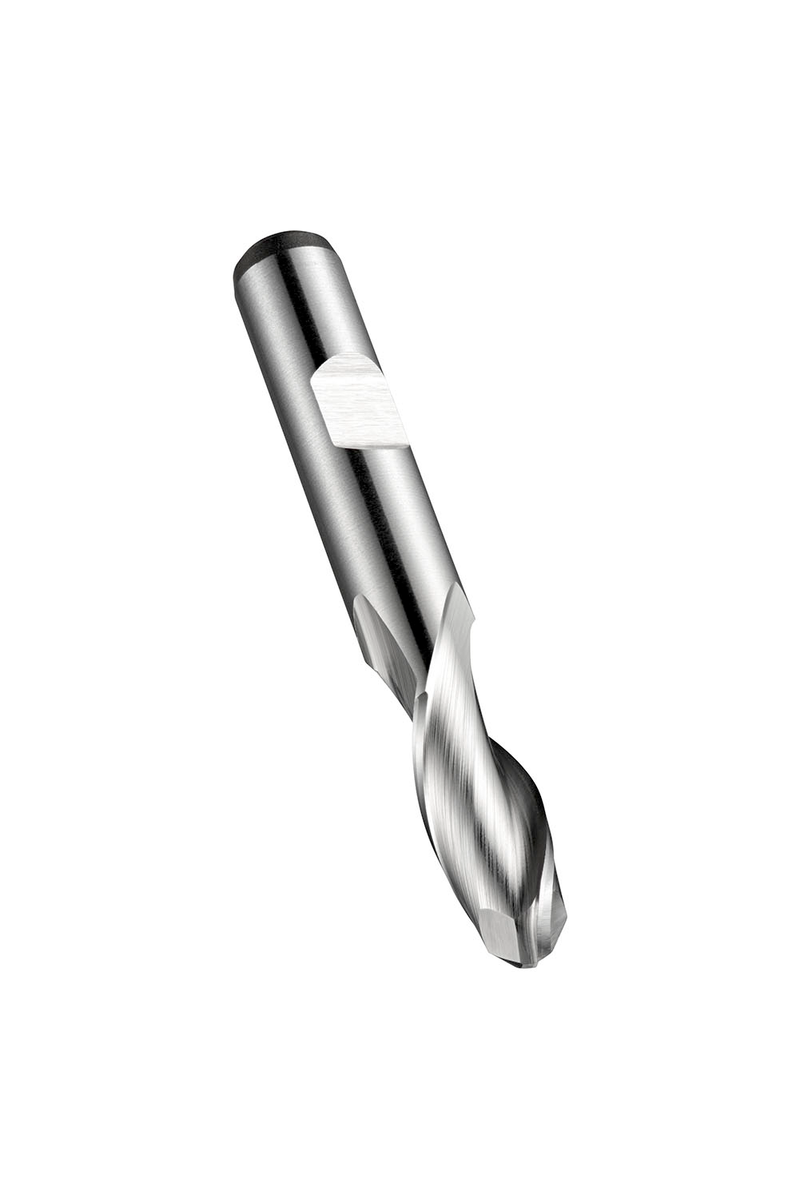

Fraise carbure monobloc 2 dents à nez sphérique série courte, diamètre 5 mm avec une longueur de coupe de 13 mm, une longueur totale de 57 mm et un rayon de profil complet de 2,5 mm, selon la norme DIN 844 K avec une queue Weldon de 6 mm, en HSS-E à base de cobalt avec finition brillante, hélice de 30° et angle de dépouille de 12° pour le fraisage de reproduction dans l'acier de décolletage et le cuivre ou les alliages de cuivre

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C5055.0
GradeLumineux
Product Number5985510
Product FamilyC505

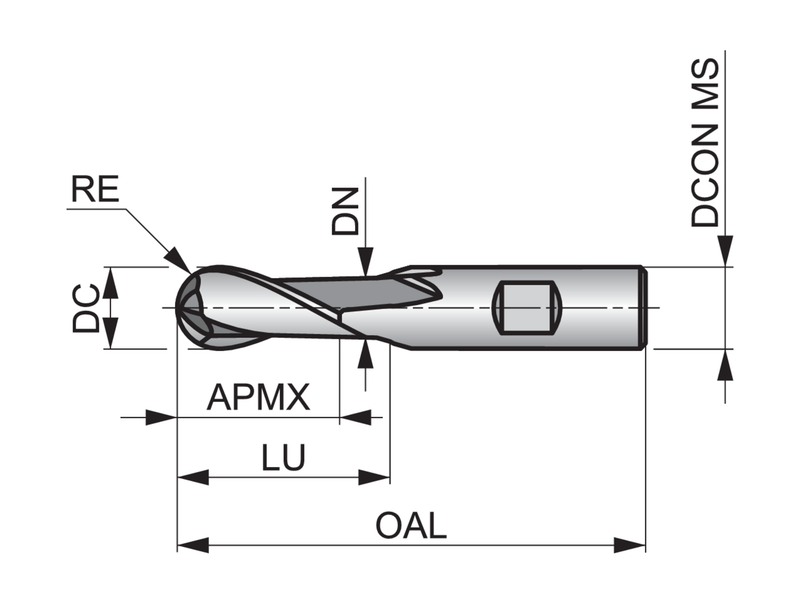

Insert Geometry
Corner Radius — in (RE)0.0984"
Corner Radius — mm (RE)2.5 mm
Depth of Cut Max — in (APMX)0.5118"
Depth of Cut Max — mm (APMX)13.0 mm
Dimensions
Cutting Diameter — in (DC)0.1969"
Cutting Diameter — mm (DC)5.0 mm
Overall Length — in (OAL)2.2441"
Overall Length — mm (OAL)57.0 mm
Connection Dia. — in (DCON)0.2362"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)2
Helix Angle (FHA)30.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number127001
EAN7320760127001
File Type Download
C5055.0 — Line Drawing PDF Download
