UGC DOR5985518
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$417.57 CAD - $417.57 CAD
$417.57 CAD
$417.57 CAD - $417.57 CAD
$417.57 CAD

Vendu en lots de : 1

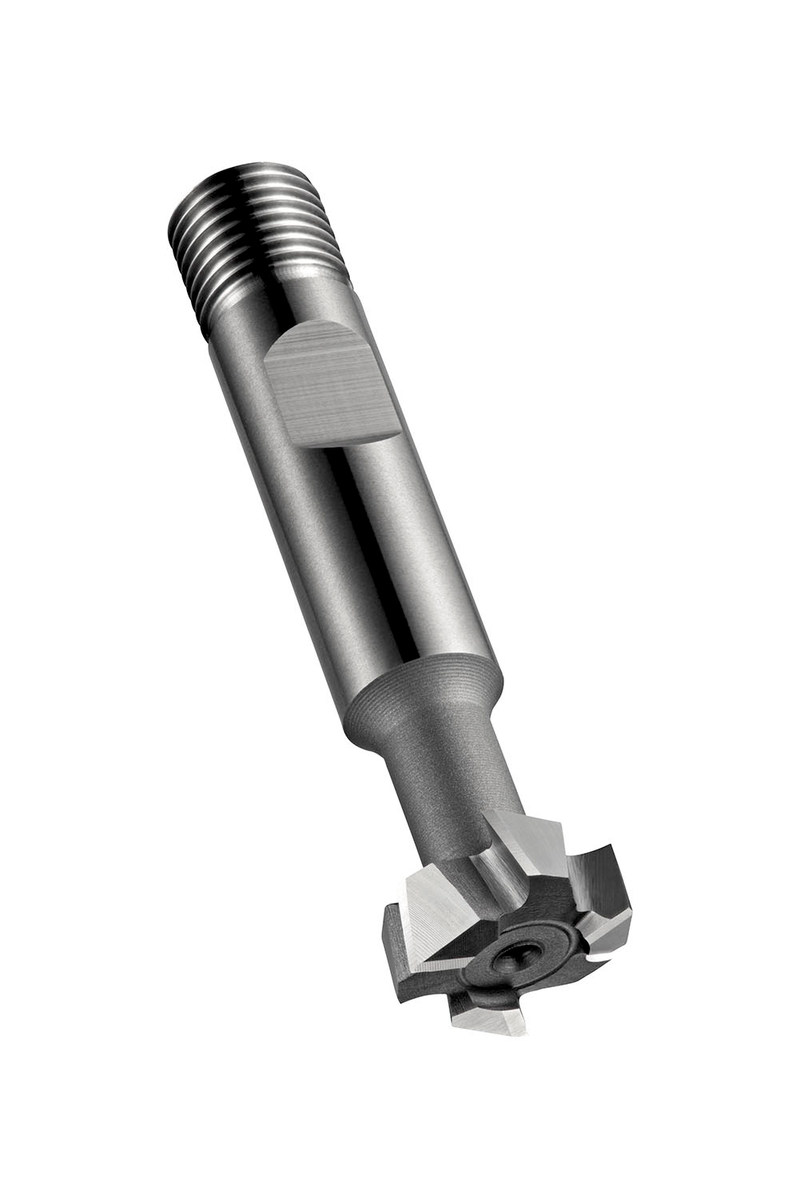

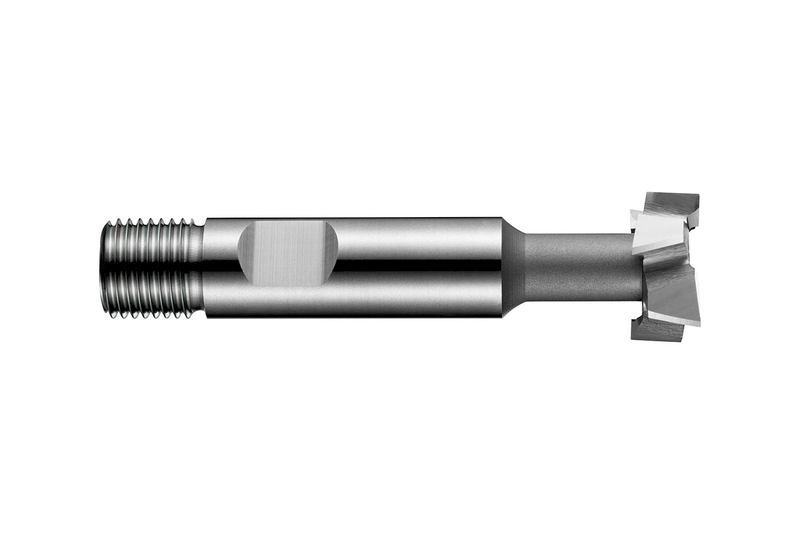

Fraise à rainurer en T à 8 dents, diamètre 32 mm avec profondeur de coupe de 14 mm et longueur totale de 90 mm, selon la norme DIN 851 avec une queue combinée de 16 mm avec méplat et filetage Weldon, HSS-E à base de cobalt avec finition brillante, hélice de 15° et angle de dépouille de 10° pour le fraisage de rainures en T dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C80032.0X18.0
GradeLumineux
Product Number5985518
Product FamilyC800
Insert Geometry

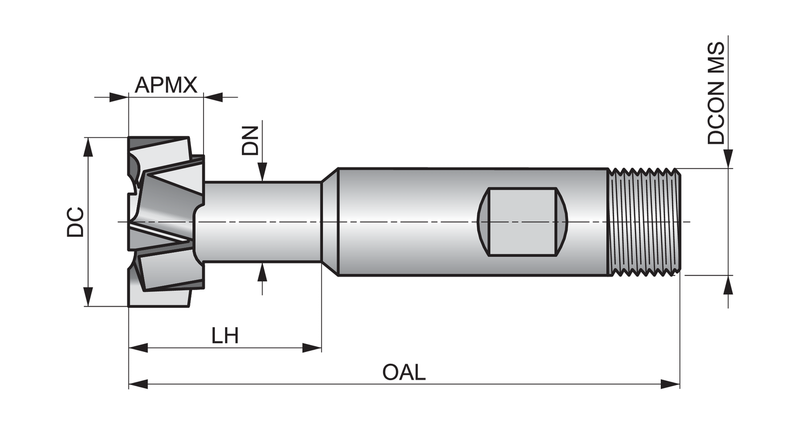

Depth of Cut Max — in (APMX)0.5512"
Depth of Cut Max — mm (APMX)14.0 mm
Dimensions
Cutting Diameter — in (DC)1.2598"
Cutting Diameter — mm (DC)32.0 mm
Overall Length — in (OAL)3.5433"
Overall Length — mm (OAL)90.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

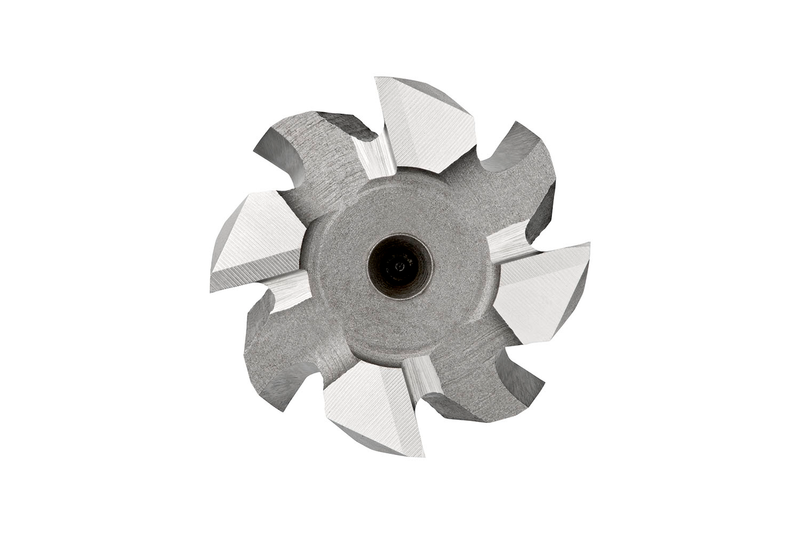

Number of Flutes (NOF)8
Helix Angle (FHA)15.0°
Tool Information
ShankQueue cylindrique DIN 1835 B / D
StandardDIN 851
Reference Numbers
EDP Number74497
EAN7320760074497
File Type Download
C80032.0X18.0 — Line Drawing PDF Download
