D74563.0X1.5
D74563.0X1.5
D74563.0X1.5

D74563.0X1.5

UGC DOR5985527
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$55.20 CAD - $55.20 CAD
$55.20 CAD
$55.20 CAD - $55.20 CAD
$55.20 CAD

Vendu en lots de : 5

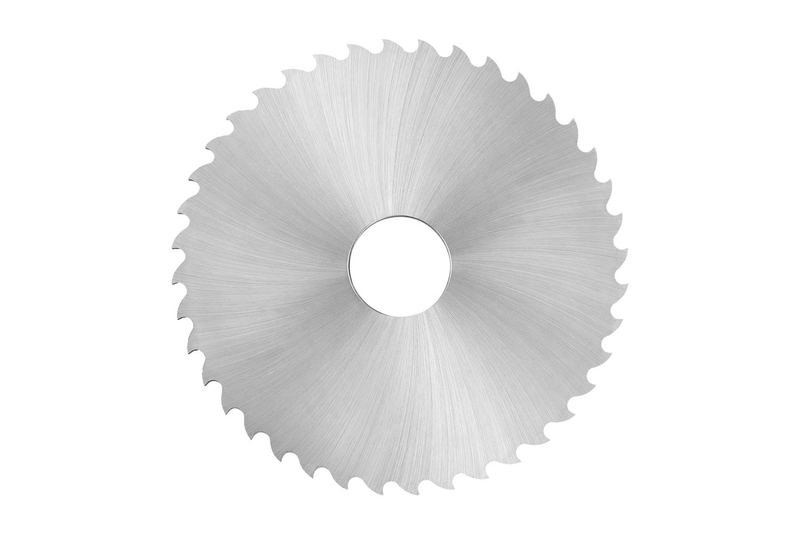

Scie à refendre en métal à pas grossier et 40 dents, diamètre 63mm avec largeur de coupe de 1,5mm, selon la norme DIN 1838 avec un alésage de 16mm, HSS avec finition brillante, et angle de coupe de 15° pour le sciage de tronçonnage, l'entaillage peu profond et l'entaillage profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI)D74563,0X1,5
Product Name (ISO)D74563.0X1.5
GradeLumineux
Product Number5985527
Product FamilyD745

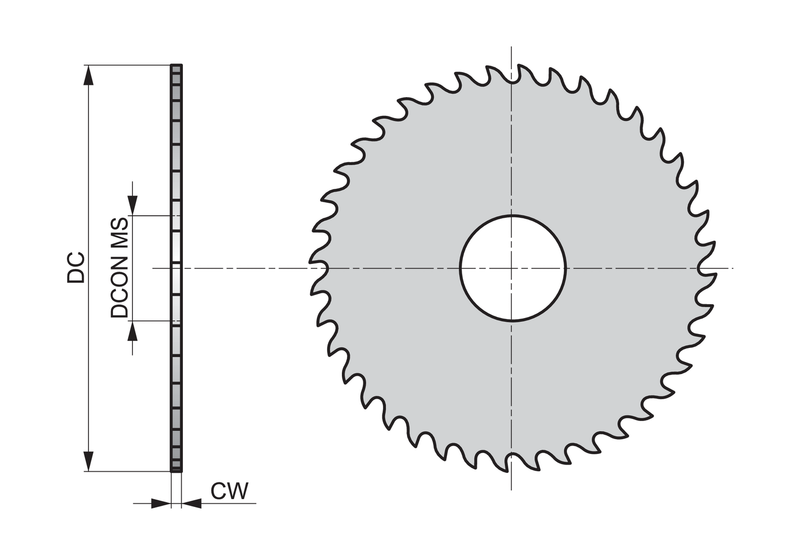

Dimensions
Cutting Diameter — in (DC)2.4803"
Cutting Diameter — mm (DC)63.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm
Number of Flutes (NOF)40
Tool Information
StandardDIN 1838
Reference Numbers
EDP Number283714
EAN7320760283714
File Type Download
D74563.0X1.5 — Line Drawing PDF Download
