UGC DOR5985618
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$263.76 CAD - $263.76 CAD
$263.76 CAD
$263.76 CAD - $263.76 CAD
$263.76 CAD

Vendu en lots de : 1

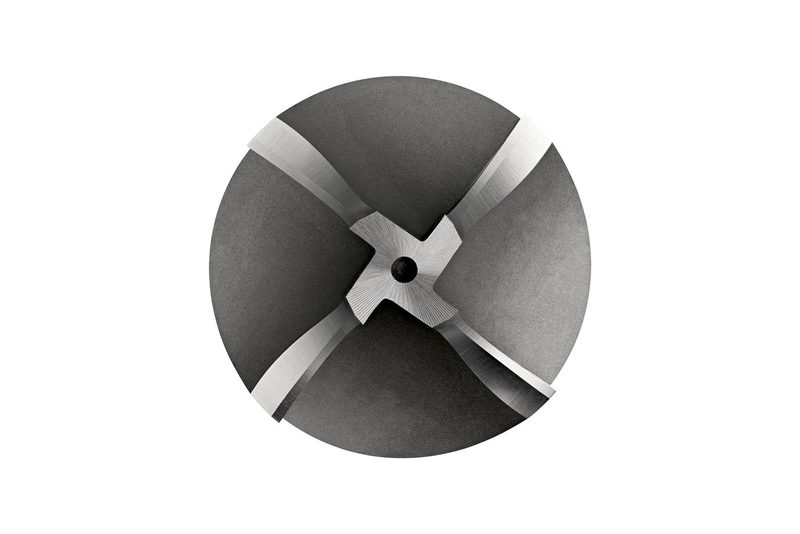

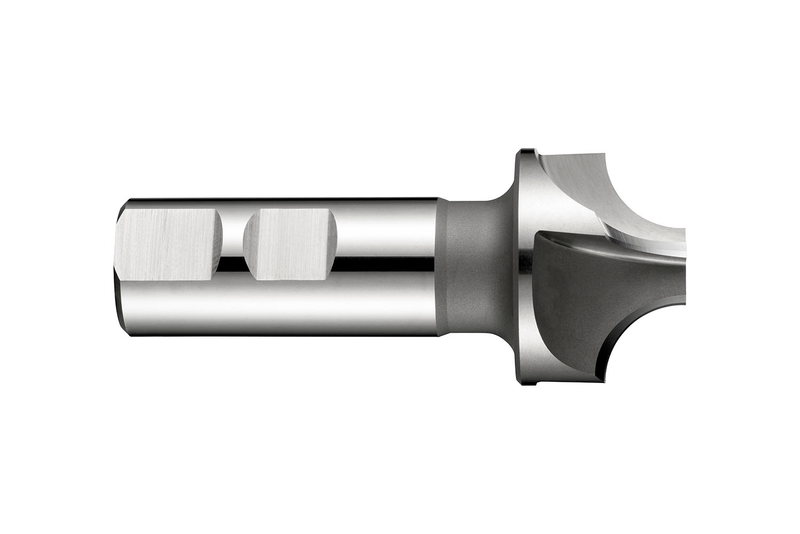

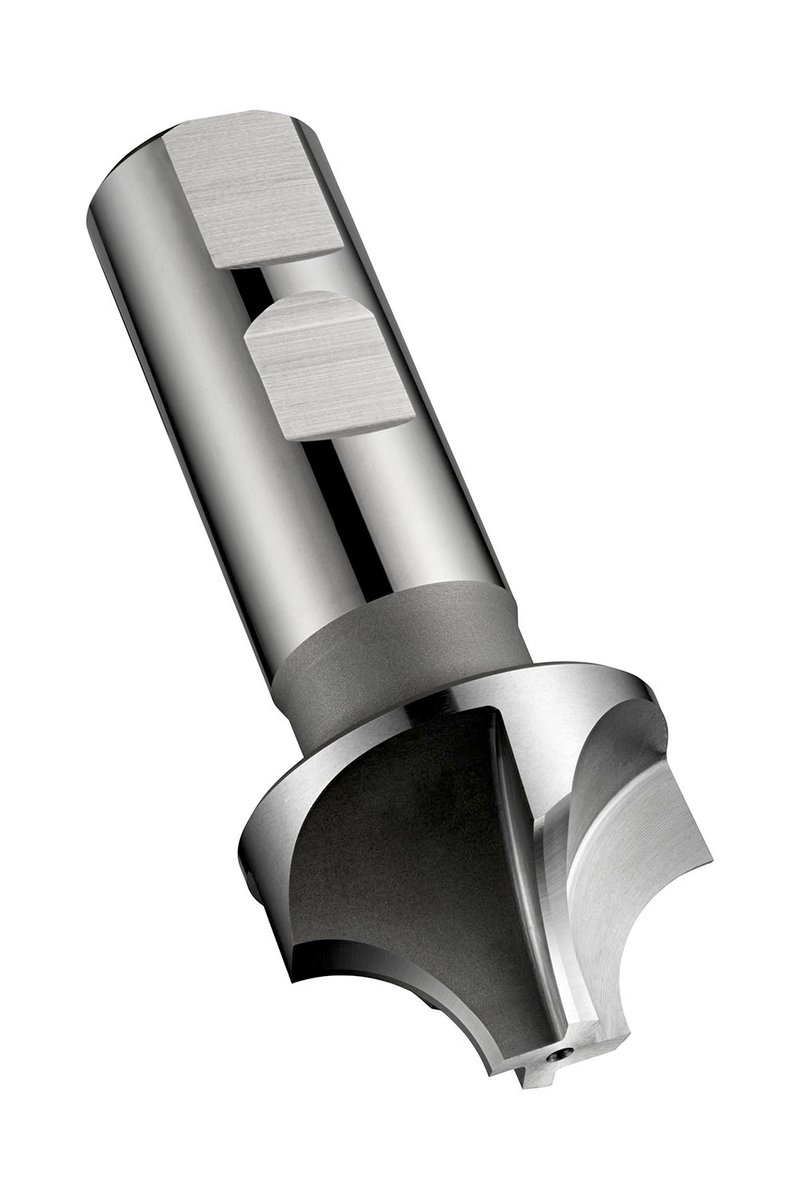

Fraise à arrondir les angles série extra courte avec 4 dents, diamètre 12mm, longueur totale 60mm et rayon de profil 3.5mm, selon la norme DORMER avec une queue Weldon de 12mm, HSS-E à base de cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé ou moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C7003.5
GradeLumineux
Product Number5985618
Product FamilyC700

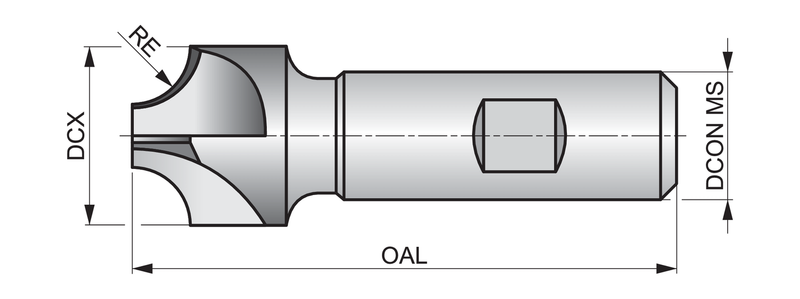

Insert Geometry
Corner Radius — in (RE)0.1378"
Corner Radius — mm (RE)3.5 mm
Dimensions
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number165324
EAN7320760165324
File Type Download
C7003.5 — Line Drawing PDF Download
