UGC DOR5985621
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$274.33 CAD - $274.33 CAD
$274.33 CAD
$274.33 CAD - $274.33 CAD
$274.33 CAD

Vendu en lots de : 1

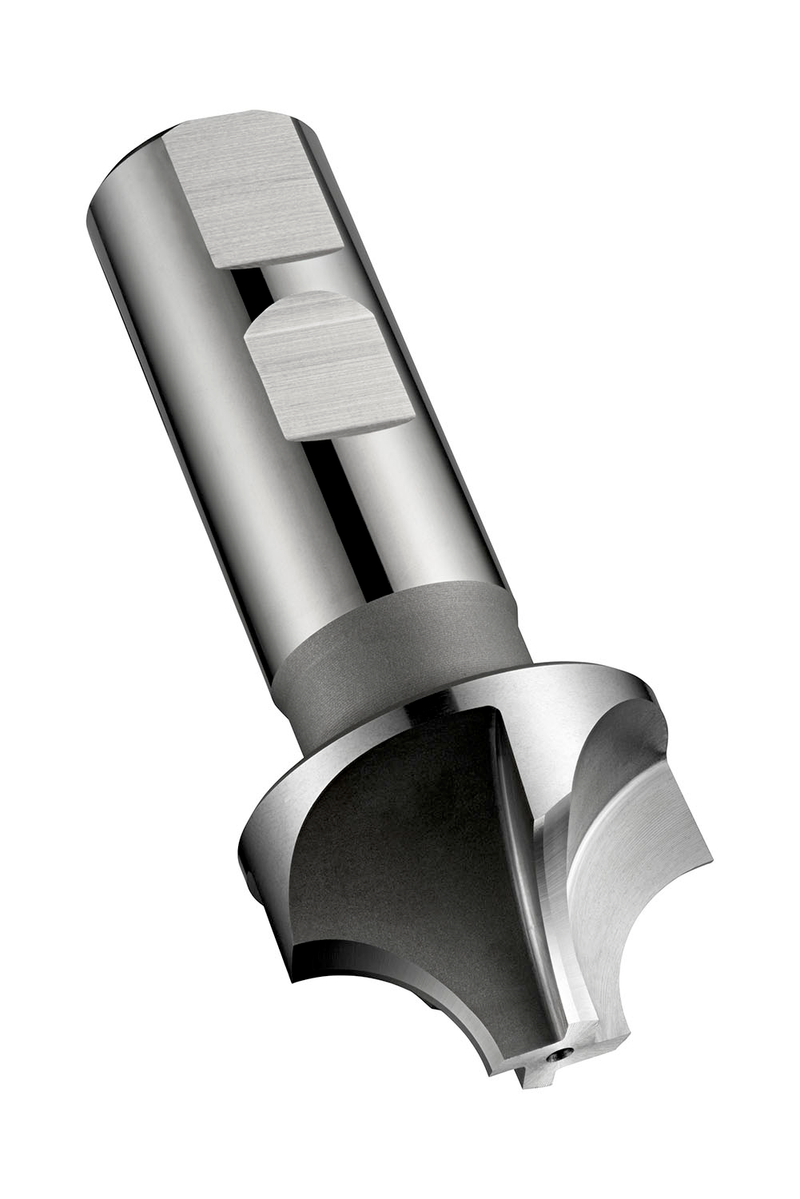

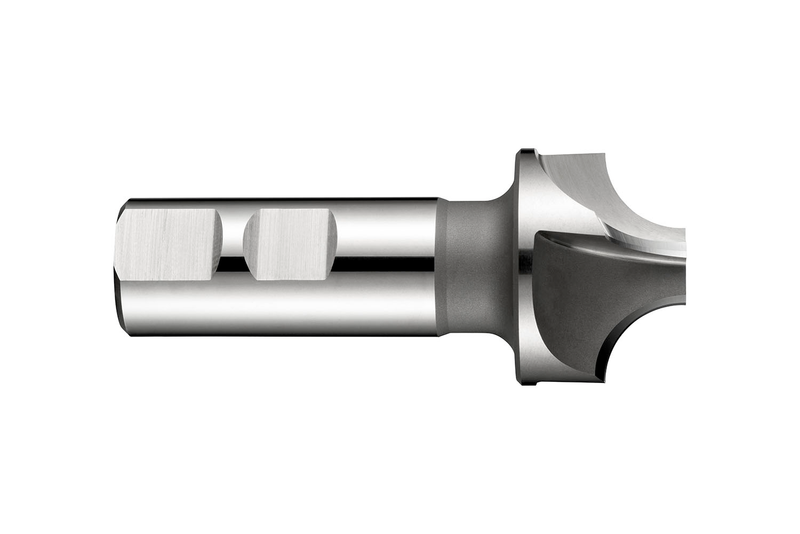

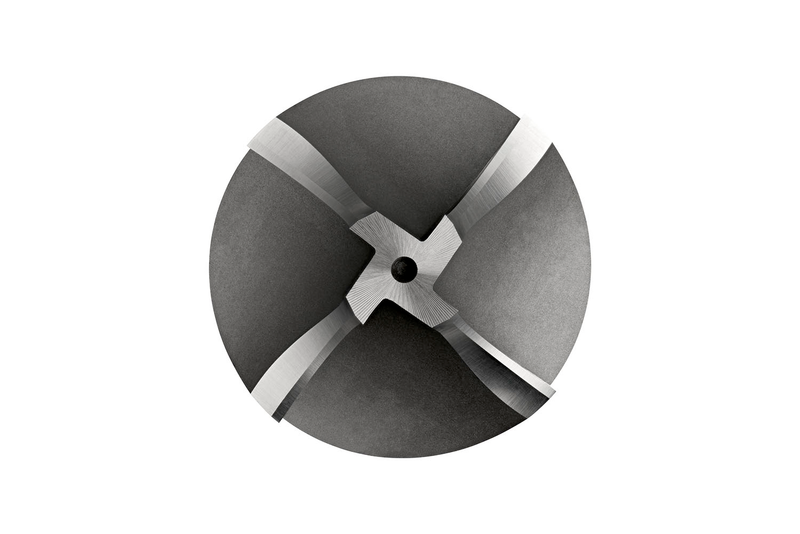

Fraise à arrondir les angles série extra-courte à 4 arêtes, diamètre 15 mm avec longueur totale 60 mm et rayons de profil 4 mm, selon la norme DORMER avec une queue Weldon de 12 mm, en HSS-E à base de cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, moulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C7004.0
GradeLumineux
Product Number5985621
Product FamilyC700
Insert Geometry
Corner Radius — in (RE)0.1575"
Corner Radius — mm (RE)4 mm

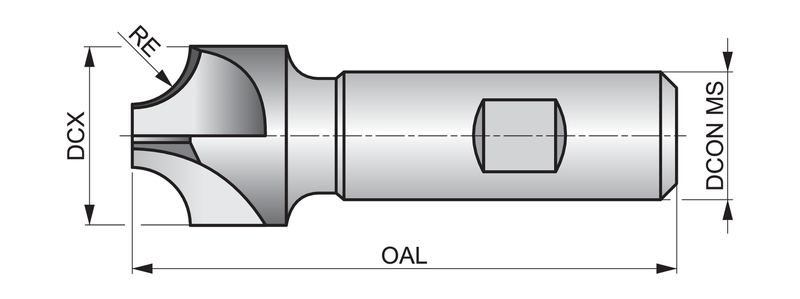

Dimensions
Overall Length — in (OAL)2.3622"
Overall Length — mm (OAL)60.0 mm
Connection Dia. — in (DCON)0.4724"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number74381
EAN7320760074381
File Type Download
C7004.0 — Line Drawing PDF Download
