UGC DOR5985624
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$283.31 CAD - $283.31 CAD
$283.31 CAD
$283.31 CAD - $283.31 CAD
$283.31 CAD

Vendu en lots de : 1

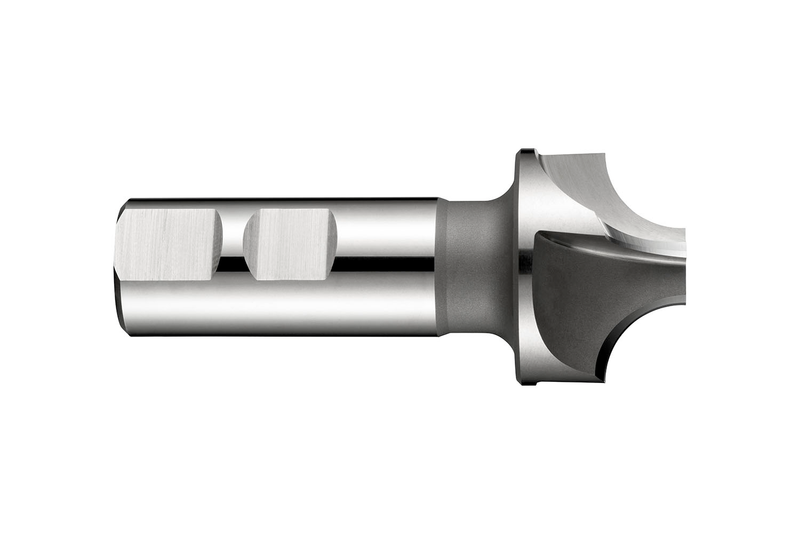

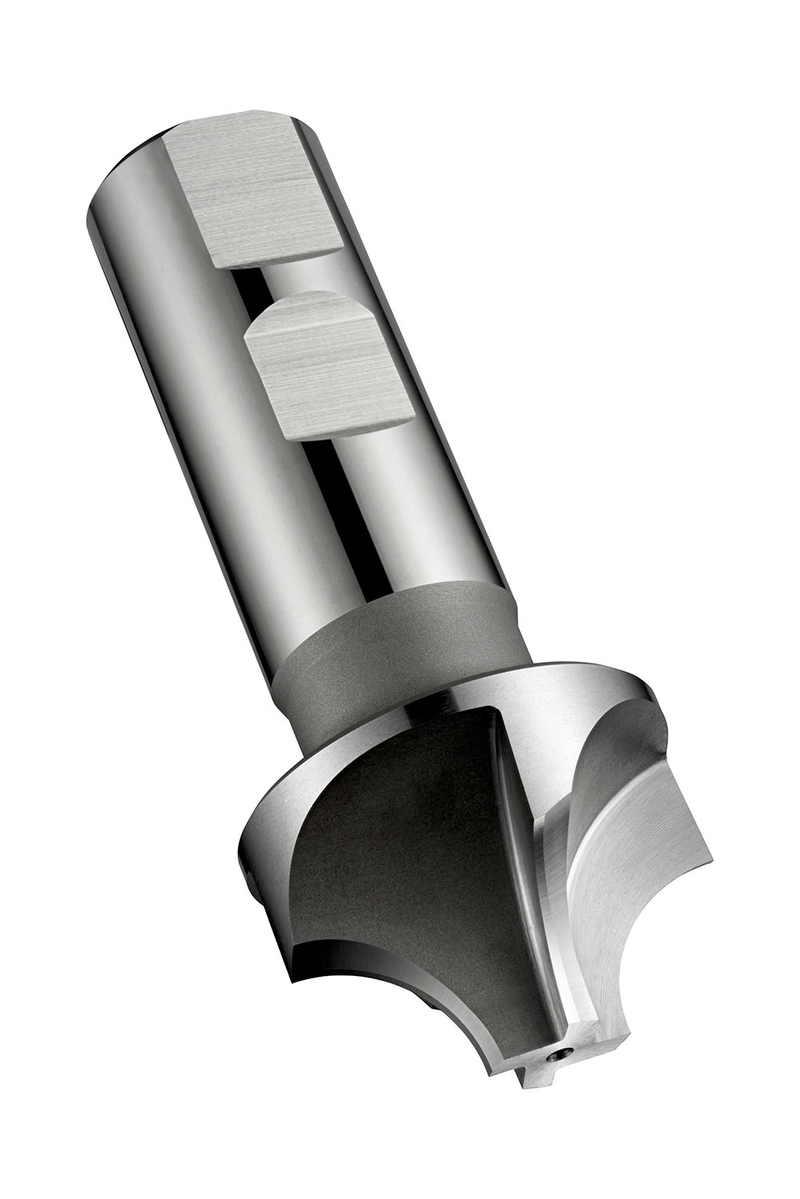

Fraise à arrondir d'angle, série extra-courte, 4 coupes, diamètre 18mm, longueur totale 70mm et rayons de profil 5mm, selon la norme DORMER avec une queue Weldon 16mm, HSS-E à base de cobalt avec finition brillante, hélice 0° et angle de dépouille 0° pour le fraisage de chanfreins dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, l'aluminium corroyé, coulé et le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C7005.0
GradeLumineux
Product Number5985624
Product FamilyC700

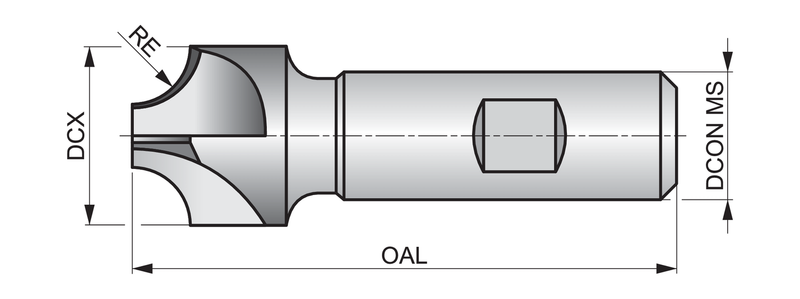

Insert Geometry
Corner Radius — in (RE)0.1969"
Corner Radius — mm (RE)5 mm
Dimensions
Overall Length — in (OAL)2.7559"
Overall Length — mm (OAL)70.0 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

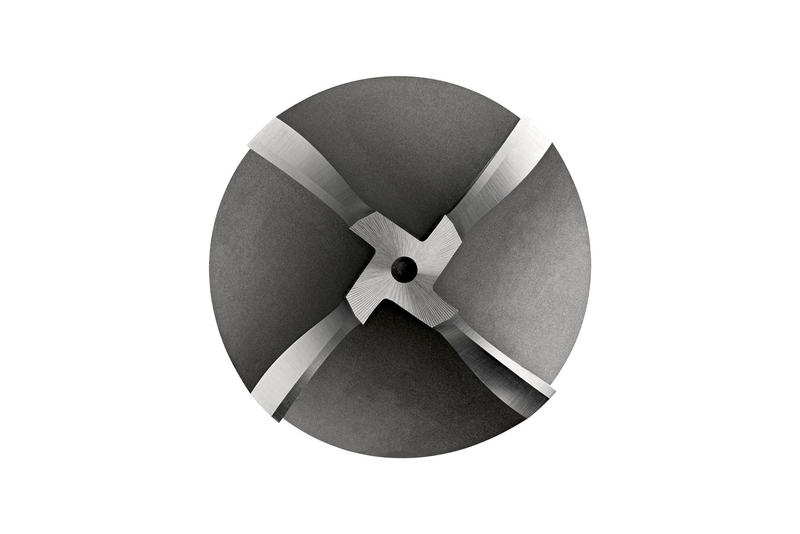

Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardNorme de travail
Reference Numbers
EDP Number74398
EAN7320760074398
File Type Download
C7005.0 — Line Drawing PDF Download
