UGC DOR5985638
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$153.00 CAD - $153.00 CAD
$153.00 CAD
$153.00 CAD - $153.00 CAD
$153.00 CAD

Vendu en lots de : 1

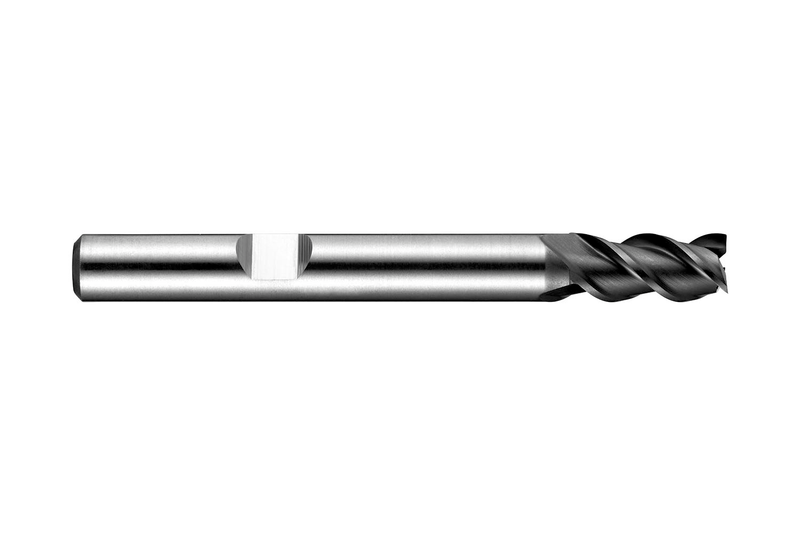

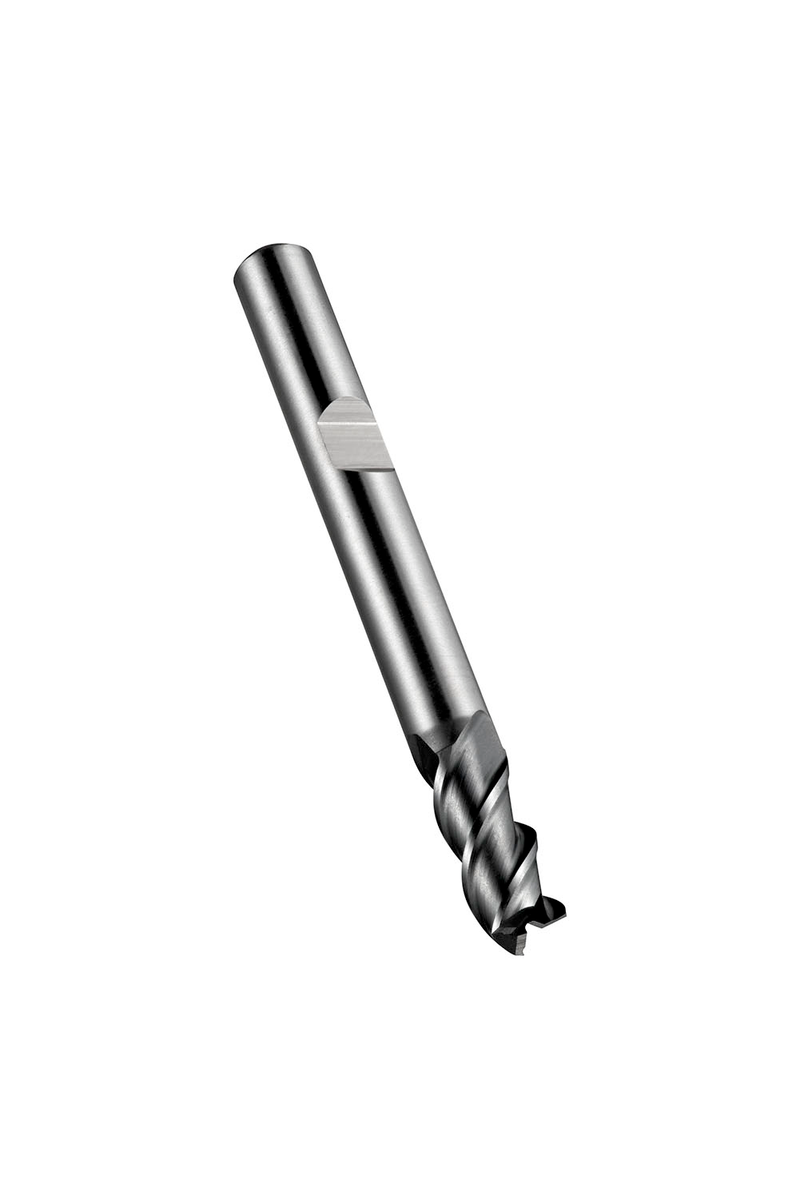

Fraise en bout courte 4 dents, diamètre 16mm, longueur de coupe 32mm, longueur totale 92mm et dégagement de 43,5mm avec col aminci, selon la norme DIN 844 K avec une queue Weldon de 16mm, HSS-E métallurgie des poudres avec revêtement Alcrona, hélice 45° et angle de dépouille 12° pour le fraisage en plongée, le fraisage de rainures et le fraisage en rampe dans les aciers non alliés, alliés et à outils, l'acier inoxydable, la fonte, le cuivre ou les alliages de cuivre et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)C90716.0
GradeALCRONA
Product Number5985638
Product FamilyC907

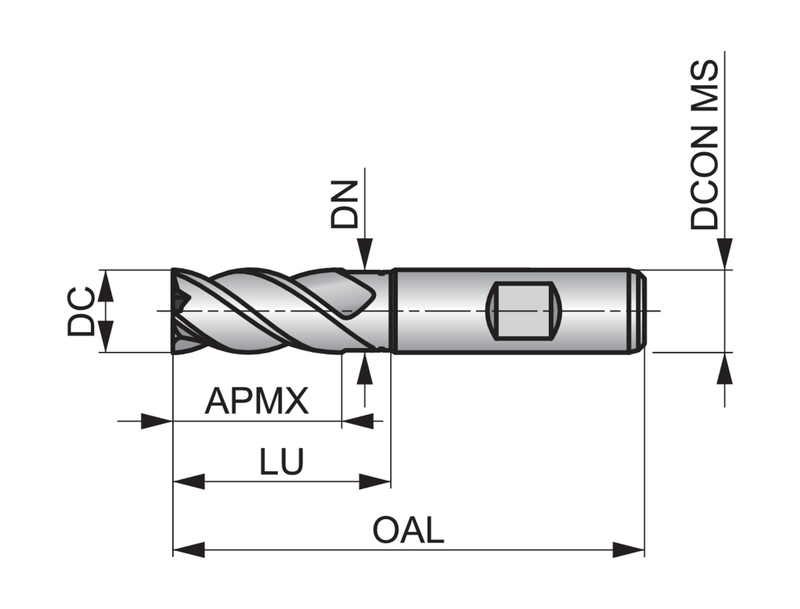

Insert Geometry
Depth of Cut Max — in (APMX)1.2598"
Depth of Cut Max — mm (APMX)32.0 mm
Dimensions
Cutting Diameter — in (DC)0.6299"
Cutting Diameter — mm (DC)16.0 mm
Overall Length — in (OAL)3.622"
Overall Length — mm (OAL)92.0 mm
Usable Length — mm (LU)43.5 mm
Connection Dia. — in (DCON)0.6299"
Connection Dia. — mm (DCON)16.0 mm

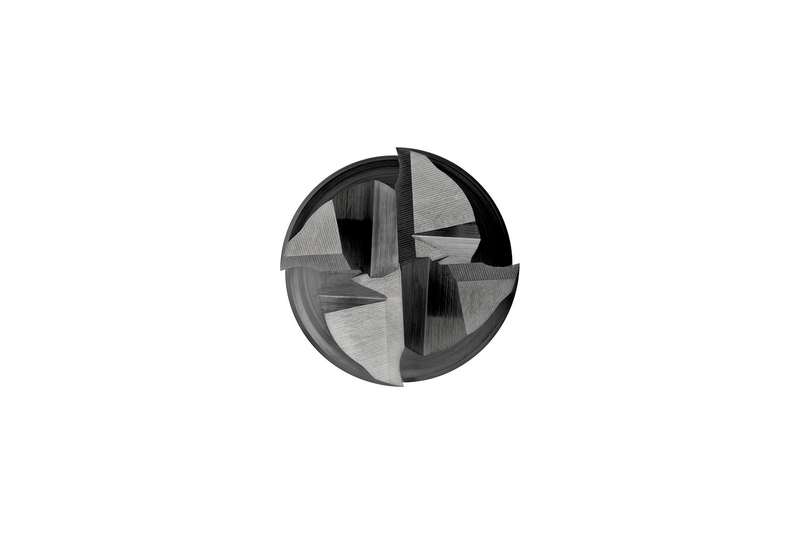

Number of Flutes (NOF)4
Helix Angle (FHA)45.0°
Tool Information
ShankQueue Weldon DIN 1835B
StandardDIN 844 K
Reference Numbers
EDP Number75852
EAN7320760075852
File Type Download
C90716.0 — Line Drawing PDF Download
