D74732.0X.3
D74732.0X.3
D74732.0X.3

D74732.0X.3

UGC DOR5985688
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.69 CAD - $32.69 CAD
$32.69 CAD
$32.69 CAD - $32.69 CAD
$32.69 CAD

Vendu en lots de : 5

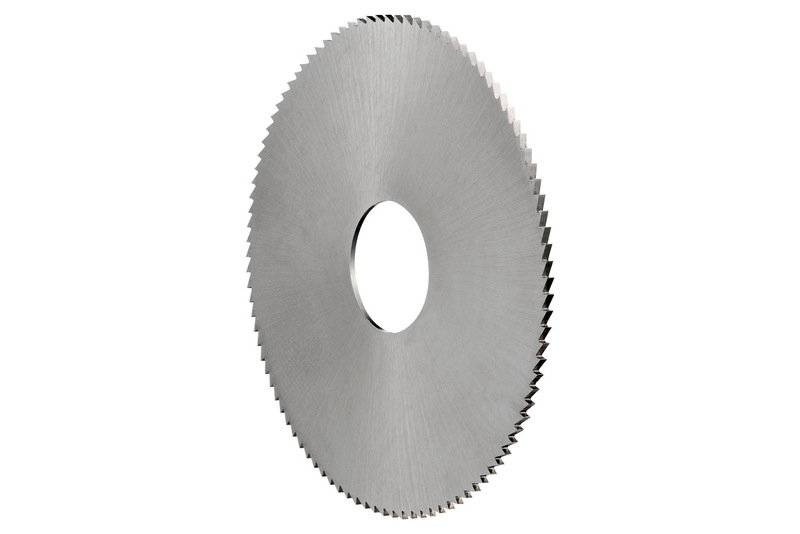

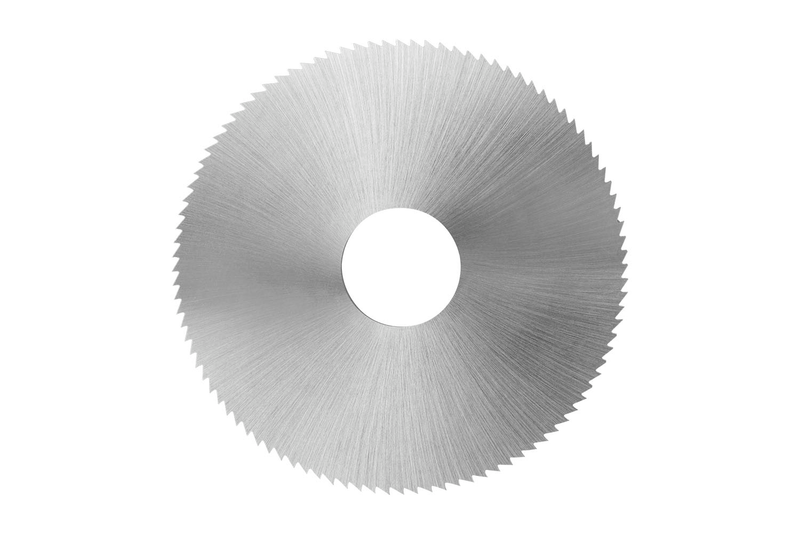

Scie à refendre en métal à pas fin et 80 dents, diamètre 32 mm avec 0,3 mm de largeur de coupe, selon la norme DIN 1837 avec un alésage de 8 mm, HSS avec finition brillante et angle de coupe de 5° pour le sciage de tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74732.0X.3
GradeLumineux
Product Number5985688
Product FamilyD747
Dimensions
Cutting Diameter — in (DC)1.2598"
Cutting Diameter — mm (DC)32.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)80
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number284414
EAN7320760284414
File Type Download
D74732.0X.3 — Line Drawing PDF Download
