D74732.0X.4
D74732.0X.4
D74732.0X.4

D74732.0X.4

UGC DOR5985692
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.69 CAD - $32.69 CAD
$32.69 CAD
$32.69 CAD - $32.69 CAD
$32.69 CAD

Vendu en lots de : 5

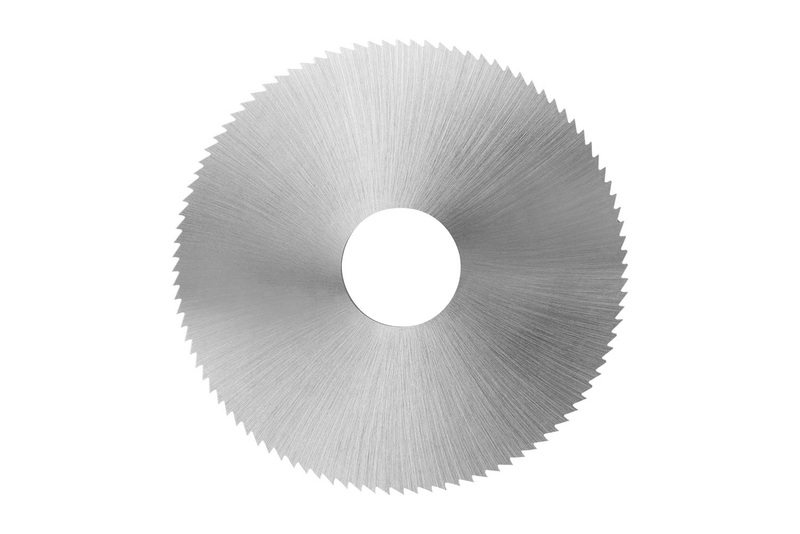

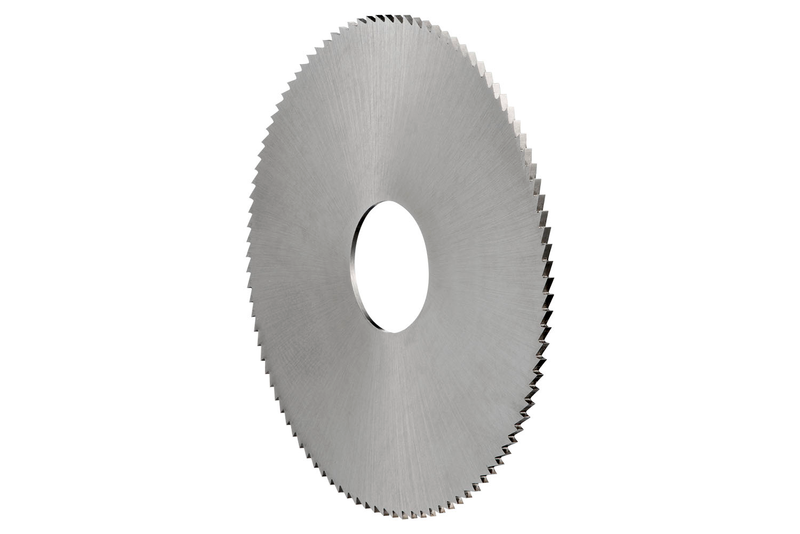

Fraise-scie à métaux à pas fin et 80 dents, diamètre 32mm avec une largeur de coupe de 0.4mm, selon la norme DIN 1837 avec un alésage de 8mm, HSS finition brillante, et angle de coupe de 5° pour le tronçonnage, le sciage de tubes et le rainurage peu profond dans l'acier et l'acier moulé, la fonte et les métaux non ferreux

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D74732.0X.4
GradeLumineux
Product Number5985692
Product FamilyD747
Dimensions
Cutting Diameter — in (DC)1.2598"
Cutting Diameter — mm (DC)32.0 mm
Connection Dia. — in (DCON)0.315"
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)80
Tool Information
StandardDIN 1837
Reference Numbers
EDP Number284421
EAN7320760284421
File Type Download
D74732.0X.4 — Line Drawing PDF Download
