D763100.0X2.0
D763100.0X2.0
D763100.0X2.0

D763100.0X2.0

UGC DOR5985695
par Dormer Pramet
Primary Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$632.00 CAD - $632.00 CAD
$632.00 CAD
$632.00 CAD - $632.00 CAD
$632.00 CAD

Vendu en lots de : 1

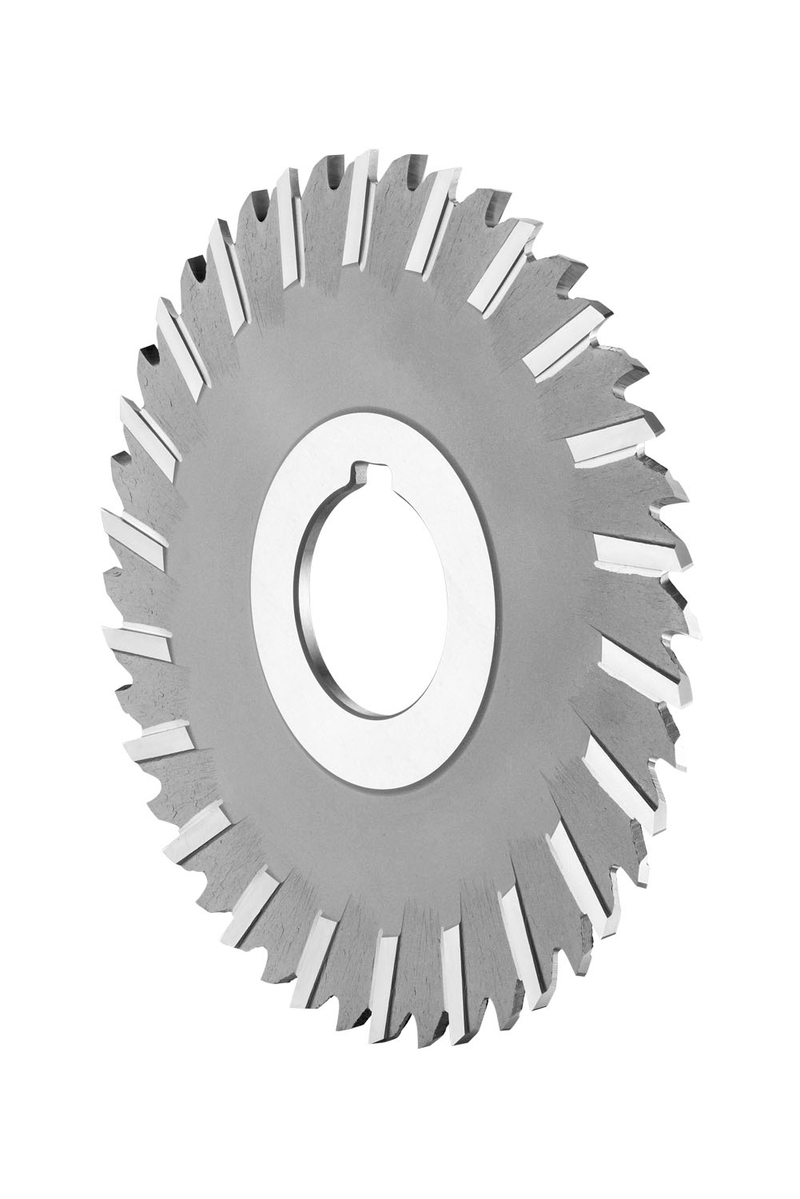

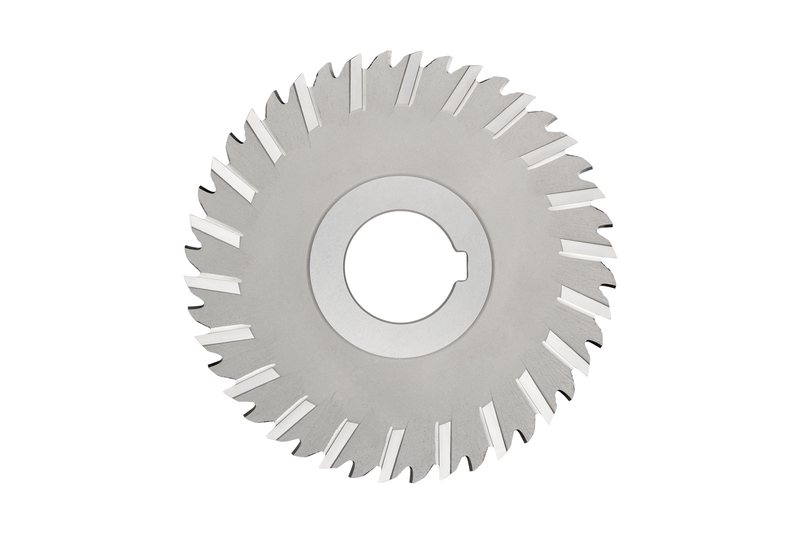

Fraise-scie à 44 dents, diamètre 100mm, épaisseur 2mm, selon la norme DIN 885 A avec alésage 32mm et clavette, HSS-E à base de cobalt finition brillante, hélice 15° et angle de coupe 10° pour le sciage, le rainurage peu profond et le rainurage profond dans l'acier et l'acier moulé, l'acier inoxydable, la fonte, les métaux non ferreux et les alliages à haute température

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)D763100.0X2.0
GradeLumineux
Product Number5985695
Product FamilyD763
Dimensions
Cutting Diameter — in (DC)3.937"
Cutting Diameter — mm (DC)100.0 mm
Connection Dia. — in (DCON)1.2598"
Connection Dia. — mm (DCON)32.0 mm
Number of Flutes (NOF)44
Helix Angle (FHA)15.0°
Tool Information
StandardDIN 885 A
Reference Numbers
EDP Number78198
EAN7320760078198
File Type Download

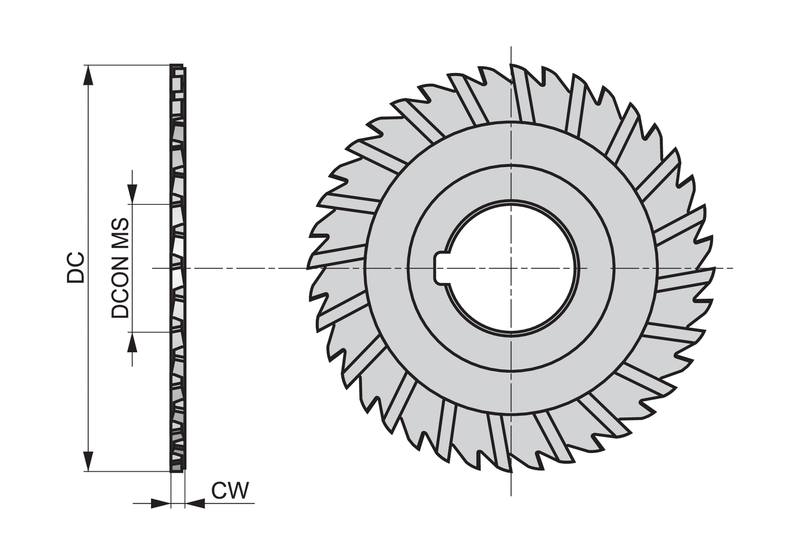

D763100.0X2.0 — Line Drawing PDF Download
